P5B-MX

    Product Image

    Valuable Intel uATX solution with Intel® Quad-core Processor Ready

    - Intel® LGA775 Socket
    - Intel® Core™2 Quad / Core™2 Extreme / Core™2 Duo Ready
    - Intel® 946GZ + ICH7 chipset
    - Intel® Graphics Media Accelerator 3000 integrated
    - FSB 1066(O.C.)/800/533MHz
    - Dual Channel DDR2 667/533
    - 1 x PCI Express x16 + 1 x PCI Express x1 + 2 x PCI
    - Compliant with RoHS
      Product Image
      Valuable Intel uATX solution with Intel® Quad-core Processor Ready

      CPU and Chipset Features

      LGA775 Intel® Quad-core Processor Ready
      This motherboard supports the latest Intel® Quad-core processors in LGA775 package. It´s excellent for multi-tasking, multi-media and enthusiastic gamers with 1066/800 MHz FSB. Intel® Quad-core is one of the most powerful CPU in the world.



      LGA775 Intel® Core™2 Processor Ready
      This motherboard supports the latest Intel® Core™2 processors in LGA775 package. With new Intel® Core™ microarchitecture technology and 1066 / 800 / 533 MHz FSB, Intel® Core™2 processor is one of the most powerful and energy efficient CPU in the world.



      Intel® 946GZ Chipset
      The Intel® 946GZ Express Chipset provides innovative capabilities for everyday computing. It supports PCI Express x16 graphics card interface and dual-channel DDR2 memory, and Intel´ s dual-core CPU for fast multi-tasking. With the integrated graphics engine Intel® Graphics Media Accelerator 3000, the Intel 946GZ delivers great 3D graphics and compelling video experience..



      ASUS EZ DIY

      CrashFree BIOS 2
      The CrashFree BIOS2 feature now includes the BIOS auto-recovery function in a support CD. Users can reboot their system through the support CD when a bootable disk is not available, and go through the simple BIOS auto-recovery process. ASUS motherboards now enable users to enjoy this protection feature without the need to pay for an optional ROM.

      EZ Flash
      With ASUS EZ Flash, you can update BIOS directly from the BIOS setup menu. No more DOS-based flash utility and bootable diskette required.

      Interface Features

      High Definition Audio
      Enjoy high-end sound system on your PC! The onboard 6-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output and jack-sensing feature.

      S/PDIF-out
      This motherboard provides convenient connectivity to external home theater audio systems via a coaxial S/PDIF-out (SONY-PHILIPS Digital Interface) jack. It allows digital audio transferwithout converting to analog format and keeps the best signal quality.

      Gigabit LAN
      Attansic Gb LAN controller delivers transfer speeds up to ten times faster than conventional 10/100 Ethernet connections. Gigabit LAN is the networking standard for the early future and is ideal for handling large amounts of data such as video, audio, and voice.

      PCI Express Architecture
      PCI Express is the latest I/O interconnect technology that will replace the existing PCI. With a bus bandwidth 4 times higher than that of AGP 8X interface, PCI Express x16 bus performs much better than AGP 8X in applications such as 3D gaming. PCI Express x1 also outperforms PCI interface with its exceptional high bandwidth up to 500MB/s. The high speed PCI Express interface creates new usages on desktop PCs e.g., Gigabit LAN, 1394b, and high-speed RAID systems.

      Other Innovative Features

      C.P.R. (CPU Parameter Recall)
      Protect your BIOS data when overclocking
      When the system hangs due to overclocking failure, there is no need to open the case to clear CMOS data. Just simply restart the system, the BIOS would show the previous setting and then users can amend the CPU setting again.

      MyLogo2
      Personalize your system with customizable boot logo
      You can convert your favorite photo into a 256-color boot logo for a more colorful and vivid image on your screen.
      RoHS


      GreenASUS
      The motherboard and its packaging comply with the European Union´s Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers´ health while minimizing the impact on the environment.

      Model Number : N50 >
      • CPU
        LGA775 socket for Intel® Core™2 Quad / Core™2 Extreme / Core™2 Duo / Pentium® D / Pentium® 4 / Celeron® D Processors
        Compatible with Intel 05B/05A/06 processors
        Intel Hyper-Threading Technology ready
        * Refer to www.asus.com for Intel CPU support list
      • Chipset
        Northbridge: Intel® 946GZ
        Sourthbridge: Intel® ICH7
      • Front Side Bus
        1066(O.C.) / 800 / 533 MHz
      • Memory
        2 x DIMM, max. 4GB, DDR2 667 / 533 MHz, non-ECC, un-buffered memory
        Dual channel memory architecture
        * Refer to www.asus.com or user manual for Memory QVL (Qualify Vendor List)
        **When installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.
      • Expansion Slots
        1 x PCI-E x16
        1 x PCI-E x1
        2 x PCI
      • VGA
        Intel® Graphics Media Accelerator 3000 (Intel® GMA 3000) integrated
        High Definition Video Processing with max. resolutions 2048 x 1536 bpp(@ 75Hz)
        Max. shared memory of 256MB
        Support Microsoft® DX 9, OpenGL 1.4
      • Storage
        Southbridge
        - 1 x UltraDMA 100/66/33
        - 4 x SATA 3.0 Gb/s ports
      • LAN
        Attansic® L1 PCI-E Gigabit LAN controller
      • Audio
        Realtek® ALC883 6-channel High Definition Audio CODEC
        - Support Jack-Sensing, and Enumeration
        - Coaxial S/PDIF out port onboard
      • USB
        8 x USB 2.0 ports (4 ports at mid-board, 4 ports at back panel)
      • ASUS Features
        ASUS EZ DIY:
        - ASUS CrashFree BIOS 2
        - ASUS EZ Flash
        Other feature:
        - ASUS Q-fan
        - ASUS MyLogo 2
      • Overclocking Features
        SFS (Stepless Frequency Selection): allowing FSB tuning from 133MHz up to 400MHz at 1MHz increment
        ASUS C.P.R.(CPU Parameter Recall)

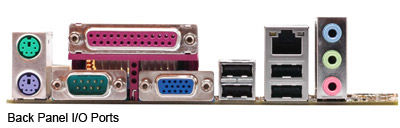

      • Back Panel I/O Ports
        1 x PS/2 Keyboard
        1 x PS/2 Mouse
        1 x Serial port
        1 x Parallel port
        1 x VGA port
        4 x USB 2.0/1.1
        1 x RJ45 port
        6-Channel Audio I/O
      • Internal I/O Connectors
        1 x IDE connector for two devices
        4 x SATA connectors
        1 x Floppy disk drive connector
        Front panel audio connector
        1 x S/PDIF Out Header
        Chassis Intrusion connector
        1 x CPU Fan connector
        1 x Chassis Fan connector
        System panel connector
        CD audio in
        1 x USB connectors support additional 2 USB ports
        1 x 4-pin ATX 12V Power connector
        24-pin ATX Power connector
      • BIOS
        4 Mb Flash ROM, AMI BIOS, PnP, DMI, WfM2.0, SM BIOS 2.4, ACPI 2.0a
      • Manageability
        WfM 2.0, DMI, WOL by PME, WOR by PME, PXE, Chassis Intrusion
      • O/S Compatibility
        Windows Vista/XP/2000
      • Accessories
        1 x UltraDMA 133/100/66 cable
        1 x FDD cable
        1 x SATA cable
        1 x SATA power cable
        I/O Shield
        User's manual
      • Support Disc
        Drivers
        ASUS PC Probe II
        ASUS Update
        Anti-virus software (OEM version)
      • Form Factor
        uATX Form Factor, 9.6" x 8" (24.5cm x 20.3cm)
