P8Z68 Series Highlights
USB 3.0 Boost
Faster USB 3.0 Transmission with UASP
New ASUS USB 3.0 Boost technology supports UASP (USB Attached SCSI Protocol), the latest USB 3.0 standard. With USB 3.0 Boost technology, a USB device's transmission speed is significantly increased up to 170%, adding to an already impressive fast USB 3.0 transfer speed. ASUS software automatically accelerates data speeds for compatible USB 3.0 peripherals without the need for any user interaction.
> Click Here to Learn More
- World’s 1st USB 3.0 UASP Support – 170% faster instantly
- Complete USB 3.0 Solution – Performance boost for most USB devices
- Simple Plug & Boost – Auto detection design ensures best performance always

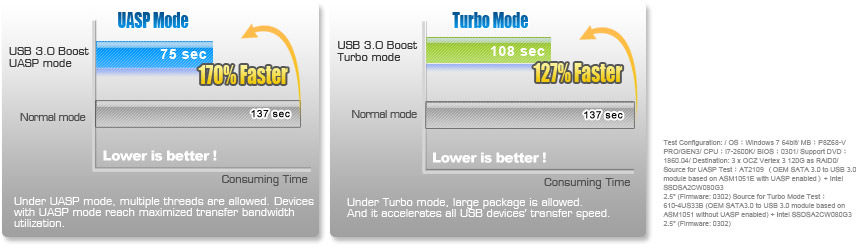

When transferring a 13.8 GB movie, USB 3.0 Boost from ASUS lands an overall better-performing PC. Check out these benchmarks for more info:
UEFI BIOS (EZ Mode)
Flexible & Easy BIOS Interface
Exclusive to ASUS motherboards, its UEFI (Unified Extensible Firmware Interface) is the first ever mouse-controlled graphical BIOS interface designed with dual selectable modes. It delivers a user-friendly interface that goes beyond traditional keyboard-only BIOS controls to enable more flexible and convenient input with quick scrolling. Users can easily navigate the UEFI BIOS with the smoothness of their operating system. Quick and simple overclocking and setup sharing is facilitated by the F12 hotkey BIOS snapshot feature. The exclusive EZ Mode displays frequently-accessed setup info, while the Advanced Mode is for experienced performance enthusiasts that demand far more intricate system control, including detailed DRAM information.
Supports Hard Drives over 2.2TB
ASUS UEFI BIOS natively supports hard drives larger than 2.2TB in 64-bit, with full storage space utilization helping deliver far more exciting computing than traditional BIOS versions.
Exclusive ASUS Interface
- EZ Mode - gives easy access to selectable, optimized system modes, clear system info display and drag and drop boot prioritizing
- Advanced Mode - for experienced performance enthusiasts that demand intricate system settings
Universal Switchable Graphics Technology
LucidLogix® Virtu is designed for the Intel® Sandy Bridge platform's powerful integrated graphics. Its GPU virtualization dynamically assigns tasks to the best available graphics resources based on power, performance and system load on Windows® 7 based PCs. It allows users to fully utilize the unique capabilities of advanced Sandy Bridge multimedia features alongside the high end 3D rendering performance provided by installed graphics cards. When no discrete graphics are needed, the graphics card is put in idle mode to lower utilization, heat, fan speed and power draw down to near zero, making the system more environmentally-friendly. For users with diverse needs, LucidLogix® Virtu GPU virtualization provides great flexibility and efficiency.
Universal Switchable Graphics
LucidLogix® Virtu's GPU virtualization technology assigns tasks to the best available GPU, allowing dynamic graphics switching between integrated graphics and NVIDIA® or AMD graphics cards.
3X Faster Video Conversion
With switchable graphics, all ASUS P8Z68 Series motherboards leverage the transcoding power of Sandy Bridge, allowing users to enjoy three times faster video conversion with Intel® Quick Sync Video technology.
Intel® Smart Response Technology
SSD Speed with HDD Capacity
Intel® Smart Response Technology boosts overall system performance. It uses an installed fast SSD (min 18.6GB available capacity) as a cache for frequently accessed data. Harness the combination of SSD-like performance and response with hard drive capacity, that's 4X faster than a HDD-only system.
* Support Intel® Smart Response Technology on 2nd generation Intel® Core™ processor family
Dual Intelligent Processors 2 with DIGI+ VRM
Digital Power Design: The New Standard
The world’s first Dual Intelligent Processors from ASUS pioneered the use of two onboard chips - EPU (Energy Processing Unit) and TPU (TurboV Processing Unit). The new generation of Dual Intelligent Processors 2 with DIGI+ VRM provides precise Vcore PWM, integrated graphics voltages and frequency module adjustments with minimal power loss through BIOS tuning and an exclusive user interface to increase the board’s overclocking range while performance reaches its full potential. ASUS DIGI+ VRM digital power design empowers users with superior flexibility and perfect precision to ensure optimized performance, extreme system stability and greater power efficiency.
Herald the Arrival of a New Digital Power Design Era
VRM, or voltage regulator modules, are considered among the most essential motherboard design components. They supply the voltage demanded by the CPU, and a good VRM must intelligently detect actual CPU power draw to provide precise power accordingly. ASUS DIGI+ VRM is an innovative, industry-leading technology that fully integrates Intel® VRD12 specifications on a native level, greatly enhancing power to go far beyond the limits of analog designs.
Advantages of ASUS DIGI+ VRM Digital Power Design
Unlike previous VRD versions, Intel® VRD12 uses digital signals (SVID). To ensure perfect power delivery, ASUS specially designed DIGI+ VRM to sync completely with this new technology.
- Faster sensing and response: ASUS DIGI+ VRM acts as a digital controller to perfectly match digital power signal (SVID) requests from the CPU, eliminating digital-to-analog conversion lag.

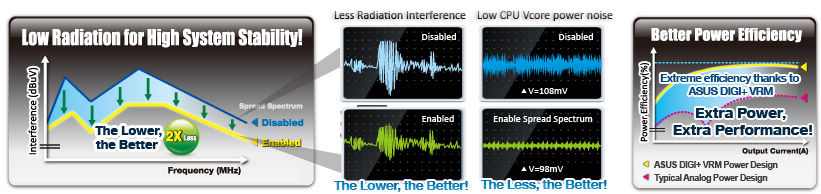

- Better cooling: exclusive dual driver and MOS design doubles the heat dissipation area with expanded cooling surfaces for improved thermal performance. Spacing components out over a wider area speeds up cooling to enhance reliability and stability.
- 2X CPU power supply: the same exclusive dual driver and MOS design also provides twice the CPU power supply with two complete power stages. This results in far greater phase load tolerances, so the CPU never has to wait for power to arrive, increasing performance and overclocking potential.
Active Cooling for Extreme Durability- Super Cool VRM
ASUS DIGI+ VRM delivers intelligent power management to balance loadings for each power phase by detecting VRM temperatures to ensure longer component lifespan and better cooling.
ASUS Exclusive Features
Go to the Limit with iGPU Level Up!
GPU Boost accelerates the integrated GPU for extreme graphics performance. The user-friendly interface facilitates flexible frequency adjustments. It easily delivers stable system-level upgrades for every use.
Diverse BT Enjoyment, New Technology Lifestyle

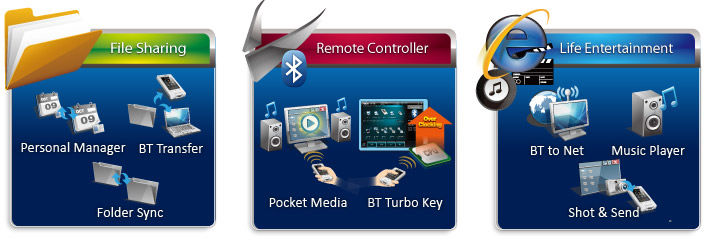

Onboard Bluetooth wireless design enables smart connectivity to Bluetooth devices with no additional adapter. ASUS BT GO! comes with 7 special functions that offer a significant breakthrough in Bluetooth evolution, including Folder Sync, BT Transfer, BT Turbo Remote, BT-to-Net, Music Player, Shot and Send, and Personal Manager. All are accessible through the exclusive, user-friendly ASUS interface.
* The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by ASUSTeK Computer Inc. is under license. Other trademarks and trade names are those of their respective owners
Intel® LAN Support
P8Z68-V features Intel® Gigabit LAN which complies with 802.3az Energy Efficient Ethernet (EEE) standard and reduces power consumption during normal operation and enhances faster transfer speed through dual interconnection between the Integrated LAN controller and Physical Layer (PHY).
CPU, Chipset and Graphics features
LGA1155 socket for Intel® Second Generation Core™ i7/ Core™ i5/ Core™ i3 Processors
This motherboard supports the latest Intel® second generation Core™ i7/Core™ i5/Core™ i3 processors in the LGA1155 package, with memory and PCI Express controllers integrated to support 2-channel (4 DIMM) DDR3 memory and 16 PCI Express 2.0 lanes. This provides great graphics performance. Intel® second generation Core™ i7/Core™ i5/Core™ i3 processors are among the most powerful and energy efficient CPUs in the world.
Intel® Z68 Express Chipset
The Intel® Z68 Express Chipset is a single-chipset design to support socket 1155 Intel® second generation Core™ i7/Core™ i5/Core™ i3 processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, Z68 chipset provides 2 SATA 6Gb/s and 4 SATA 3Gb/s ports for faster data retrieval at double the bandwidth of current bus systems. Moreover, Intel® Z68 Express Chipset also supports iGPU function, letting users enjoy the latest Intel integrated graphic performance.
GreenASUS and ErP Ready
The motherboard is European Union´s Energy-related Products (ErP) ready, and ErP requires products to meet certain energy efficiency requirements in regards to energy consumptions. This is in line with ASUS vision of creating environment-friendly and energy-efficient products through product design and innovation to reduce carbon footprint of the product and thus mitigate environmental impacts.
P8Z68-V Product Overview
Other ASUS Features
Achieve extreme yet stable overclocking results automatically
Adjust system performance parameters with just a few clicks away
AI Suite II
One-stop access to innovative ASUS features
Enjoy full HD 1080p multimedia home-theater entertainment
Built-in variety of useful profiles offer flexible controls of fan speed to achieve a quiet and cool environment.
Fanless Heatsink Design
Stylish heatsink features 0-dB thermal solution that offers a noiseless PC environment.
ASUS Q-Design enhances your DIY experience!
Any memory is A-OK!
