RT-N53

    Product Image

    Dual-Band Wireless-N600 Router

    *ASUSWRT Dashboard UI for Easy Setup, Signal Monitoring, and Network Application Control
    • Concurrent Dual Band - Two 300Mbps Wireless-N networks at one time
    • Guest Network Access - Four separated wireless networks on the 2.4GHz band with customized security and access restrictions
    • Easy Universal Repeater - Extend your Parent AP in the fastest and most intuitive way.
    • Clever Wall-mount Design
    • Parental Control - Control your kids' computer time
    Product Image

    The Black Diamond Series RT-N53 router brings striking design together with impressive simultaneous dual-band performance - the 300 + 300Mbps speed combines the usability of the 2.4GHz band with the stability of the 5GHz band. Delivering fast connection speeds in both wired and wireless connection, the RT-N53 is ideal for large home environments to enjoy seamless HD video streaming, online gaming and internet surfing all at the same time. The straightforward QIS (Quick Internet Setup) web-based wizard ensures you can get to the Internet without hassle, regardless of operating system. The unique EZ QoS (Quality of Service) can easily allocate bandwidth according to their individual needs by simply clicking on the buttons. Multiple SSID connections helps you create 3 more separate and limitable access networks for different roles.

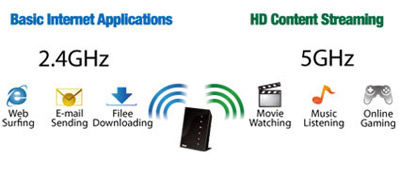

    Dual-band for Lag-free Entertainment

    Double your wireless performance and bandwidth with simultaneous 2.4GHz and 5GHz bands, with speeds up to 300Mbps concurrently. While basic internet applications like browsing or file downloading can occur in 2.4GHz, wireless HD content streaming takes place in the 5GHz band at the same time, so both achieve optimized speeds and you get to enjoy smooth, buffer-free HD content streaming.

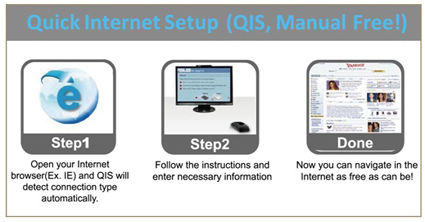

    Plug-n-surf and Hassle-free Management

    ASUS QIS and EZ UI offer you an intuitive router setup without reading manuals. Open your browser, then the QIS wizard will guide you to quickly connect to the Internet, regardless of what OS you use. The intuitive user interface provides a graphical network map, making wireless setup, QoS and client management clear and simple.

    4-Network-in-1: Provide Extra Networks

    The RT-N53 can provide 4 wireless networks over the 2.4GHz band, which provides separated connection priorities and access rights. For example, High priority and both network (private and Internet) access are perfect for managers, while middle priority and private network work great for staff, and low priority and internet access only for friends and guests. Protect computers from unauthorized access, hacking and virus attacks.

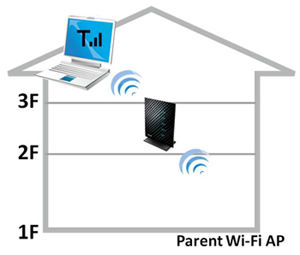

    Universal Repeater - Extend your signal in the simplest way

    With ASUS Universal repeater support, you can use the RT-N53 way to repeat your wireless signal to far away locations from the central access point. Scan for the Wi-Fi signal and link to the SSID you want to repeat.
    *Please take note that all repeaters, including this Universal Wireless Repeater mode, will sacrifice half of the bandwidth available from the primary router for clients wirelessly connected to the repeater. Currently, the RT-N53 only supports the 2.4GHz repeater setting.

    Clever Wall-mount design



    Parental Control

    • Control your kids' computer time


    Model Number : N50 >
    • Network Standard
      IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IPv4
    • Product Segment
      N600 advanced performance; 300+300Mbps
    • Data Rate
      802.11a : 6,9,12,18,24,36,48,54Mbps
      802.11b : 1, 2, 5.5, 11Mbps
      802.11g : 6,9,12,18,24,36,48,54Mbps
      802.11n : up to 300Mbps
    • Antenna
      Internal antenna x 2
    • Operating Frequency
      2.4GHz/5GHz
    • Encryption
      64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise, WPA2-Enterprise, WPS support
    • Firewall & Access Control
      Logging: Dropped packet, security event, Syslog
      Firewall (Router mode): NAT and SPI (Stateful Packet Inspection), intrusion detection including logging
      Filtering (Router mode): Port, IP packet, URL keyword, MAC address
    • VPN Support
      IPSec Pass-Throuth
      PPTP Pass-Through
      L2TP Pass-Through
    • WAN Connection Type
      Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP
    • Ports
      4 x RJ45 for 10/100 BaseT for LAN, 1 x RJ45 for 10/100 BaseT for WAN, Support Ethernet and 802.3 with max. bit rate 10/100 Mbps and auto cross-over function(MDI-X)
    • Button
      WPS Button, Reset Button, Power Button
    • LED Indicator
      LAN x 4
      WAN x 1
      AIR x 2
    • Power Supply
      AC Input : 110V~240V(50~60Hz)
      DC Output : 12 V with max. 1 A current
    • OS Support
      Windows® 8 , 32bit/64bit
      Windows® 7 , 32bit/64bit
      Windows® Vista , 32bit/64bit
      Windows® XP , 32bit/64bit
      Mac OS X
      Linux
    • Dimensions
      172 x 145 x 60 mm (WxDxH)
    • Weight
      330 g
