Supreme micro-ATX C232 with 5X Protection II for dependable stability, LED-illuminated audio shielding and DDR4 support.
  • LGA1151 socket for Intel® Xeon® E3-1200 v5 processors and 6th Generation Intel® Core™ / Pentium® / Celeron® processors
  • Dual-channel DDR4 2133MHz support
  • 5X Protection II – Advanced hardware safeguards for all-round protection
  • Epic gaming audio with LED-illuminated shielding
  • DDR4 memory compatibility
  • Easy PC DIY with safe motherboard-mounting design
OP product mainImage
Dependable Stability
Superb Performance
Gaming Audio
Easy PC DIY

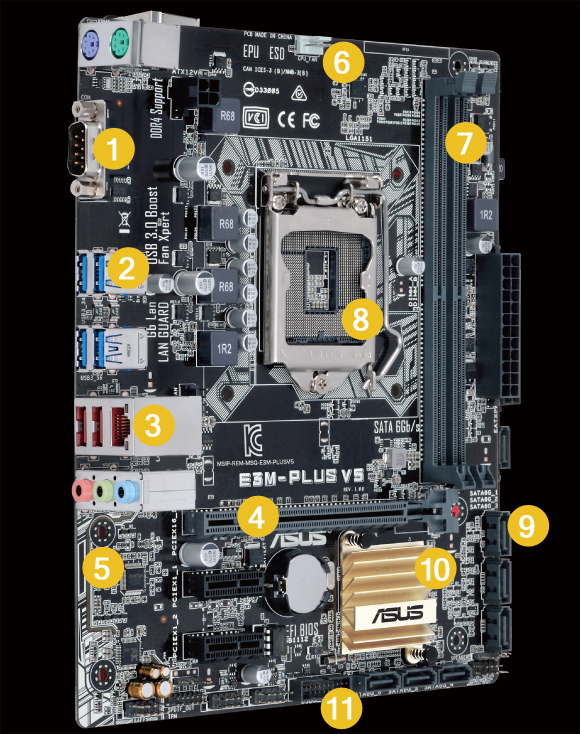

Front USB 3.0
1 COM Port
2 USB 3.0 Ports
3 LAN & USB 2.0
4 PCI Express 3.0/2.0 Slot
5

Gaming Audio

  • LED-illuminated design
  • Audio Shielding
  • Dedicated audio PCB layers
  • Premium Japanese-made audio capacitors
6DIGI+VRM & EPU
7DDR4 2133 Support
8Support 14nm CPU
Intel® LGA 1151 Socket
9SATA 6Gb/s Ports
10Intel® C232 Chipset
112 x Front USB 3.0
Dependable Stability
Surge-ProtectedNetworking
ESD Guards
StablePower Supply
OvercurrentProtection
Stainless-SteelBack I/O
Advanced Hardware Safeguards

Industry-leading 5X Protection II employs the finest components, excellent circuit design, and exacting standards to guarantee quality and long-term durability of your motherboard with all-round protection. For you, that means exceptional protection and stability for your build — the result of decades of engineering experience from the world's leading motherboard brand.

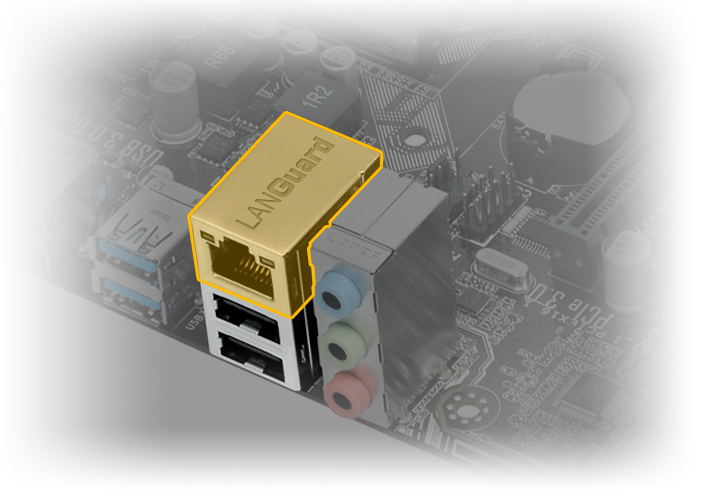

LANGuard

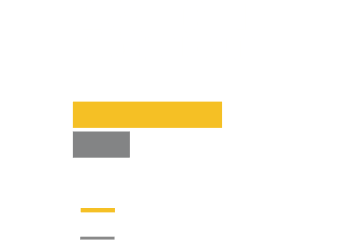

Pumped-up throughput. 2.5X higher surge tolerance.
ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors ensuring a more reliable connection and better throughput, plus electrostatically-guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges.
* ESD result is undertaken by individual LANGuard

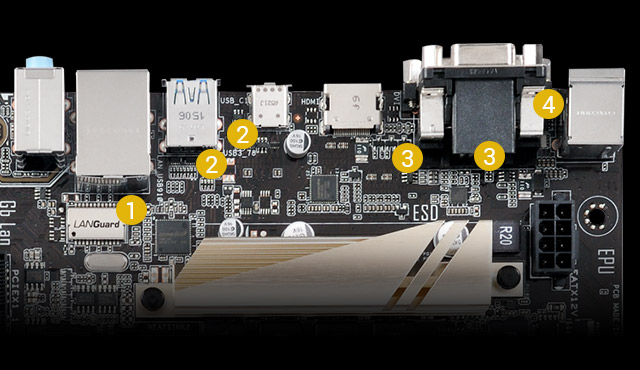

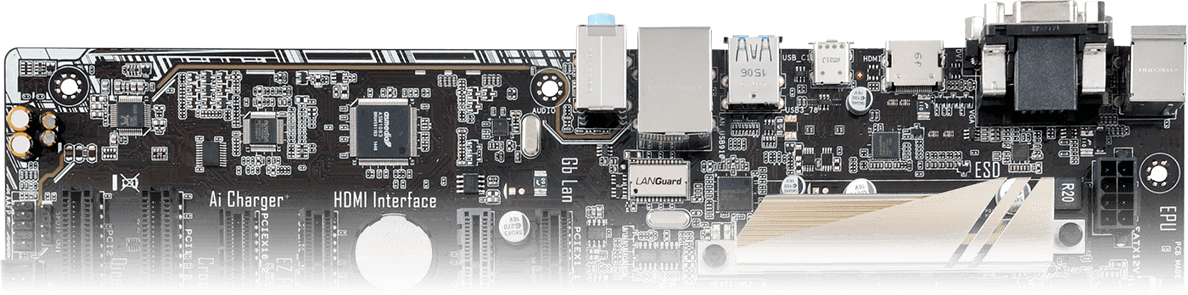

ESD Guards
Electrostatic discharge (ESD) can happen suddenly, and its damaging effects are easily underestimated. ASUS ESD Guards are tested to very high standards, capable of up to +/- 10kV for air discharge and +/-6kV for contact discharge. We employ an active protective circuit design to guard your system against electrostatic interference and damage, providing greater component longevity.
1
LAN port
ESD TVS diode protection on the LAN circuit.
2
USB connectors
TVS diodes for surface-mount and dual-inline packages.
3
VGA connectors
Additional on-circuit ESD TVS diodes to protect D-Sub functionality.
4
Keyboard and mouse connectors
Additional on-circuit ESD transient-voltage-suppression (TVS) diodes.

DRAM Overcurrent Protection

Short-circuit damage prevention
Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of both your system and connected devices.

DIGI+ VRM

Precision control for stable power
ASUS-exclusive DIGI+ VRM intelligently delivers power to the processor based on real-time demands, reducing energy waste and improving system stability.

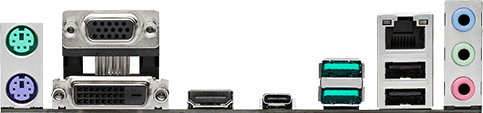

Stainless-Steel Back I/O

3X corrosion-resistance for greater durability
Corrosion-resistant stainless steel back I/O panels bonded with chromium oxide have a lifespan that's three times (3X) longer than ordinary panels.
Superb Performance

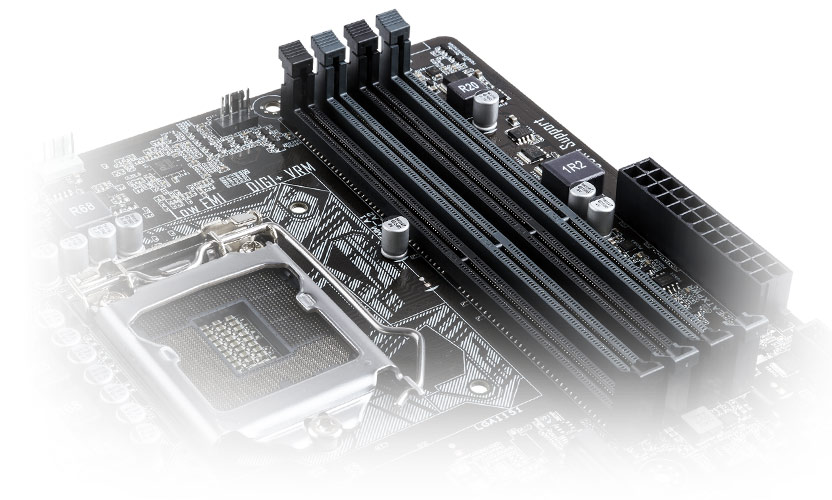

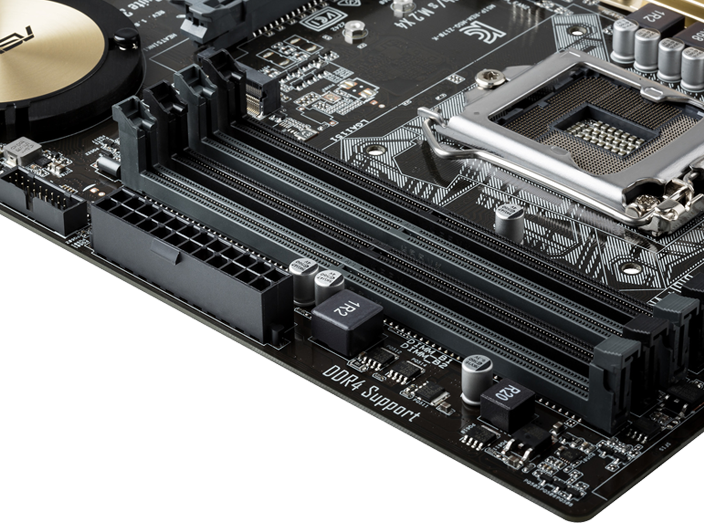

DDR4 Support

Make your memory go faster

With DDR4, you'll accelerate memory frequencies up to an incredible to 2133MHz! And ASUS works with almost every DDR4 memory vendor, so you're assured the best compatibility.

Enjoy the DDR4 benefits with ASUS 100 series. (DDR4 vs DDR3)

2X

faster write
read speeds

2X

larger
capacity

20%

lower power
consumption

Media-acclaimed UEFI BIOS
The smoothest, slickest mouse-controlled graphical BIOS has been improved to make it even more appealing. Whether you're a PC novice or a seasoned overclocker, the EZ and Advanced Modes help you find your way, quickly and easily.

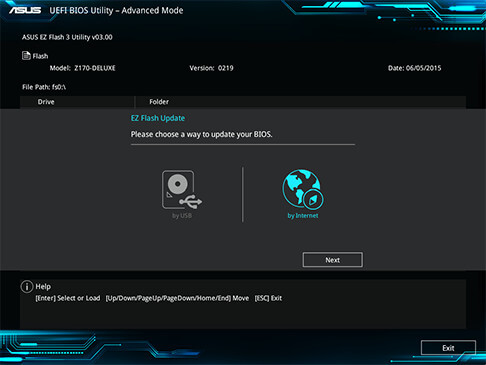

EZ Flash 3
Update the latest BIOS via the internet, and from within the BIOS.

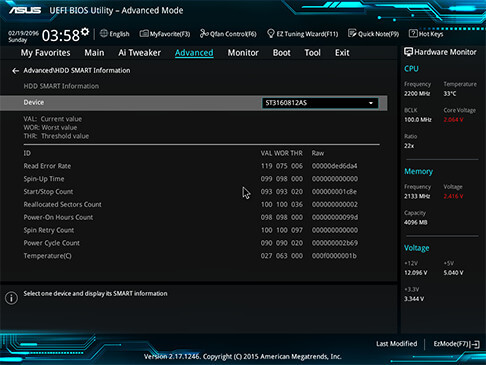

S.M.A.R.T
Check up your storages devices' Self-Monitoring, Analysis, and Reporting Technology (S.M.A.R.T) logs to gauge reliability, and even determine if they're about to fail.

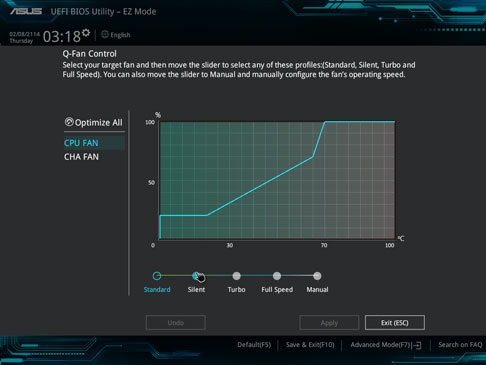

Q-Fan Control
You can configure the fan's operating speed manually, or use the easy pre-configured fan profiles to select Standard, Silent, Turbo, or Full Speed modes!
My Favorites
Quickly find tuning options and add preferred tools to the list.
EZ Mode
  • Intuitive Graphical Fan Control: Fine-tune individual fans simply by dragging a curve with the mouse.
  • EZ XMP: Improve your DRAM performance with a click.
  • SATA Information: View SATA port details for easy device recognition.
  • Fast Clock Adjustment: Use mouse controls to change the time and date.

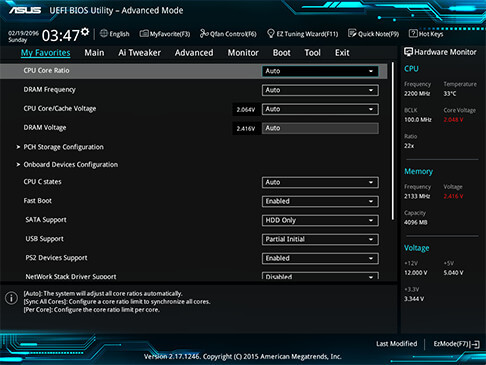

Advanced Mode
  • Last Modified Log: Track last change and save preferred profiles onto a USB drive.
  • SATA Port Renaming: Rename SATA ports for easy identification.
Ultrafast Transfer Speed

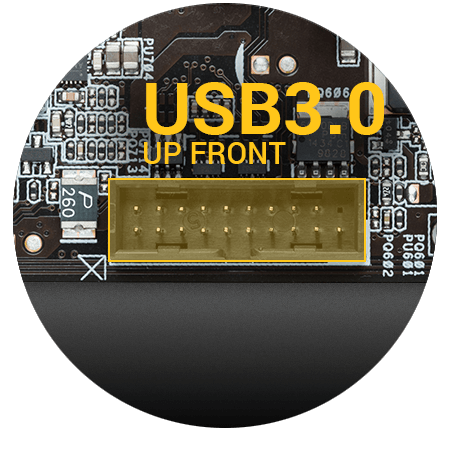

Instant front-panel USB 3.0 Experience
We've put USB 3.0 right where you need it — two super-speed ports on the front panel. Experience data-transfer speeds up to 10X faster than USB 2.0 with instant plug-and-play connectivity, so no more back-breaking contortions in the hunt for hard-to-reach rear ports!

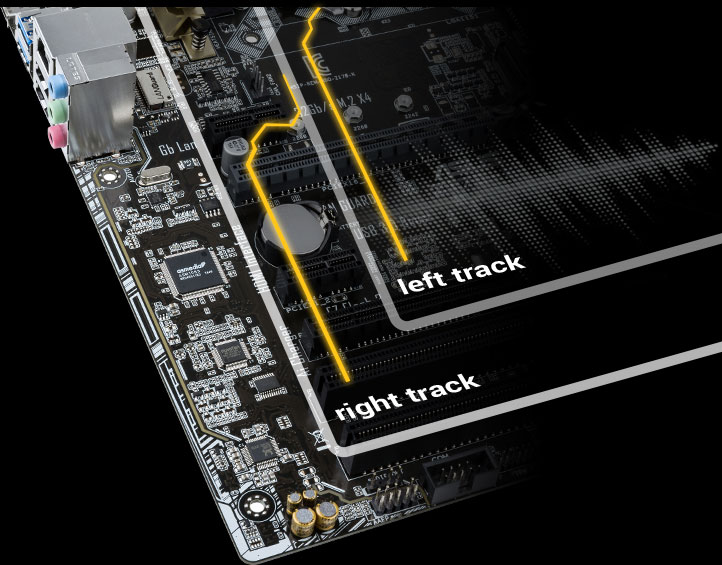

Gaming Audio

Gear up! Win the battlefield

Beautiful LED-illuminated trace paths brighten your build and highlight noise-isolated, precision-shielded, interference-eliminated onboard audio like you've never before experienced!

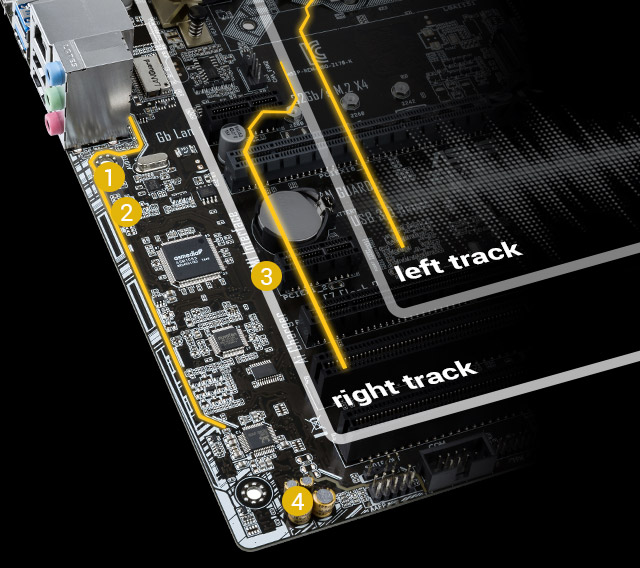

1
LED-illuminated design
Brighten up your build with the gorgeous illuminated audio trace path.
2
Noise Isolation
Audio shielding ensures precision analog/digital separation and greatly reduced multi-lateral interference.
3 Separate layers for left and right tracks ensures both channels deliver consistent, equal quality.
4
Audio Enjoyment
Premium Japanese audio capacitors provide warm, natural, and immersive sound with exceptional clarity and fidelity.
Easy PC DIY

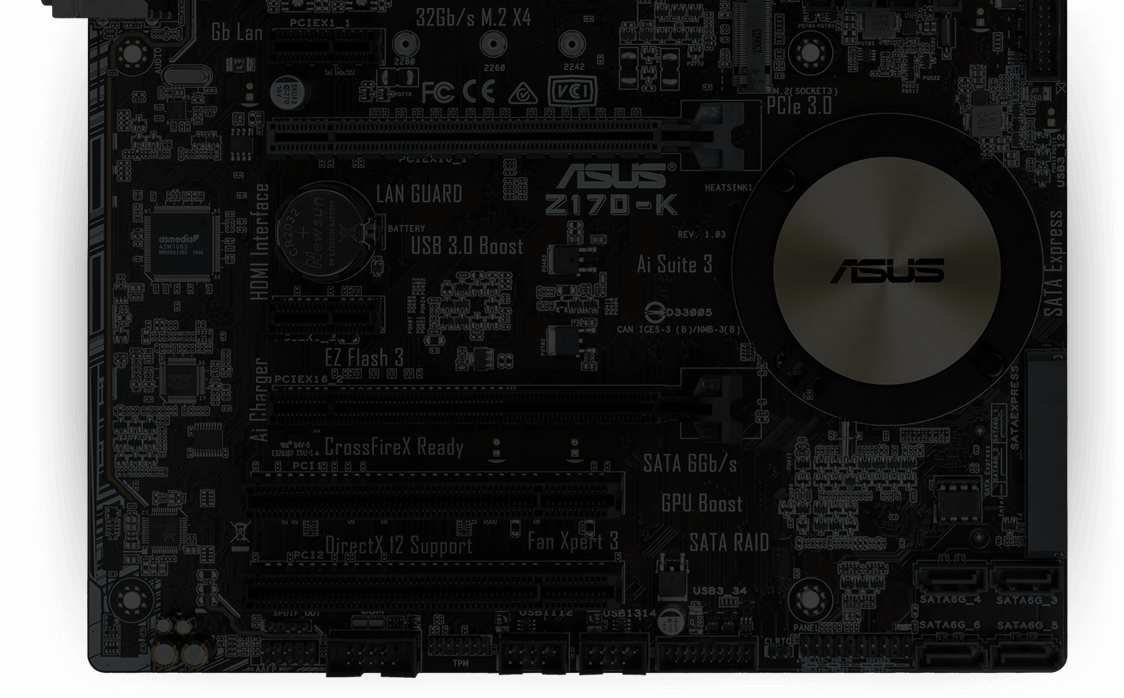

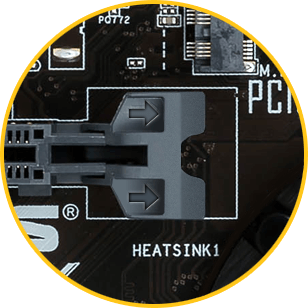

Q-Slot
Effortless PCI Express component removal
The large winged clip is easy to reach and easy to operate. Just press the Q-Slot clip lightly, and graphics card just pop out. Installing or removing even the biggest graphics cards is no sweat!

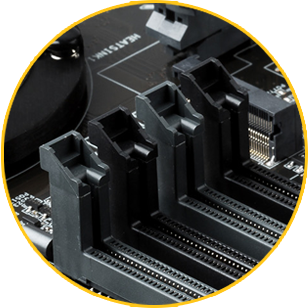

Q-DIMM
Easy memory removal
Even if you work with a smaller case, just push down on the one-sided clip and push or pull RAM modules in or out – couldn't be simpler!
Optimized Cooling

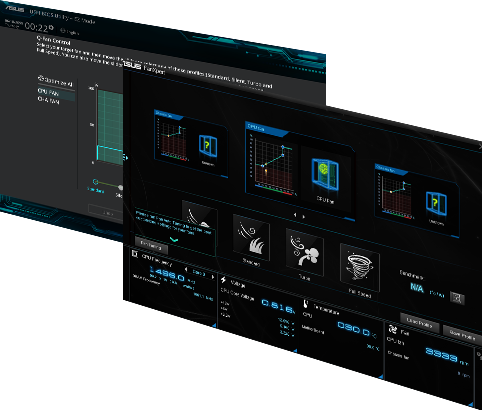

Fan Xpert
Dedicated CPU and case fan controls

Exclusive Fan Xpert ensures every fan achieves the best balance of cooling performance and low noise — and with our 100 series boards and their hardware-level 4-pin/3-pin PWM/DC mode for case fans, a simple BIOS adjustment lets you run your case fan in PWM/DC. Fan Xpert even includes Auto-Tuning mode to scan and detect all fan characteristics for single-click customization!

Intel CPU and chipset features
Intel C232 Chipset
The Intel® C232 is a single-chipset design that supports Intel Xeon® E3 1200 v5 series and 6th-generation Intel LGA1151 CoreTM / Pentium® / Celeron® processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. It natively supports a maximum of six USB 3.0 ports, six SATA 6Gbit/s ports, and PCIe 3.0 lane speed support for faster data retrieval.
Ready for Intel LGA1151 Xeon E3 1200 v5 series processors
This motherboard supports Intel® LGA1151 Xeon® E3 1200 v5 series processors, memory and PCI Express controllers integrated to support two-channel (2-DIMM) DDR4 memory and 16 PCI Express 3.0/2.0 lanes for great graphics performance.
Ready for 6th-generation Intel LGA1151 Core/ Pentium/Celeron processors
This motherboard supports 6th-generation Intel LGA1151 CoreTM / Pentium® / Celeron® processors in the LGA1151 package, with graphics, memory and PCI Express controllers integrated to support onboard graphics output with dedicated chipsets, two-channel (2-DIMM) DDR4 memory and 16 PCI Express 3.0/2.0 lanes for great graphics performance.

* Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.
