X870
MAX GAMING WIFI7

ASUS X870 series motherboards are expertly engineered to unleash the full potential of AMD Ryzen^™ 9000 series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the X870 MAX GAMING WIFI7 motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

* CEC Tier II ready

12(80A) + 2(80A) + 1(80A)

power stages with enlarged VRM heatsinks

AI Solutions

for advanced AI capabilities

AEMP

for enhanced DDR5 performance

WiFi 7

for stable WiFi connection and lower latency

USB 40Gbps Type-C^®

for the latest super-speed devices and drives

PCIe 5.0 slots

for graphics card and storage

USB 20Gbps Type-C^®

for rapid data transmission

EZ PC DIY

for easier build customization

Aura Sync

for full RGB lighting control

Performance

AI Solutions

ASUS AI Solutions include ASUS AI Advisor as your technical expert with expertise in PC performance, AI Cooling II for automated temperature control.

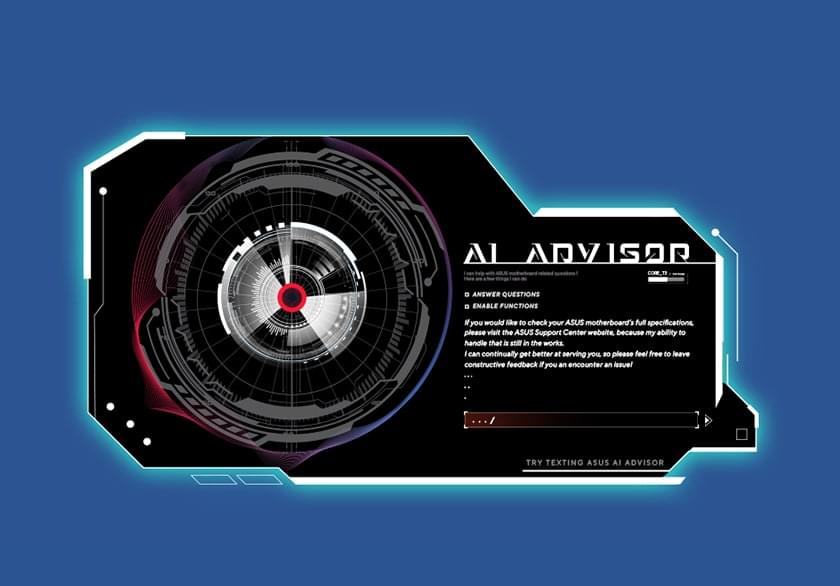

ASUS AI Advisor

ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.¹

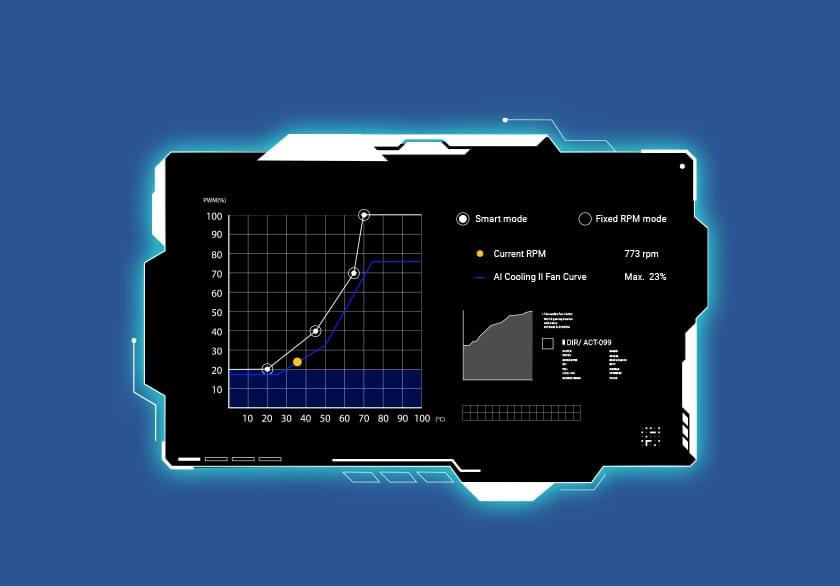

AI Cooling II

Optimized thermals and reduced noise via dynamic adjustment of fan speeds, based on CPU temperatures.

Performance

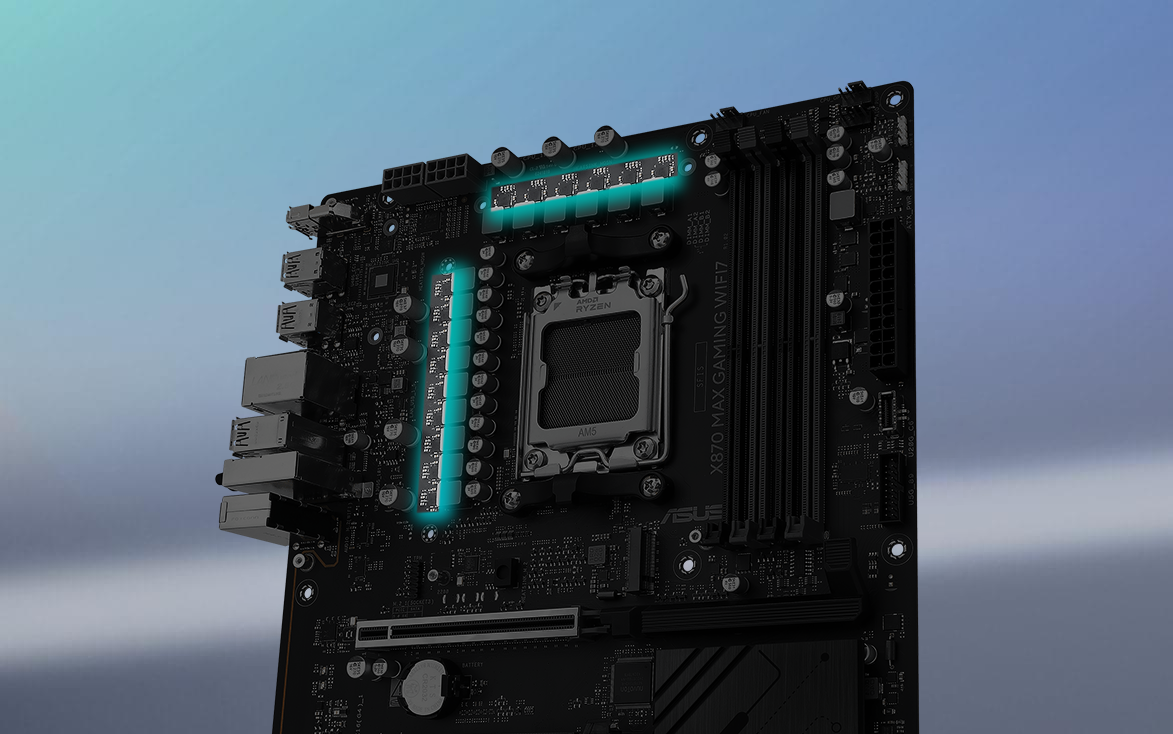

Robust power design

Stable power is crucial for maximizing the performance of AMD processors. The X870 series is designed to meet the needs of high-core-count CPUs. It features 12(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80 amperes each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future AMD processors.

Vcore power
(80A, DrMOS)

SOC power
(80A, DrMOS)

Misc power
(80A, DrMOS)

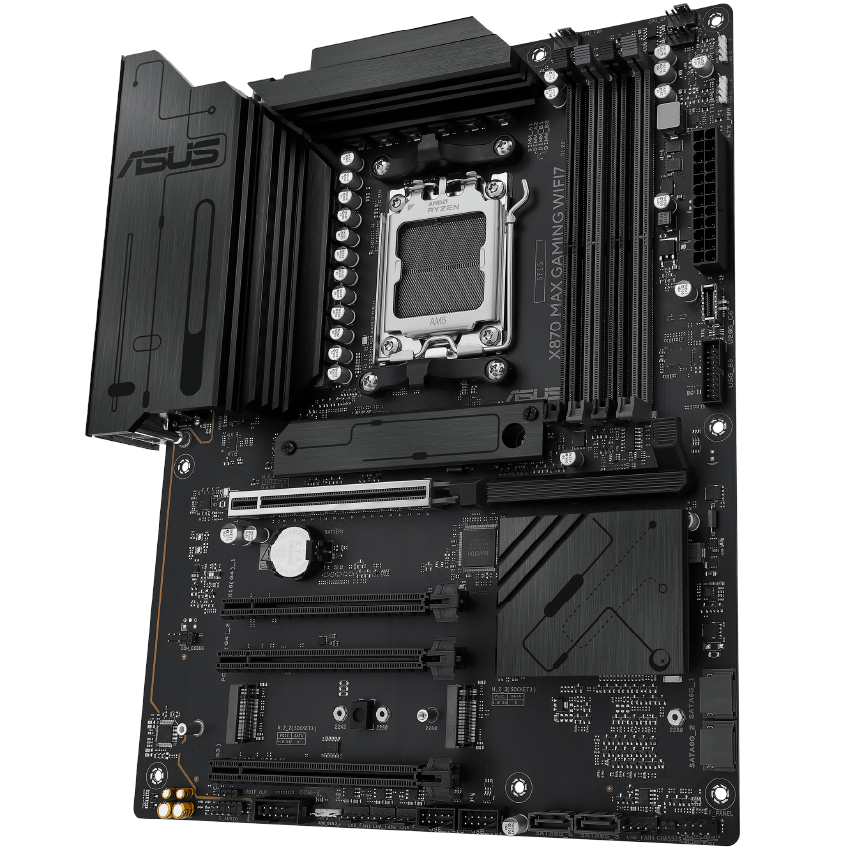

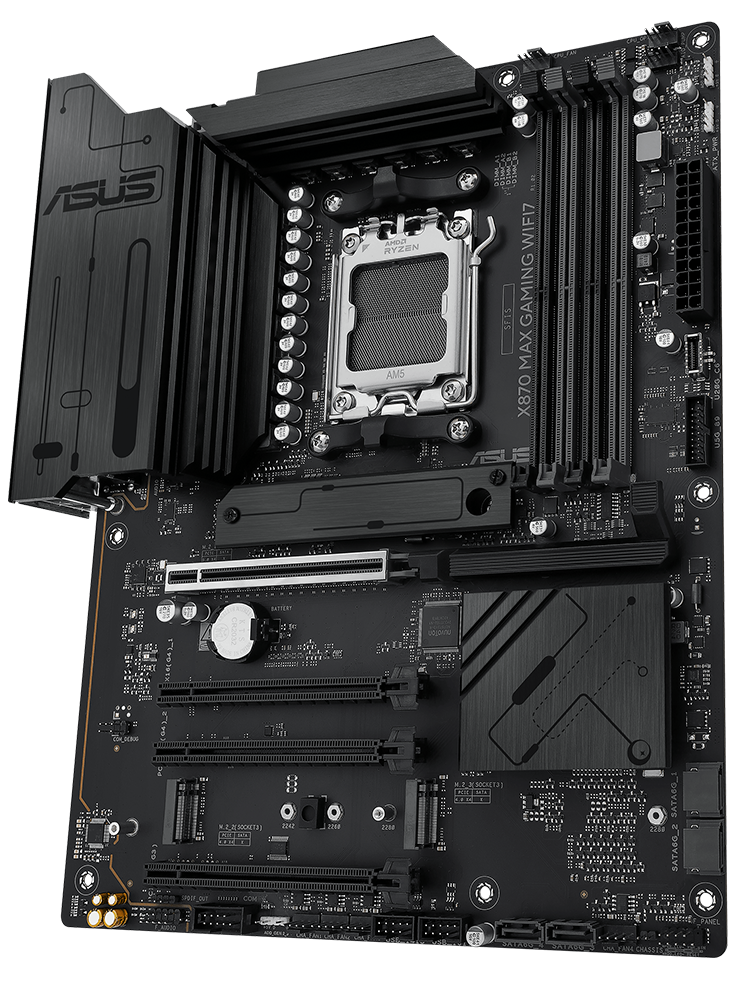

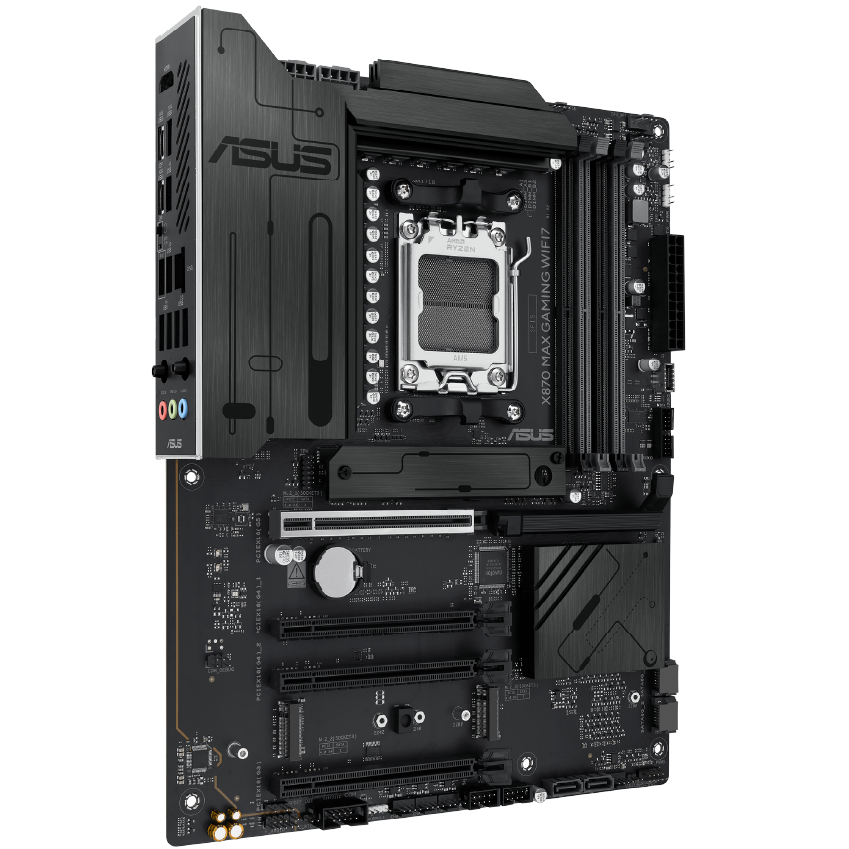

Angled top-down view of X870 MAX GAMING WIFI7 motherboard.

Eight-layer PCB design

Enhanced stability and overclocking.

The multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.

ProCool connectors

Proprietary 8 + 8 pin connectors improve PSU connection.

Graphic depicting ProCool solid pin connectors.

Proprietary connectors augment the motherboard’s link to the power supply with 8 + 8 pin connectors that pass 12 volts of power directly to the processor. Each connector features solid pins that can handle more current than hollow-pin connectors.

Digi+ VRM control

Real-time voltage control.

The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings.

Enhanced Memory & Storage Performance

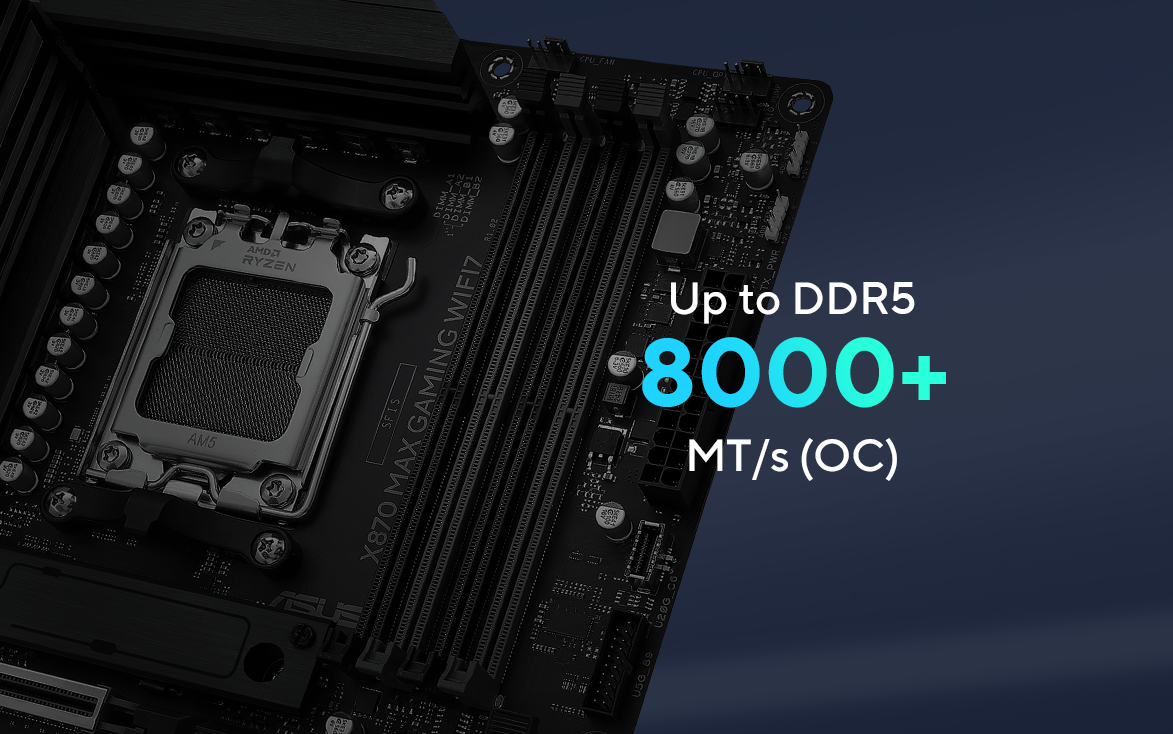

Enhanced DDR5 performance

Comprehensive memory tuning options are the cornerstone of X870 series motherboards. The X870 MAX GAMING WIFI7 maximizes the potential of your DDR5 modules, from entry-level to extreme-speed kits.²

For entry-level modules without EXPO^™ support, ASUS Enhanced Memory Profile (AEMP) automatically detects memory chips and provides optimized profiles for enhanced performance.

For those looking to surpass stock DDR5 speeds, the X870 MAX GAMING WIFI7 offers extensive AMD Extended Profiles for Overclocking (EXPO^™) support and a wide array of UEFI settings for further performance tweaks³.

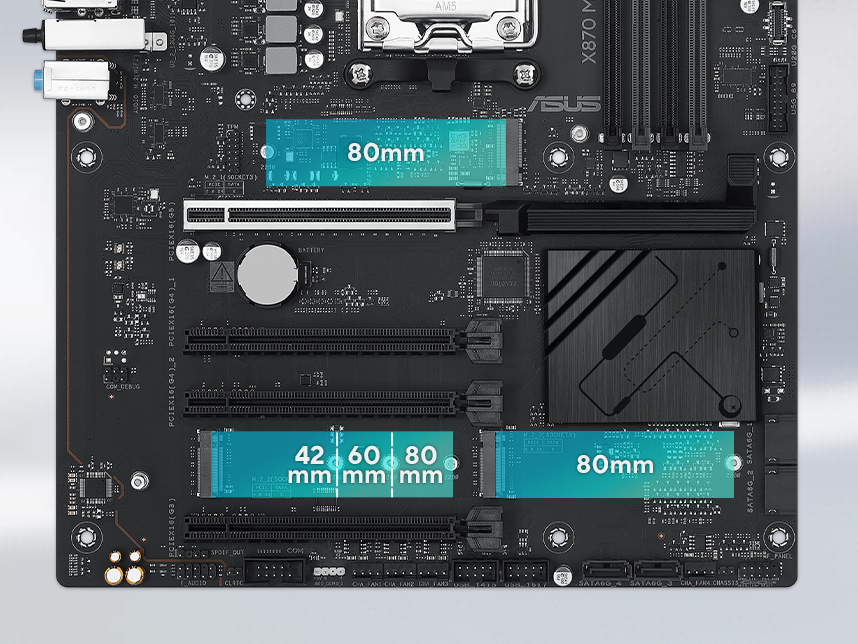

Three M.2 slots (up to 128 Gbps)

X870 MAX GAMING WIFI7 offers a total of three M.2 slots, including one that supports data-transfer speeds of up to 128Gbps via PCIe 5.0, two that support 64Gbps via PCIe 4.0. This enables quicker boot-up and app load times with OS or application drives⁴.

Graphic depicting different M.2 slots on a motherboard.

Cooling

Cooler by design

The X870 MAX GAMING WIFI7 motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.

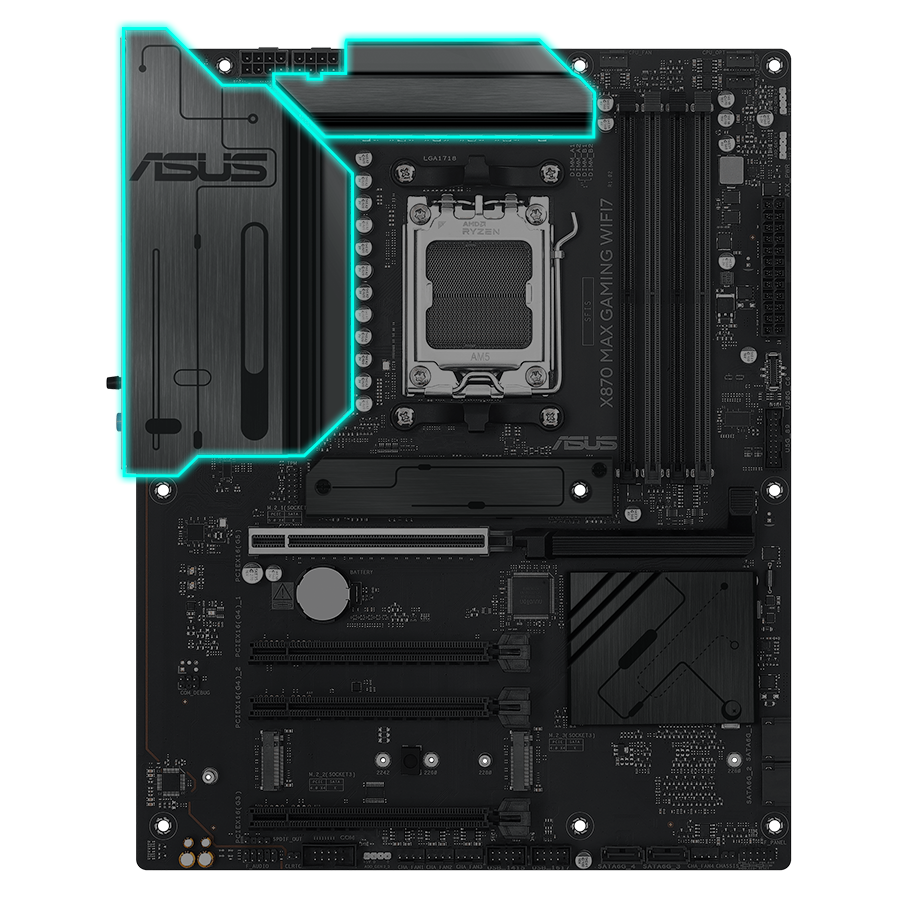

VRM heatsinks and thermal pads

Two massive VRM heatsinks and essential thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance.

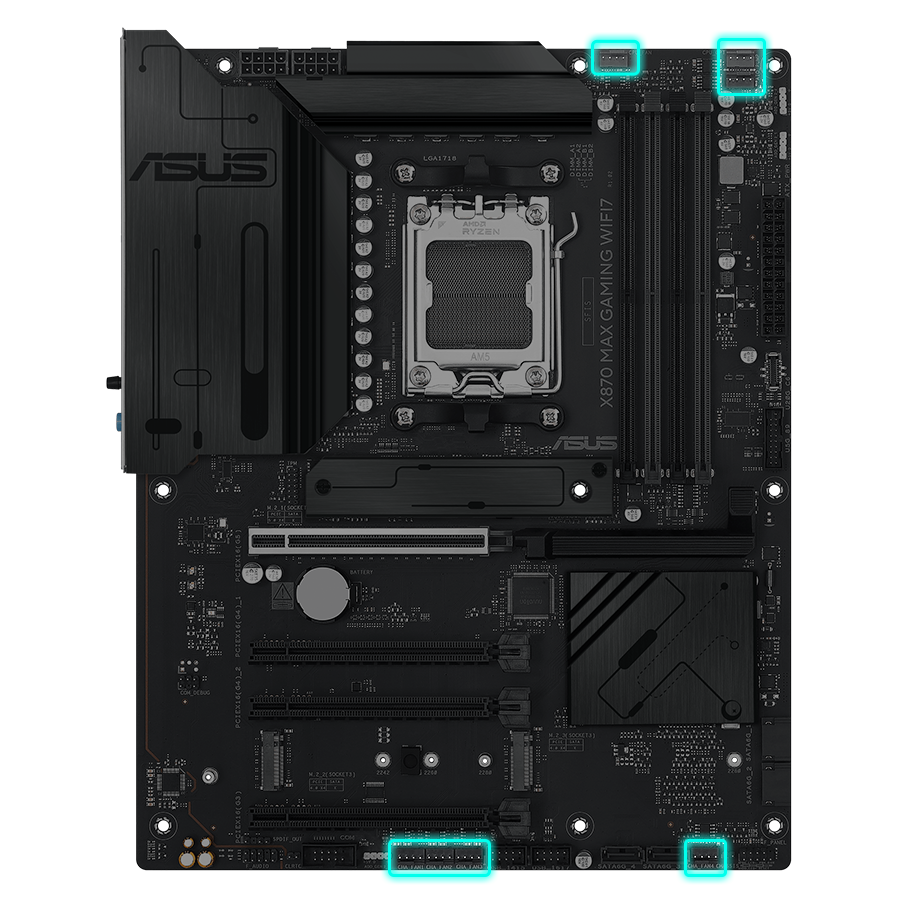

4-Pin PWM/DC fan

Each onboard header supports auto-detection of PWM or DC fans.

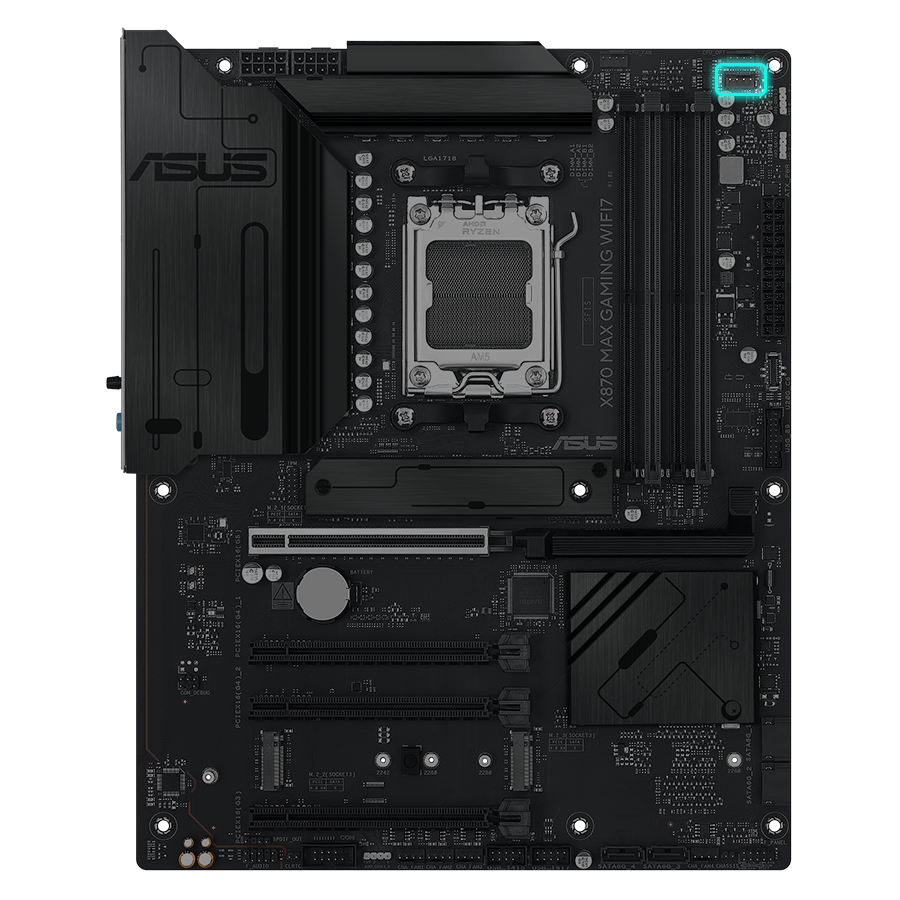

AIO pump header

A dedicated PWM/DC header supports self-contained water-cooling setups.

Multiple temperature sources

Each header can dynamically reference four thermal sensors. Fan Xpert 4 lets you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.

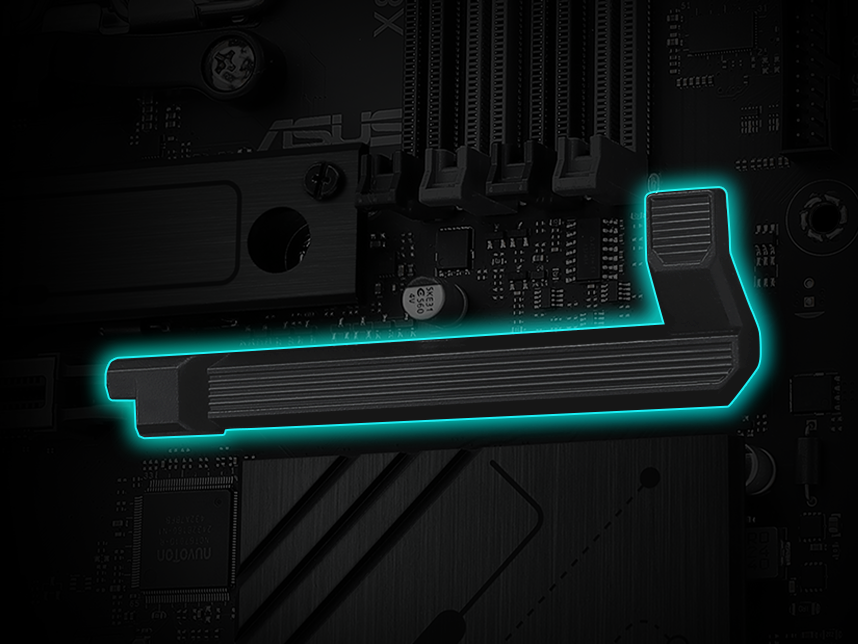

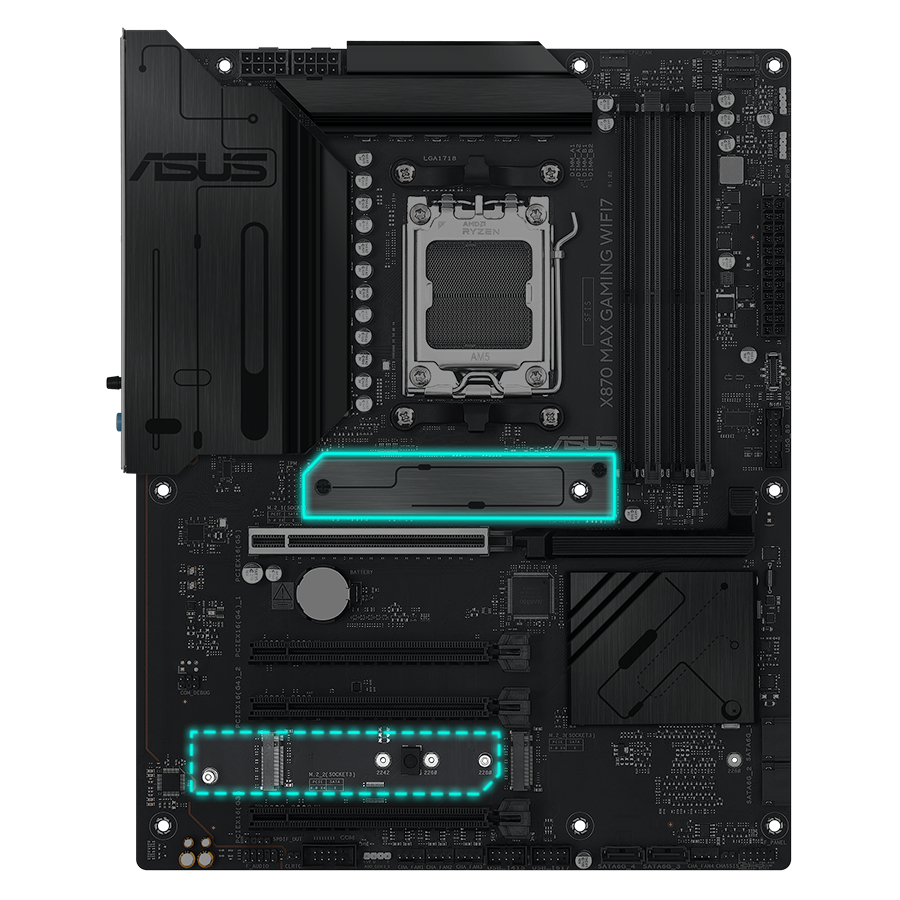

Flexible M.2 Heatsink

The Flexible M.2 heatsink takes care of the M.2 slot, preventing throttling that can occur with M.2 storage during extended transfers. It can be installed on either M.2_1 slot or M.2_2 slot.

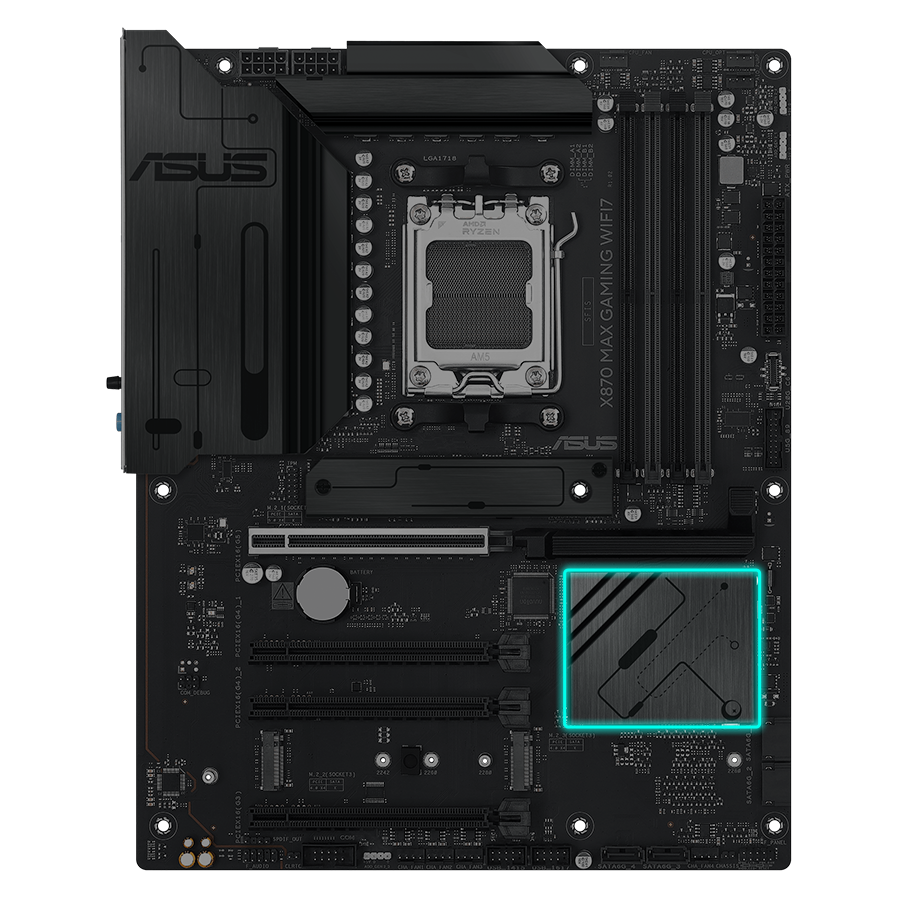

Passive chipset heatsink

An aluminum passive chipset heatsink ensures optimal cooling and stable performance. It is more durable and longer-lasting than heatsinks with fans, which can be vulnerable to the buildup of dust and debris.

Smart protection

A dedicated integrated circuit protects each fan header from overheating and excess current.

Smart Cooling precision

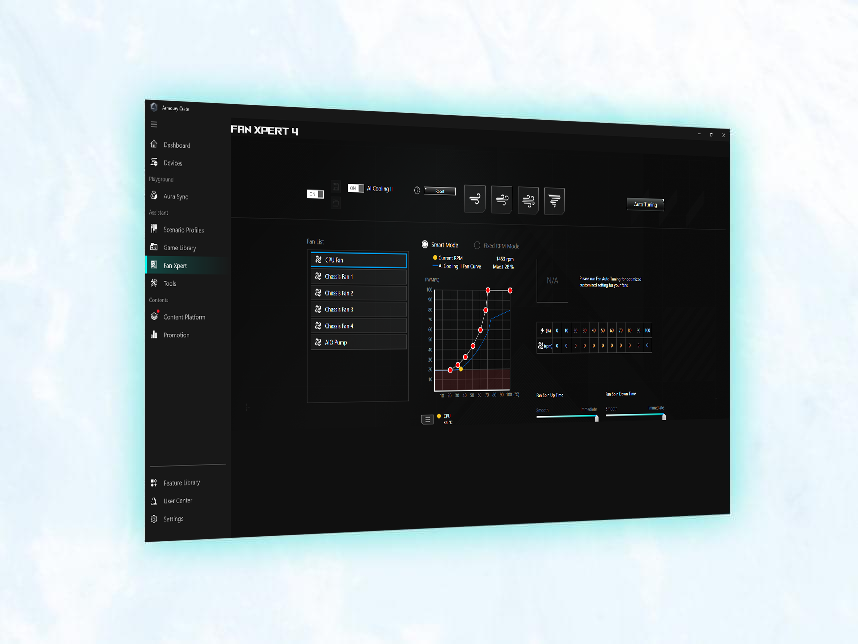

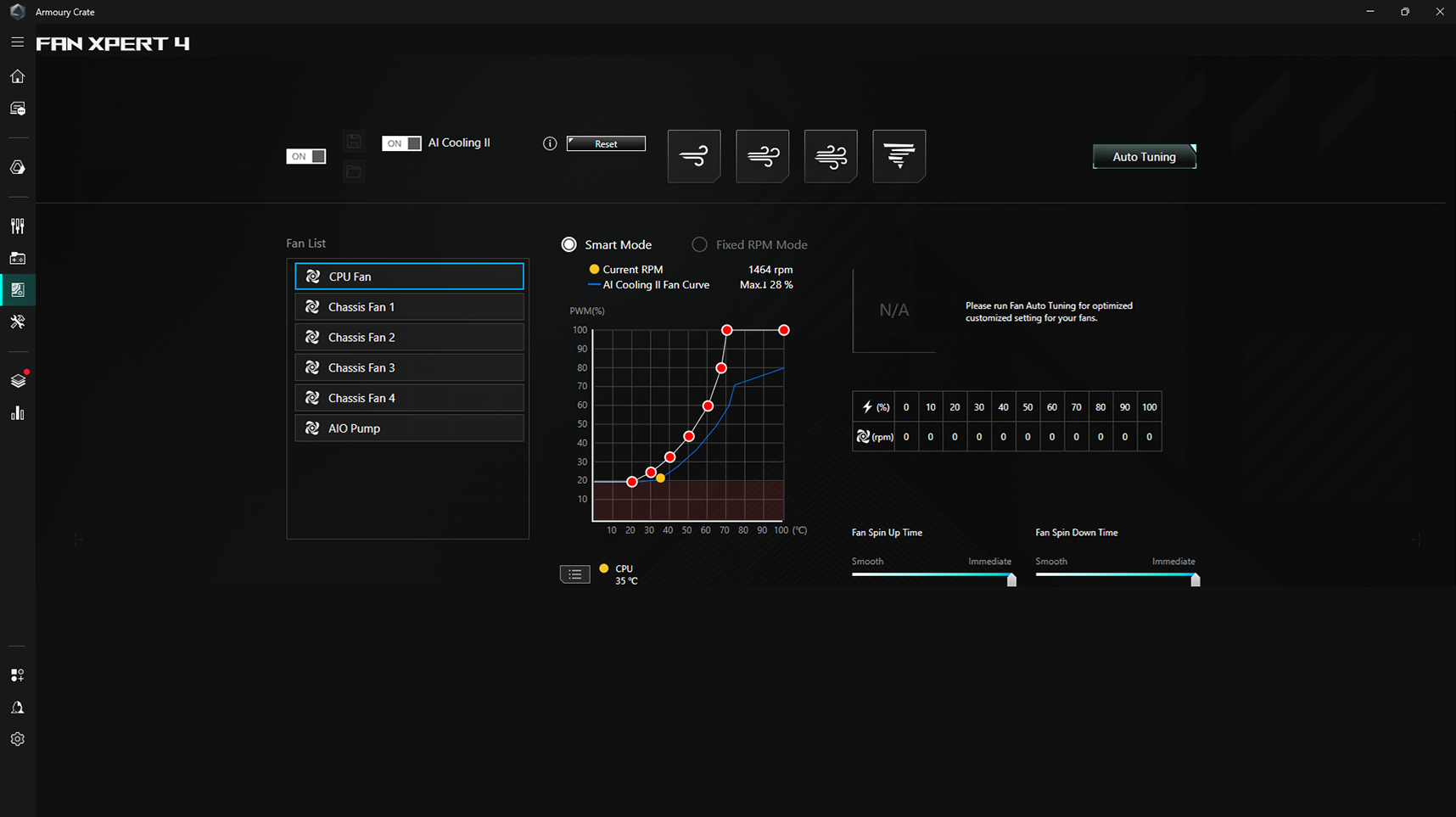

ASUS Fan Xpert 4

ASUS Fan Xpert 4 software offers comprehensive control over fans and AIO coolers. Auto-Tuning mode configures settings with one click, while Extreme Quiet mode reduces fan speeds for silent operation during light tasks. Controls are also available via the UEFI BIOS.

Cooler compatibility

ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new motherboards, empowering you to build your dream gaming rig.⁵

See compatible AIO coolers

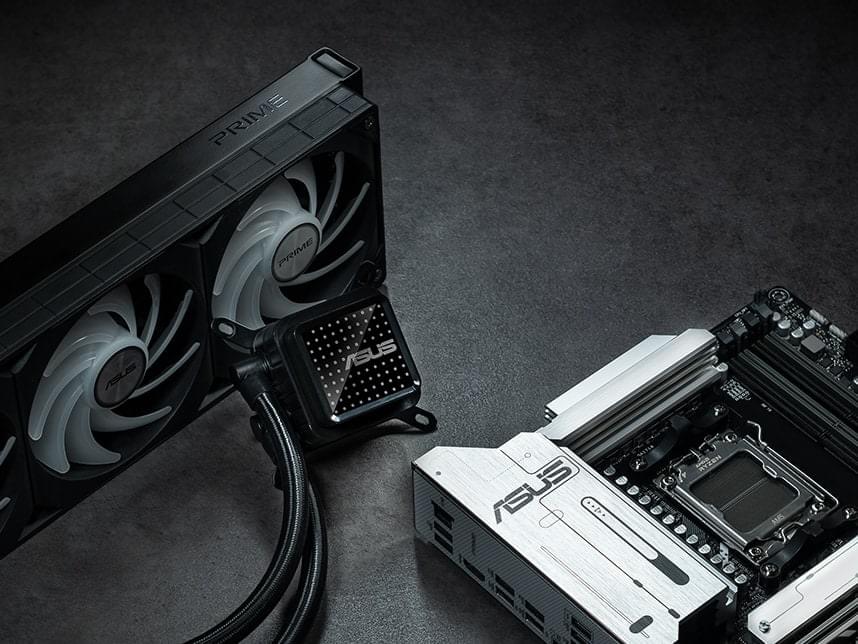

ASUS motherboard and AIO cooler on a table.

Flexibility

Empowering connections

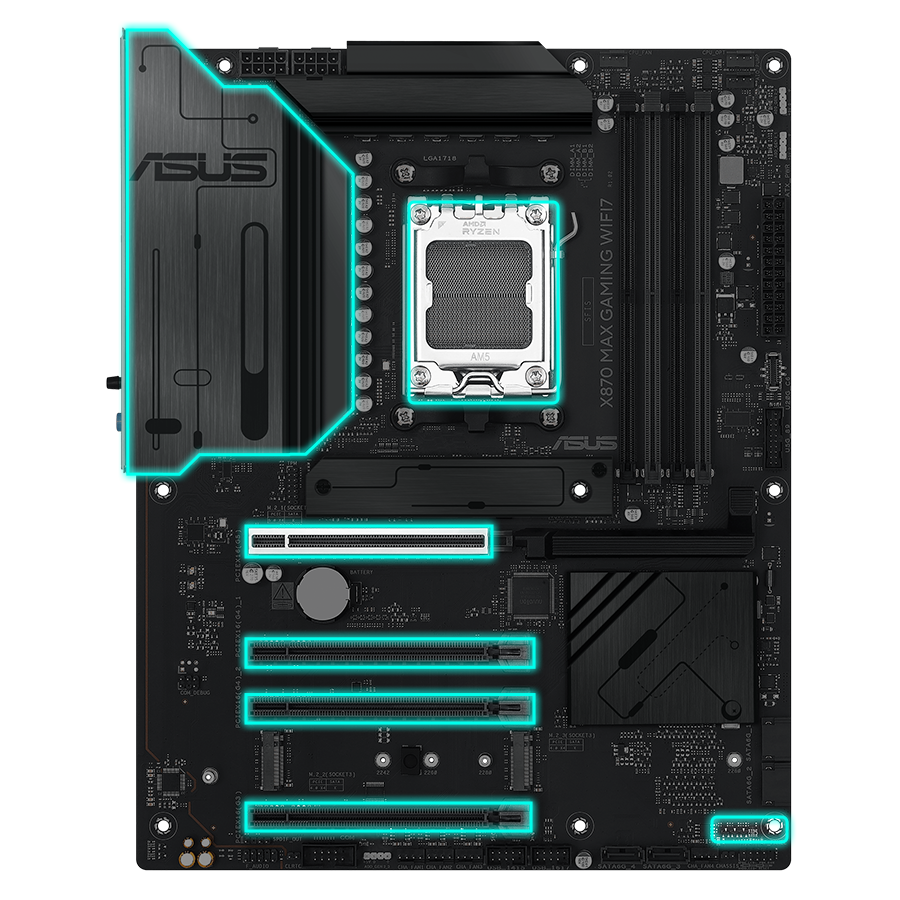

The X870 series motherboard offers a versatile range of connectivity, including support for WiFi 7, PCIe 5.0, Realtek 2.5Gb Ethernet, and an array of USB ports.

WiFi 7

2.5Gb Ethernet

PCIe 5.0

USB 40Gbps

PCIe 5.0 slot

USB 20Gbps

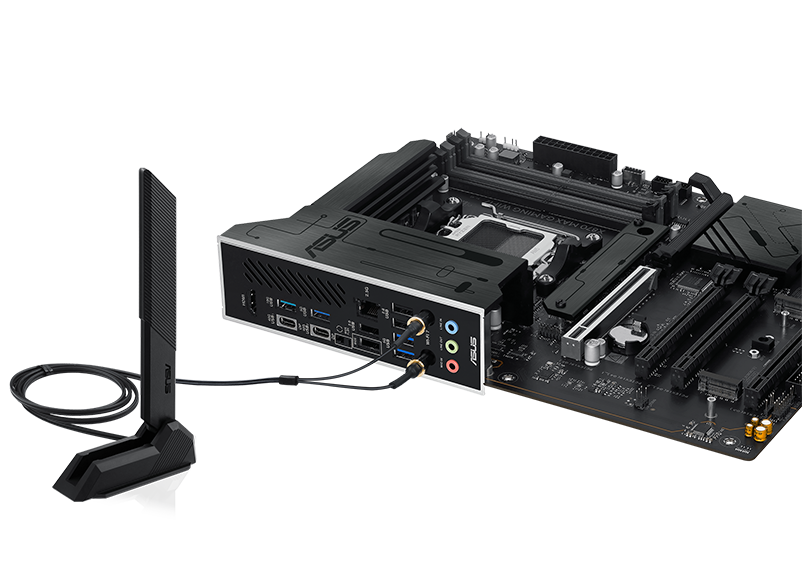

WiFi 7

The next-gen WiFi 7⁶ supports 160 MHz bandwidth in the 6 GHz band and 4096 QAM. Multi-Link Operation (MLO) ensures stable connections and low latency, supporting 2.4, 5, and 6 GHz bands for enhanced coverage and throughput.

Multi-link Operation (MLO) and WiFi 7 technology

USB 40Gbps Type-C^® ports

Each port delivers up to 40Gbps of bi-directional bandwidth for the latest super-speed devices and drives. Both ports can be employed for up to two external 4K displays.

Gbps

USB 20Gbps

USB 40Gbps

PCIe 5.0 slot

The latest processors introduce PCIe 5.0 support, doubling data transfer speeds compared to PCIe 4.0, enhancing signal integrity, and providing backward-compatible CEM connectors and support for previous PCIe versions.

PCIe 5.0 x16

512 Gbps

PCIe 4.0 x16

256 Gbps

PCIe 3.0 x16

128 Gbps

Customization

Personalization

The X870 series enhances the user experience across the board, from simplifying BIOS setting adjustments to offering customizable RGB lighting controls for a uniquely personal system aesthetic.

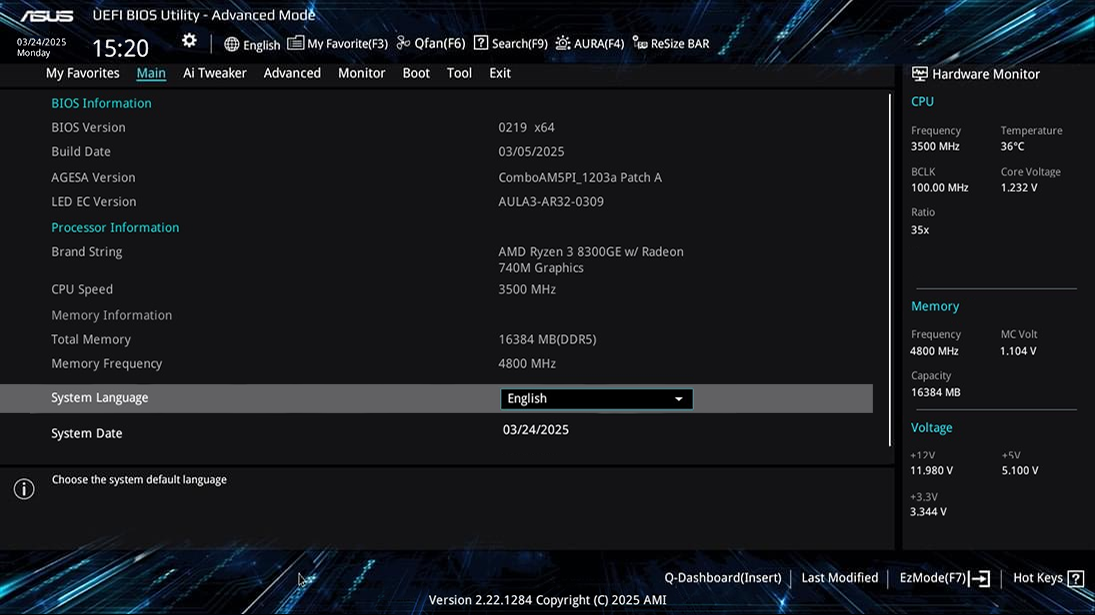

UEFI BIOS

The UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.

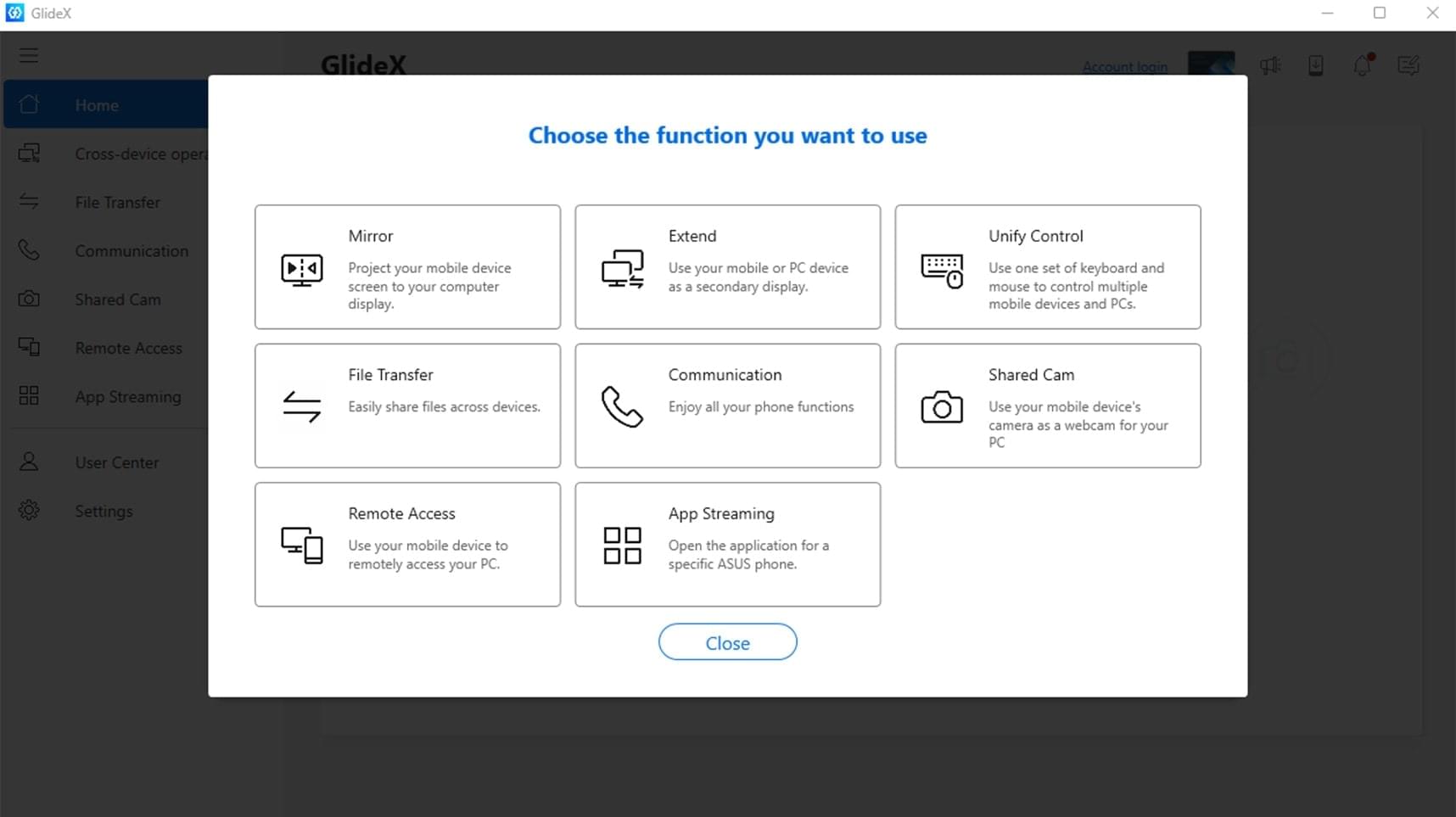

ASUS GlideX

Enable seamless screen sharing and control across PCs, tablets, and smartphones via wired or wireless connections, supporting multiple platforms.

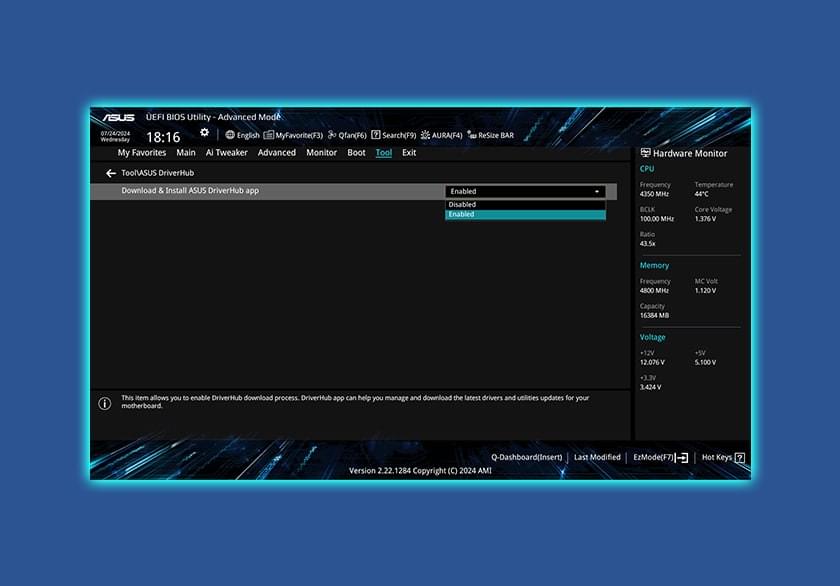

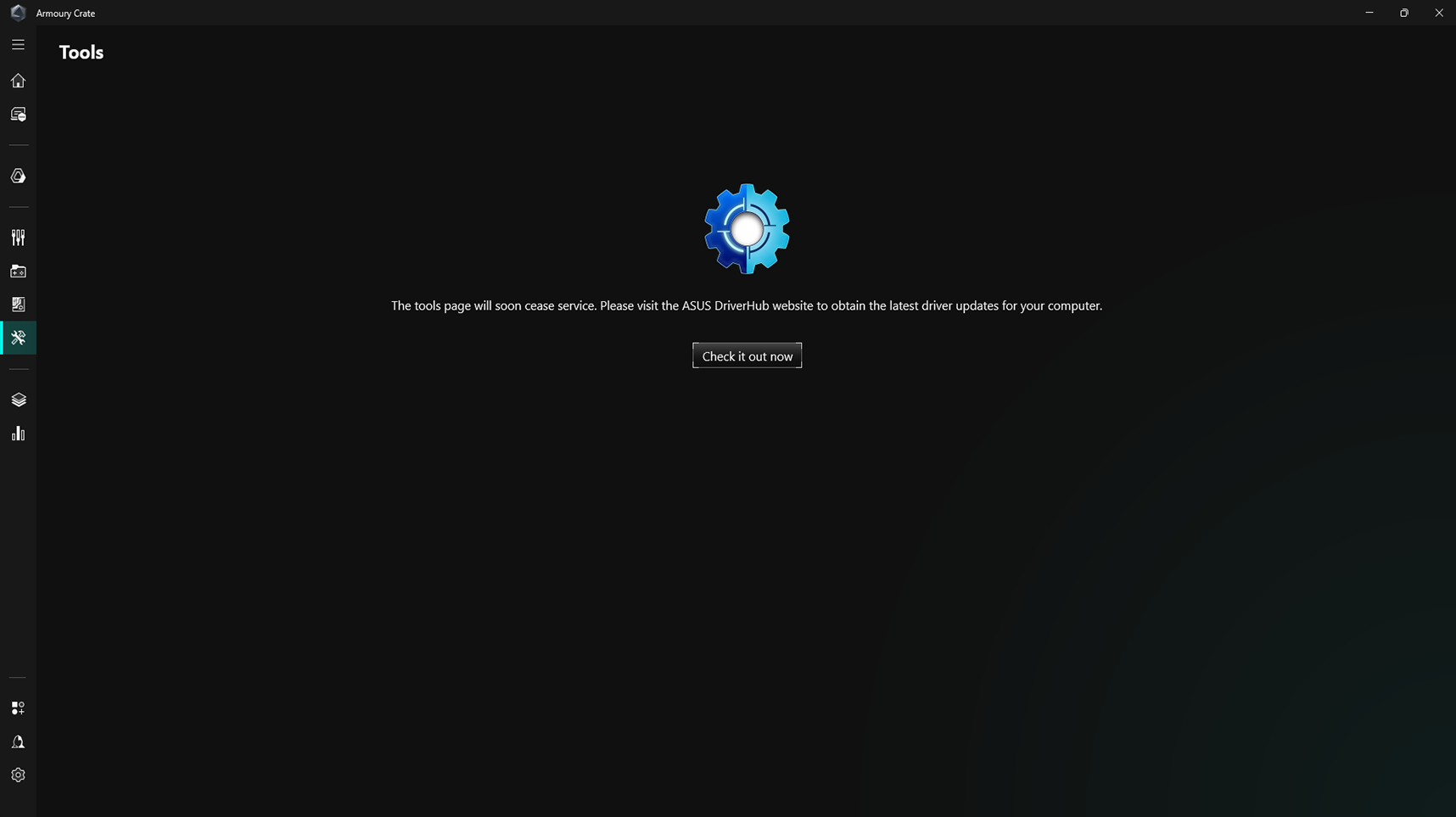

ASUS DriverHub

Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.

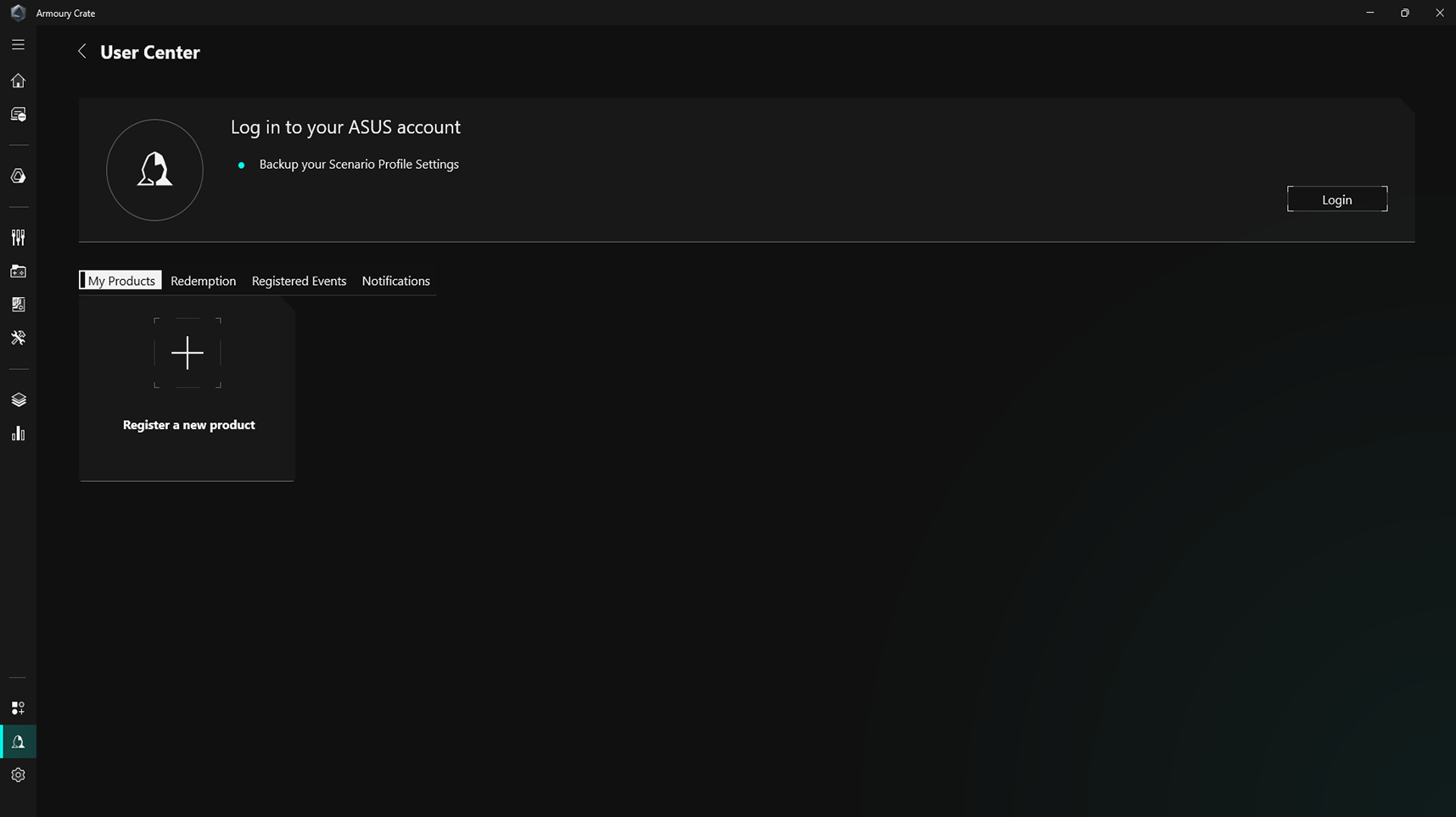

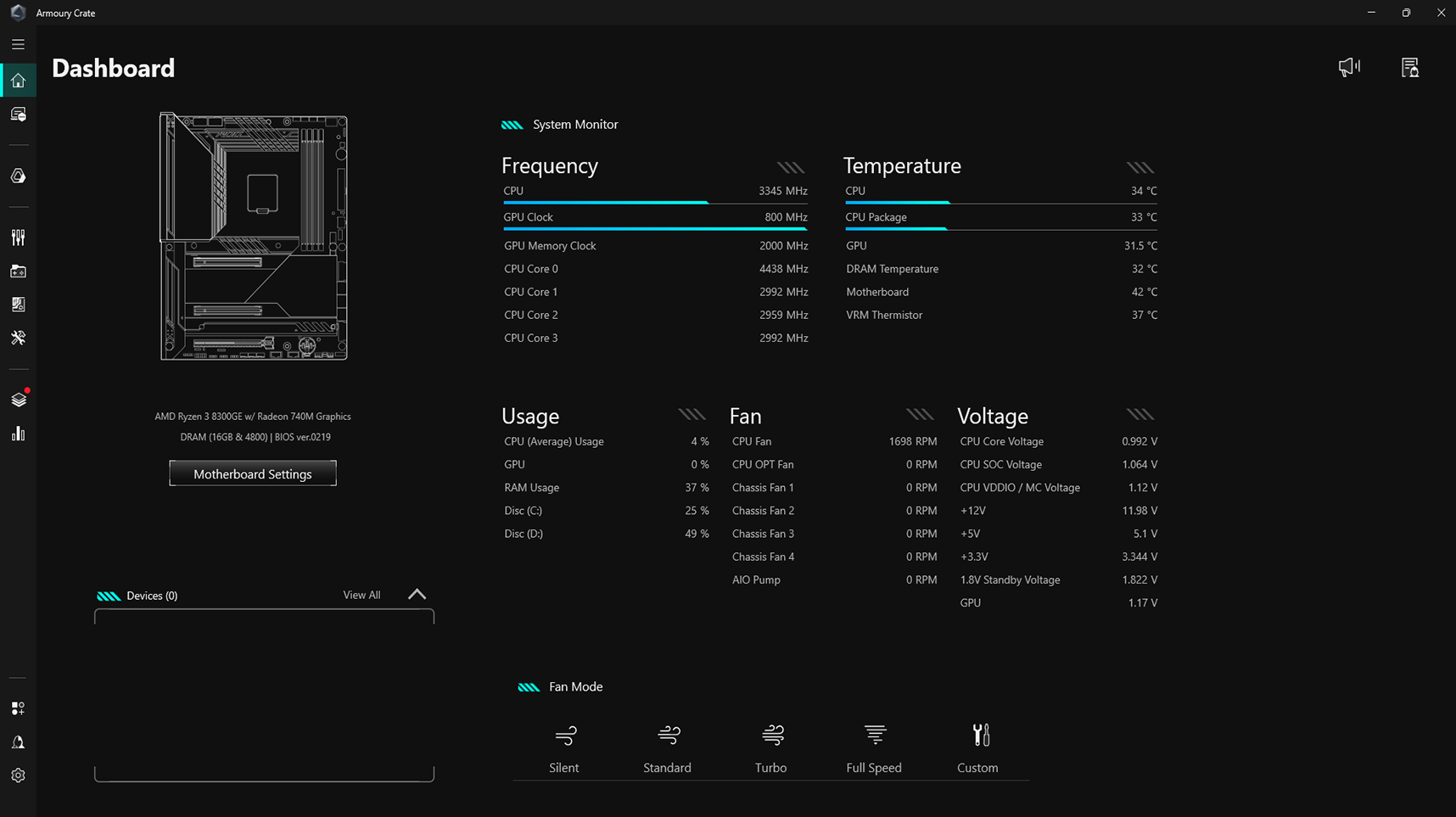

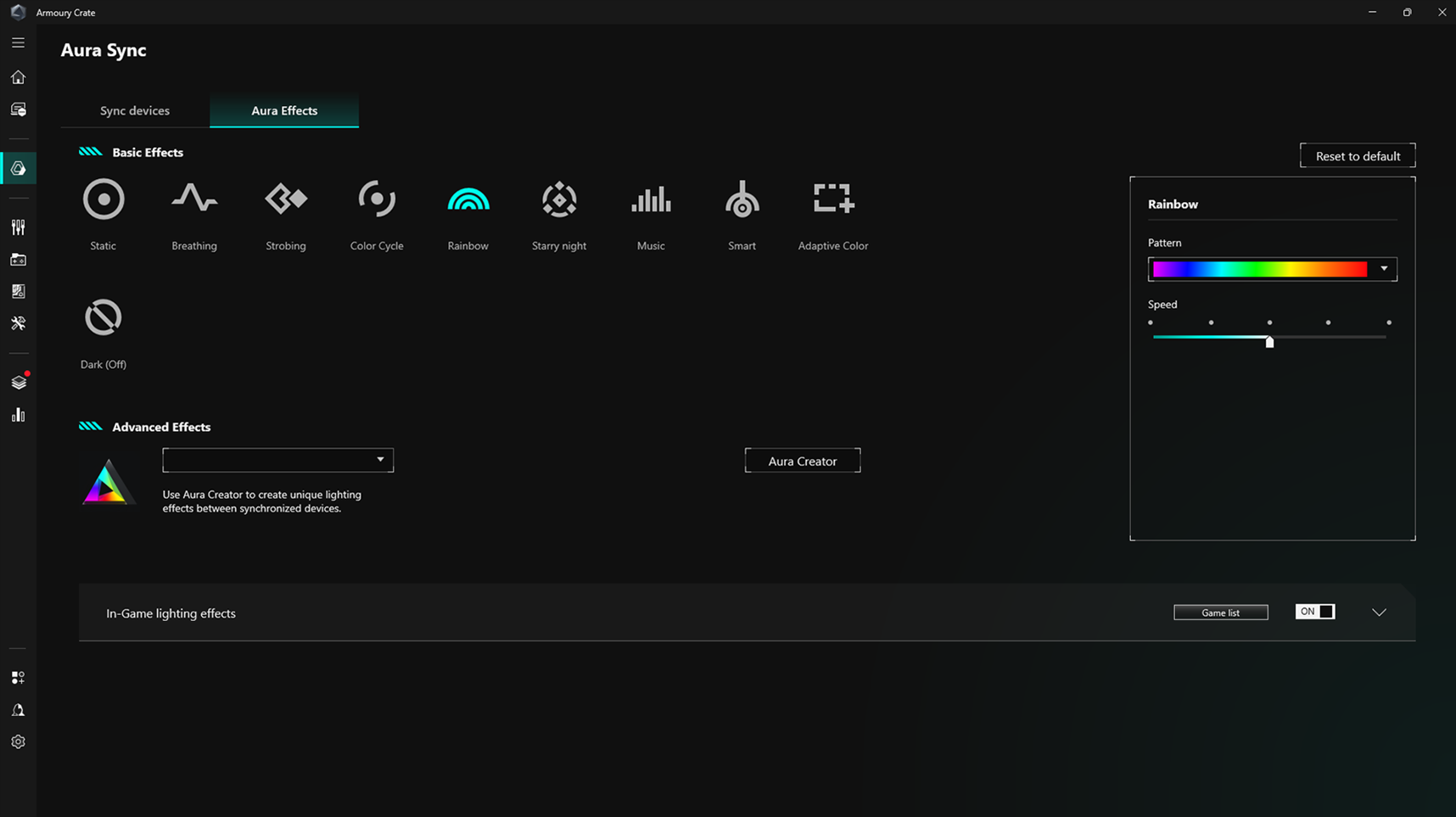

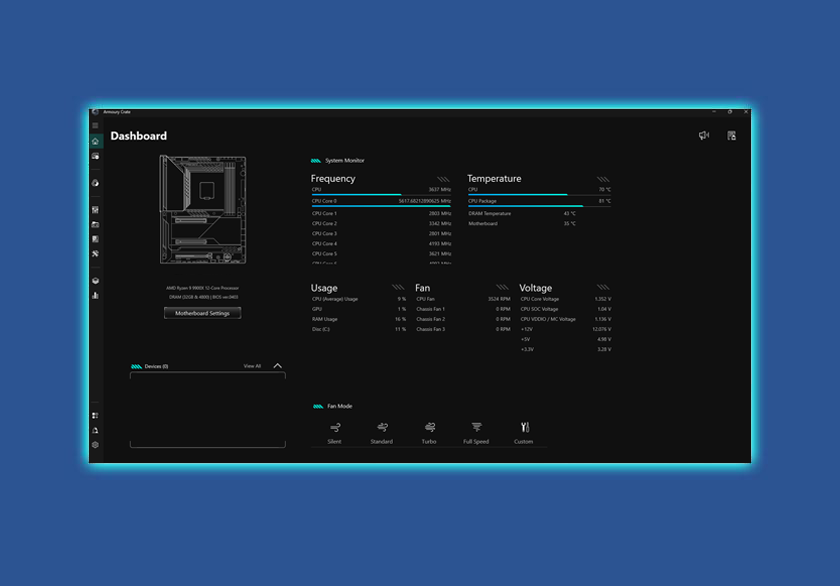

Armoury Crate

Customize Aura Sync RGB and control ASUS devices. Includes product registration and updates.

Aura Sync

Complete RGB lighting control for enthusiast systems, ensuring seamless synchronization with compatible hardware.

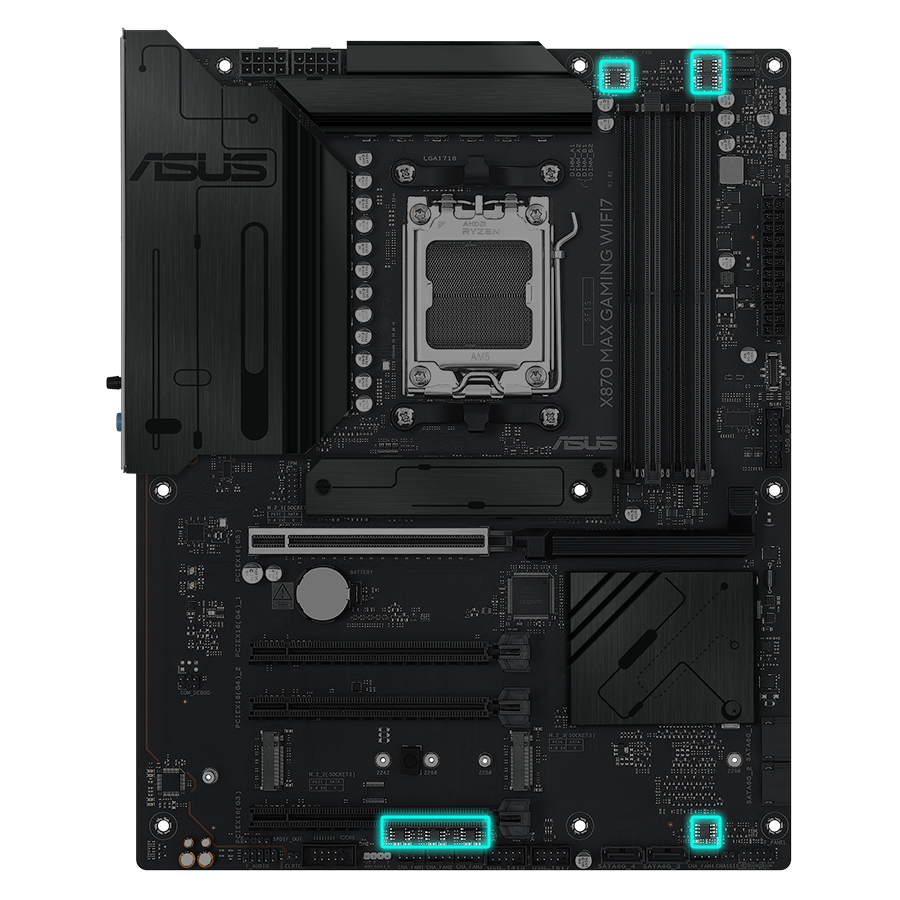

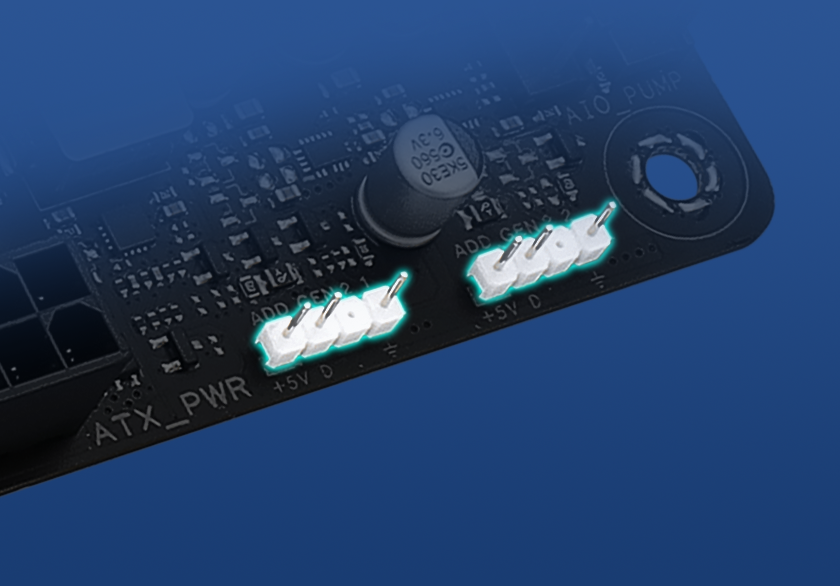

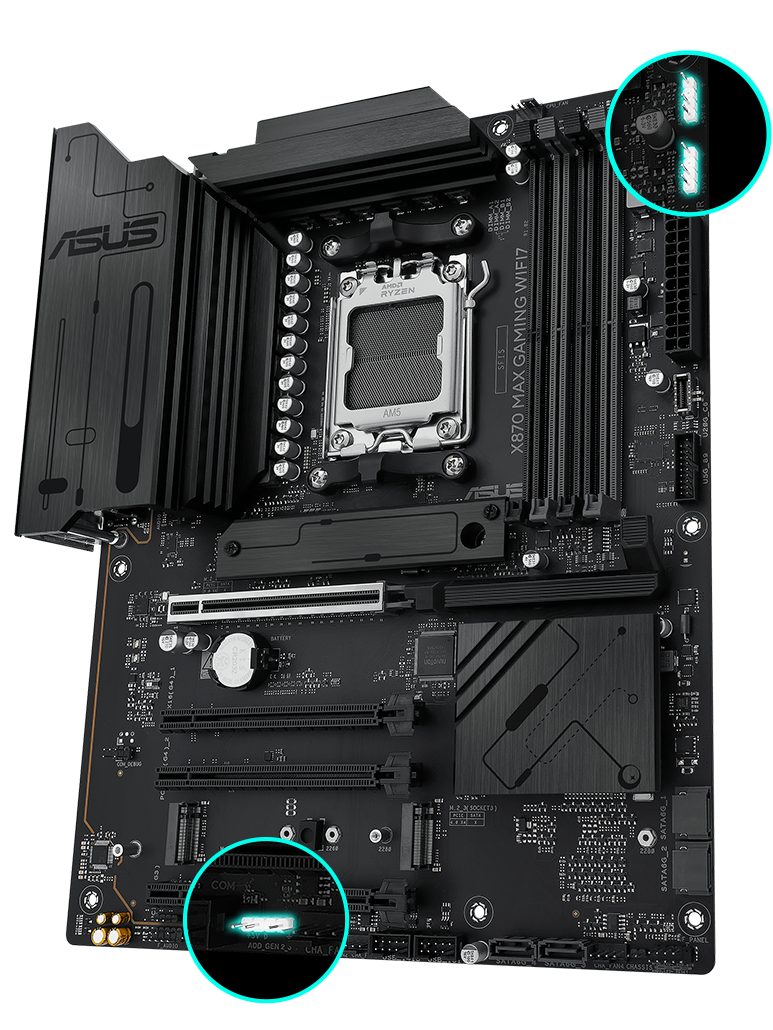

Addressable RGB Gen 2 headers

Three Addressable RGB Gen 2 headers detect LED counts on compatible RGB devices, automatically adjusting lighting effects accordingly.

Image depicting X870 MAX GAMING WIFI7 ARGB connectors.

Customization

DIY friendly

The X870 series motherboard features EZ PC DIY innovations that simplify and speed up the PC building process, making DIY easy and convenient.

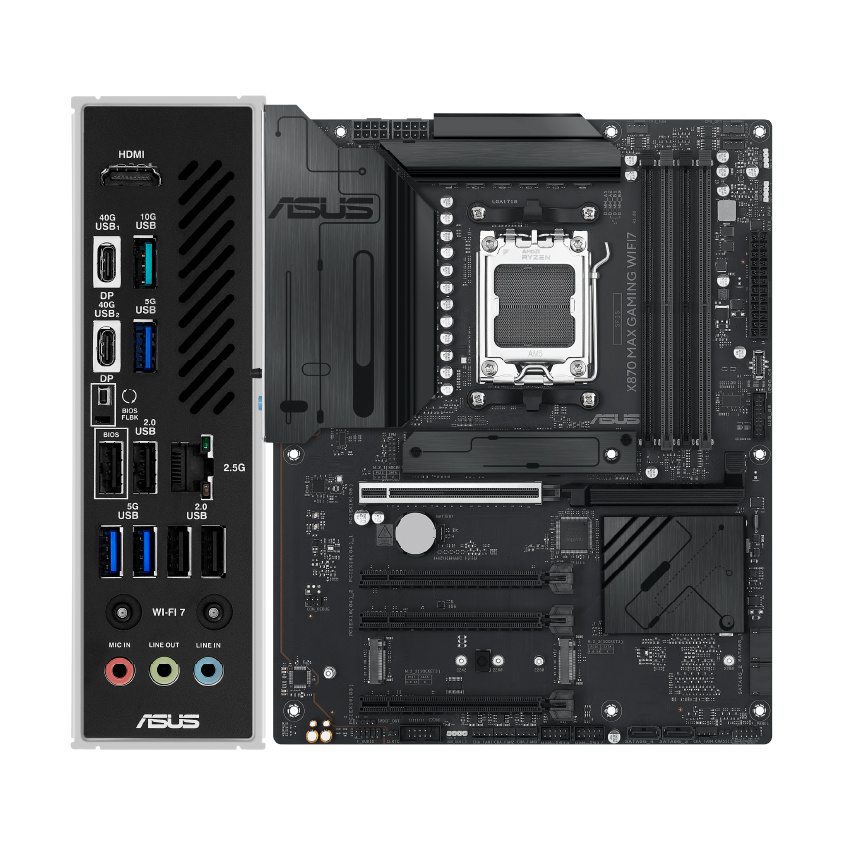

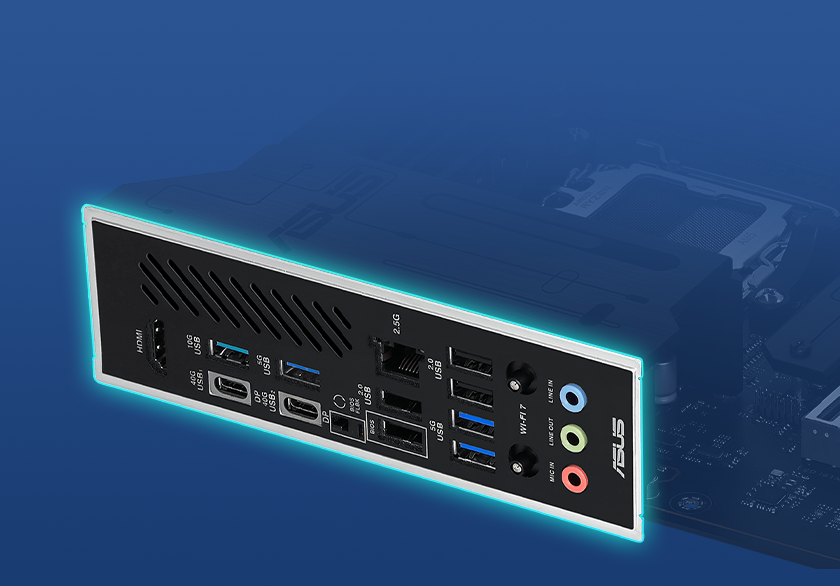

Pre-Mounted I/O Shield

Our pre-installed I/O shield safeguards ports, simplifies the build process, increases functionality and enhances aesthetics for PC DIY enthusiasts.

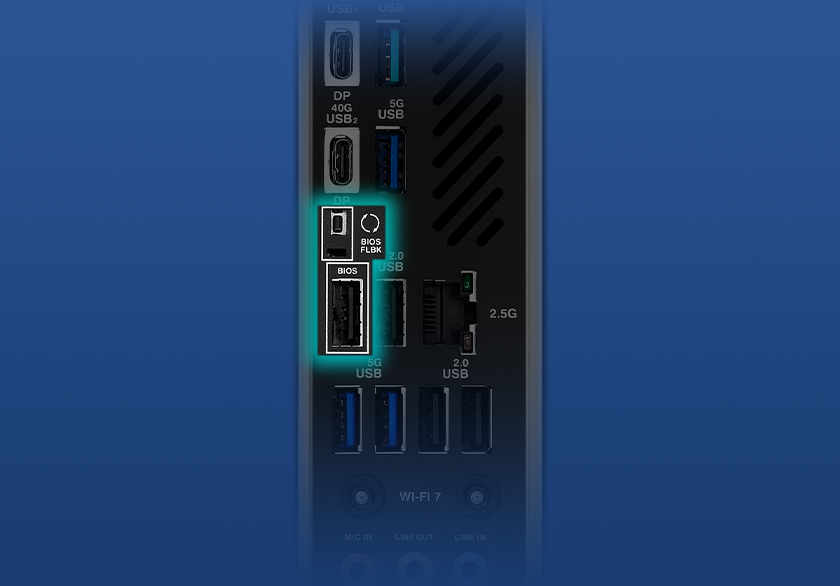

BIOS FlashBack^™

BIOS FlashBack^™ simplifies BIOS updates. Just load the BIOS file onto a FAT32 USB stick, insert it into the BIOS FlashBack^™ port, and press a button—no CPU or memory needed.

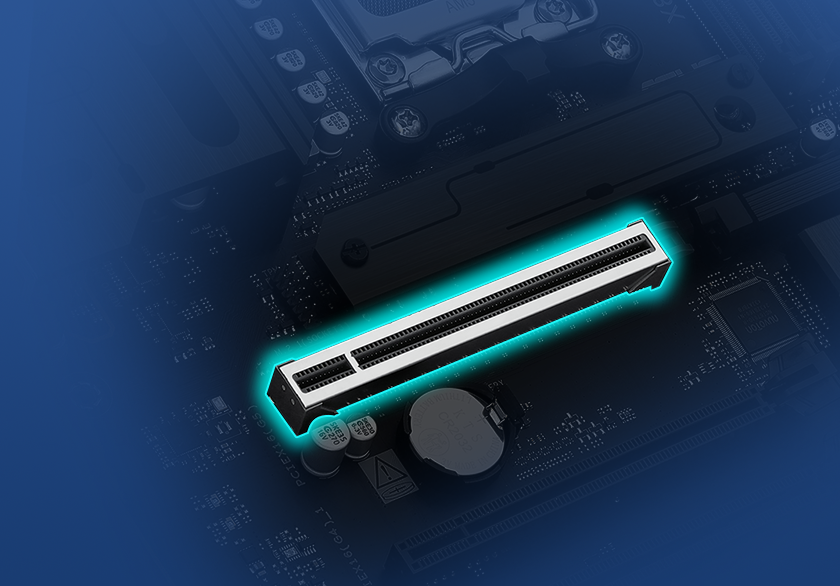

SafeSlot

PCIe 5.0 is twice as fast as PCIe 4.0. ASUS has adapted our SMT manufacturing for the faster SafeSlot, a reinforced metal sheath that ensures secure card installation and faster data speeds.

Build for the most advanced pc for gaming and creating

When only the fastest will do, ASUS X870E/X870 motherboards deliver. With USB 4.0 onboard along with robust overclocking⁷ capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO^™ technology and PCIe^® 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an ASUS X870E/X870 motherboard and AMD Ryzen^™ 9000, 8000, and 7000 Series processors.
