Name: B850M MAX GAMING WIFI
Brand: ASUS
SKU: 32210

B850M MAX GAMING WIFI

Open side navigation

Close side navigation

B850M MAX GAMING WIFI

B850M MAX GAMING WIFI motherboards are expertly engineered to unleash the full potential of AMD Ryzen^™ 9000 series processors. The B850M MAX GAMING WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

* CEC Tier II ready

8+2+1

phase digital power design

AEMP

for enhanced DDR5 performance

USB 10Gbps Type-C^®

for rapid data transmission

WiFi 6

for stable WiFi connection and lower latency

USB 5Gbps Type-C^®

for rapid data transmission

PCIe 5.0 slots

for graphics card and storage

EZ PC DIY

for easier build customization

Pre-mounted
I/O shield

for safeguarding ports and enhancing aesthetics

Aura Sync

for full RGB lighting control

Performance

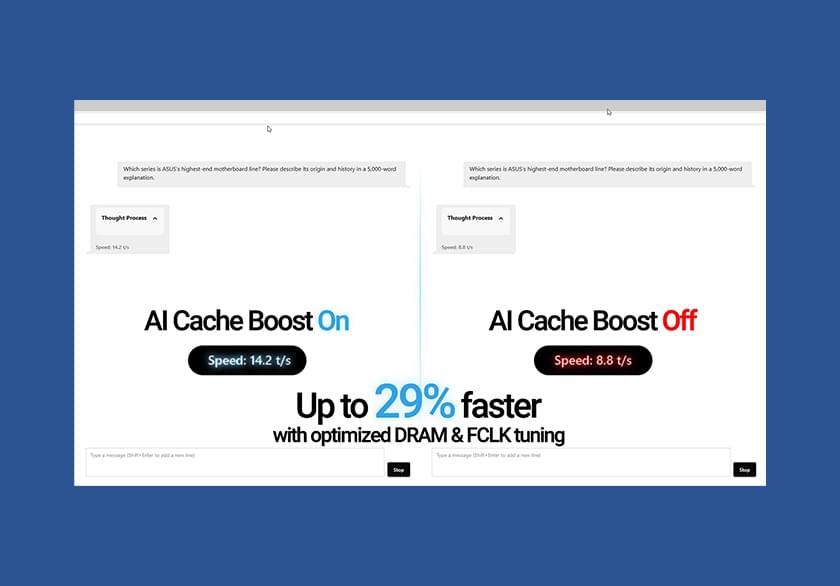

AI Solutions

ASUS AI Solutions include AI Advisor as your technical expert with expertise in PC performance.

AI Advisor

ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.²

Performance

Digital Power Design

B850M MAX GAMING WIFI features an 8+2+1 phase power design with discrete MOSFETs, ensuring efficient and stable power delivery for AMD processors plus steady performance for day-to-day use.

Vcore power

SOC power

Misc power

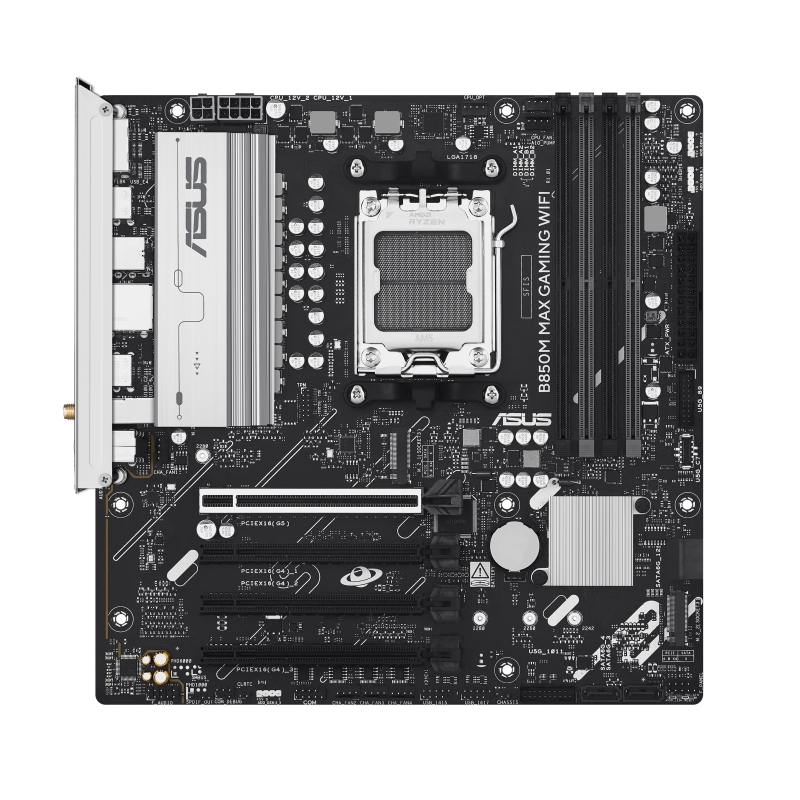

Angled top-down view of B850M MAX GAMING WIFI motherboard.

Six-layer PCB design

Enhanced stability and overclocking.

The multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.

Digi+ VRM control

Real-time voltage control.

The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings.

Enhanced Memory & Storage Performance

Enhanced DDR5 performance

Comprehensive memory tuning options are the cornerstone of B850 motherboards. The B850M MAX GAMING WIFI maximizes the potential of your DDR5 modules, from entry-level to extreme-speed kits.³

For entry-level modules without EXPO^™ support, ASUS Enhanced Memory Profile (AEMP) automatically detects memory chips and provides optimized profiles for enhanced performance.

For those looking to surpass stock DDR5 speeds, the B850M MAX GAMING WIFI offers extensive AMD Extended Profiles for Overclocking (EXPO^™) support and a wide array of UEFI settings for further performance tweaks.⁴

Three M.2 slots (up to 128 Gbps)

B850M MAX GAMING WIFI offers a total of three M.2 slots, including one that supports data-transfer speeds of up to 128 Gbps via PCIe 5.0, and two that support PCIe 4.0. This enables quicker boot-up and app load times with OS or application drives.⁵

Graphic depicting different M.2 slots on a motherboard.

Cooling

Cooler by design

The B850M MAX GAMING WIFI motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.

VRM heatsink and thermal pad

Massive VRM heatsink and essential thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance.

4-Pin PWM/DC fan

Each onboard header supports auto-detection of PWM or DC fans.

AIO pump header

A dedicated PWM/DC header supports self-contained water-cooling setups.

Multiple temperature sources

Each header can dynamically reference three thermal sensors. Fan Xpert 2+ lets you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.

Passive chipset heatsink

An aluminum passive chipset heatsink ensures optimal cooling and stable performance. It is more durable and longer-lasting than heatsinks with fans, which can be vulnerable to the buildup of dust and debris.

Smart protection

A dedicated integrated circuit protects each fan header from overheating and excess current.

Smart Cooling precision

ASUS Fan Xpert 2+

ASUS Fan Xpert 2+ software provides comprehensive control over fans. An Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans can also be controlled via the UEFI BIOS.

Cooler compatibility

ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new motherboards, empowering you to build your dream gaming rig.⁷

See compatible AIO coolers

ASUS motherboard and AIO cooler on a table.

Flexibility

Empowering connections

This motherboard offers a versatile range of connectivity, including support for WiFi 6, PCIe 5.0 slot and an arsenal of USB ports which includes Type-C^® connections.

WiFi 6

USB 10Gbps

PCIe 5.0

PCIe 5.0 slot

USB 5Gbps

WiFi 6

The WiFi 6 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 1.2Gbps. Perhaps more importantly for power users, it's optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6.⁶

Learn more about WiFi 6

High Speed Transferring

Numerous USB ports support high-end rigs loaded with peripherals, including two rear USB Type-A ports with transmission speeds of up to 10Gbps and a front USB Type-C^® connector with ultrafast USB 5Gbps for transmission speeds of up to 5Gbps.

PCIe 5.0 slot

The latest processors introduce PCIe 5.0 support, doubling data transfer speeds compared to PCIe 4.0, enhancing signal integrity, and providing backward-compatible CEM connectors and support for previous PCIe versions.

PCIe 5.0 x16

512Gbps

PCIe 4.0 x16

256Gbps

PCIe 3.0 x16

128Gbps

Customization

Personalization

The B850M MAX GAMING WIFI enhances the user experience across the board, from simplifying BIOS setting adjustments to offering customizable RGB lighting controls for a uniquely personal system aesthetic.

UEFI BIOS

The UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.

ASUS GlideX

Enable seamless screen sharing and control across PCs, tablets, and smartphones via wired or wireless connections, supporting multiple platforms.

ASUS DriverHub

Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.

Armoury Crate

Customize Aura Sync RGB and control ASUS devices. Includes product registration and updates.

Aura Sync

Complete RGB lighting control for enthusiast systems, ensuring seamless synchronization with compatible hardware.

Addressable Gen 2 RGB headers

Three addressable Gen 2 headers detect LED counts on compatible RGB devices, automatically adjusting lighting effects accordingly.

Image depicting B850M MAX GAMING WIFI ARGB connectors.

Customization

DIY friendly

The B850M MAX GAMING WIFI motherboard features EZ PC DIY innovations that simplify and speed up the PC building process, making DIY easy and convenient.

Build for the most advanced pc for gaming and creating

When only the fastest will do, ASUS motherboards deliver. With faster dual-channel DDR5 memory support, AMD EXPO^™ technology and PCIe^® 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an ASUS motherboard and AMD Ryzen^™ 9000, 8000, and 7000 Series processors.

^© 2024 Advanced Micro Devices, Inc. All rights reserved. AMD, the AMD Arrow logo, Radeon, Ryzen and combinations thereof are trademarks of Advanced Micro Devices, Inc. Other product names used in this publication are for identification purposes only and may be trademarks of their respective owners.

On the back of the motherboard. ↑
Availability of ASUS AI Advisor may vary by region.
AI Advisor functions may vary by platform. ↑
Memory overclocking may vary between CPU series. Please refer to the spec table for detailed information.↑
Supported memory types, data rates (speed), and number of DRAM modules vary depending on the CPU and memory configuration. For more information, please refer to the CPU/Memory Support List under the Support tab on the product information page or visit https://www.asus.com/support/download-center/.↑
Actual transmission speeds will be lower than the theoretical maximum speed.↑
Actual speed varies, and depends on networking conditions.↑
Image(s) or Video(s) for reference only.↑
