Compact Type6 Module,Intel® Core™ i3/i5/i7/Celeron® Processors, DDR4-3200MHz SO-DIMMs, Four independent displays, DisplayPort, HDMI, VGA, and LVDS/eDP
  • Intel® Core™ i3/i5/i7/Celeron® Processors ( Tiger Lake UP3)
  • 2xDDR4-3200 Non-ECC SO-DIMMs, up to 64GB
  • 8x USB2.0, 4xUSB3.2, 1xPCIe3.0x4, 1xPCIe3.0x1, 2x SATAIII
  • VGA, LVDS/eDP, HDMI and Display port
  • ATX: +12V, +5VSB ; AT: +12V
  • Optional Industrial SKU: -40°C to 85°C

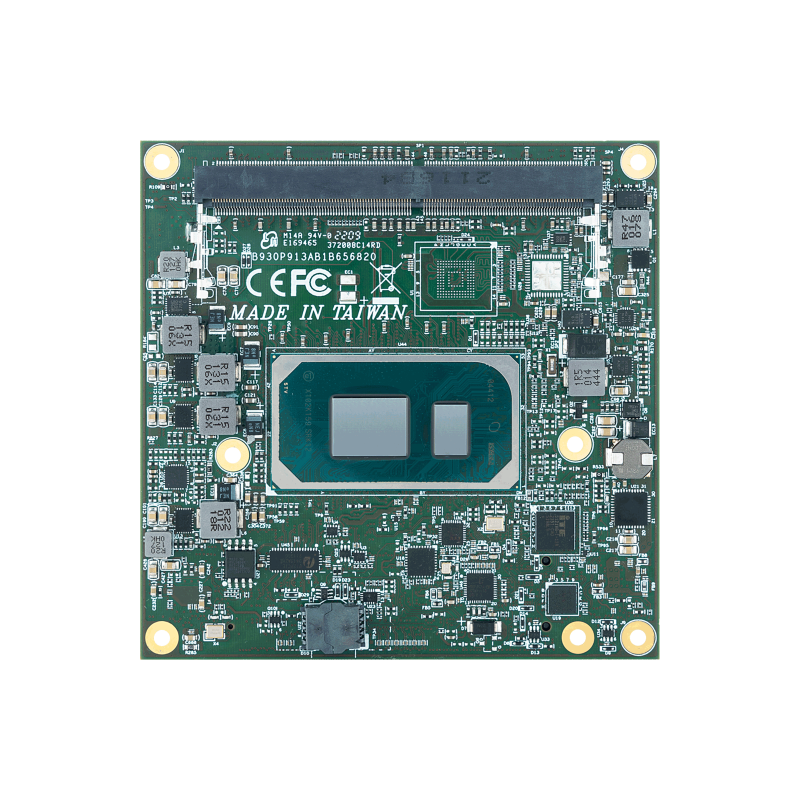

TGLC6-IM-A front view

Asus TGLC6-IM-A is designed with Intel® Tiger Lake processor with Type 6 pin definition. It brings three important factors including DDR4 memory support, PCIe Gen3 support, and USB 3.2 Gen2 support. Extend PCIe Gen3 ports in TGLC6-IM-A can support high speed IO card for more applications. In the meantime, it's compatible with Type 6 carrier board.

As the world’s No.1 motherboard brand, ASUS offers industrial motherboards with durable, industrial-grade components for reliable 24/7 operation in harsh environments and use in different vertical markets. ASUS provides a faster time-to-market with customization and motherboard modulation by leveraging over 30 years of design and innovation expertise, world-class after sales service, material supply flexibility, the ability to respond rapidly to forecast changes and long-term technical support, enabling customers to find the perfect solution to match their requirements.
