TUF H310-PLUS GAMING
- TUF Protection: SafeSlot, ESD Guards, protección sobre voltaje en DDR4, Digi+ VRM, y un panel traserio I/O de acero inoxidable para mayor durabilidad
- Componentes de grado militar TUF: TUF LANGuard, TUF Chokes, Capacitores TUF, y MOSFETs TUF MOSFETs para una máxima durabilidad
- Fan Xpert 2+: Ensures every fan achieves the best balance of cooling performance and acoustics
- Aura Sync RGB: Sincroniza la iluminación LED con una amplia gama de equipos/accesorios compatibles
- M.2 nativo: Velocidades de almacenamiento ultrarrápidas
Arm Your Battlestation
TUF Gaming motherboards are specially designed and tested to survive and thrive in conditions where other boards would struggle. Engineered with highly durable components, these motherboards deliver unwavering stability for gaming sessions that last as long as you demand.
When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, the best compatibility, and complementary aesthetics from components to case.
USB 2.0 Ports
2 x USB 3.1 Gen 1 ports
PCI Express 3.0
．ASUS SafeSlot Support
．Dedicated audio PCB Layers
DIGI+VRM & EPU
DDR4 2666 / 2400 / 2133 support
Support 8th Gen
Intel® Core& Processor Intel® LGA1151 Socket
2 x Front USB 3.1 Gen 1
10Gb/s M.2 support
SATA & PCIE x 2 mode
Intel® H310 Chipset
4 x SATA 6Gb/s Ports
Easy PC DIY Experience
TUF Gaming motherboards offer easy and safe DIY builds by leveraging great design, innovative engineering, and strong partnerships with major component manufacturers. The unrivalled combination of military-grade TUF Components, TUF Protection and the TUF Gaming Alliance means that you can rest assured that your gaming rig will go the distance.
TUF gaming alliance
TUF Gaming Alliance is the marque of collaboration between ASUS and major PC-component manufacturers, including trusted brands like Antec®, Apacer®, Ballistix, Cooler Master®, Corsair®, Deepcool, Enermax, G.Skill, GeIL®, In Win, Scythe, SilverStone, Team Group and XPG. A growing range of compliant parts, from PC cases and power supplies to CPU coolers and DRAM, guarantee both compatibility and aesthetic harmony. We're also continually increasing our partnerships to make the TUF Gaming Alliance ever stronger.
Protect your graphics card investment
SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using a new insert-molding process, SafeSlot integrates fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.
Electrostatic discharge protection
ESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10kV of air discharge and +/- 6kV of contact discharge — greatly surpassing the respective industry standards of +/- 6kV and +/- 4kKV
Precision control for stable power
The Digi+ VRM voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and ultra-clean power delivery to the CPU at all times.
DRAM OVERVOLTAGE PROTECTION
Short-circuit damage prevention
Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.
Stainless-steel back I/O
3X-better corrosion resistance
TUF's corrosion-resistant stainless-steel back I/O panels are bonded with chromium oxide ― so they can endure a 72-hour salt-spray test, compared to the industry standard of just 24 hours.

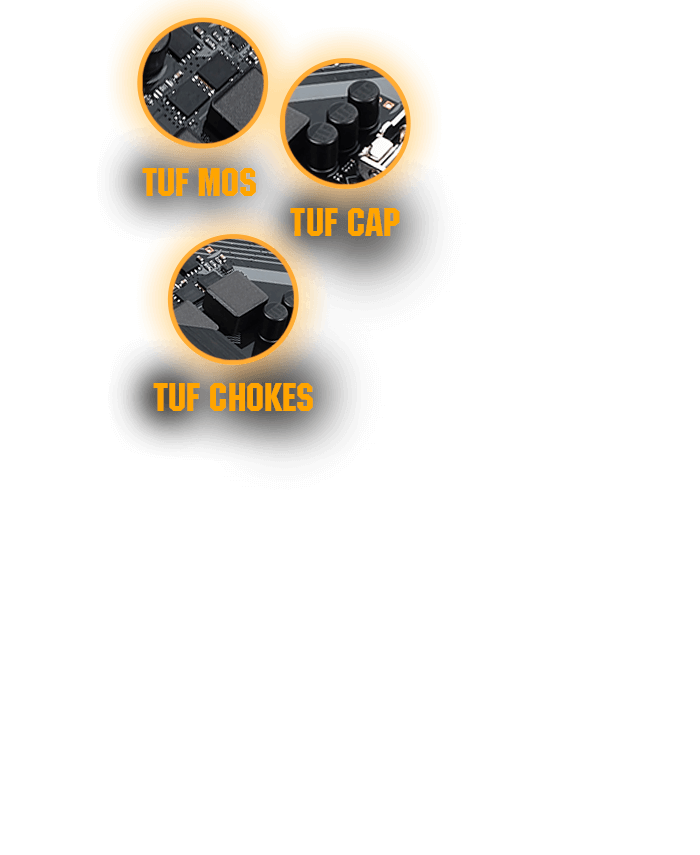

Certified military-grade TUF chokes deliver rock-steady power to the CPU, helping to improve system stability.
+20% temperature tolerance and 2.5X-longer lifespan.
Certified military-grade MOSFETs with lower RDS(on)*.
*Lower RDS(on) results in better power efficiency and reduced heat generation.
PERFORMANCE LEVEL UP
FLEXIBLE COOLING CONTROLS

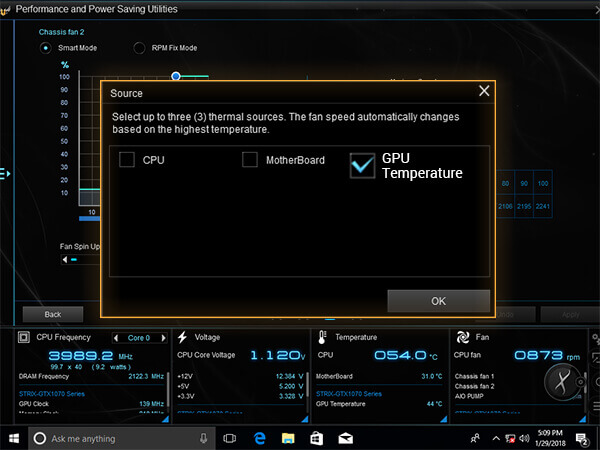

Fan Xpert 2+
System temperatures are key to a stable gaming rig ― especially GPU temperatures. TUF Gaming motherboards include Fan Xpert 2+ software that's able to intelligently control system fans based upon the input of multiple sensors, including the temperature of ASUS graphics cards*. This ensures that your TUF Gaming system stays perfectly cooled, no matter how long you play.
* ASUS GeForce 700 and later cards supported.

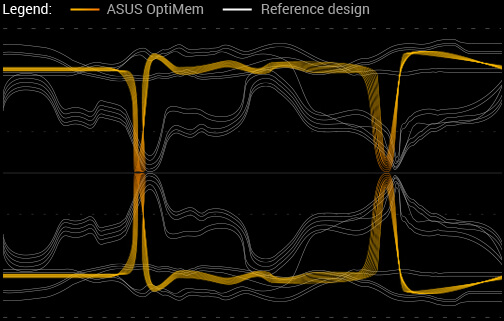

Improved DDR4 Stability
ASUS OptiMem preserves memory signal integrity by routing traces and vias to the optimal PCB layer, and our T-Topology trace layout ensures time-aligned signaling by balancing trace lengths between memory slots. These enhancements allow the TUF Gaming motherboards to support a wide range of dual and quad-DIMM memory kits, while providing your rig with the stability it needs to deal with any type of workload - whether you're gaming or running intensive applications.

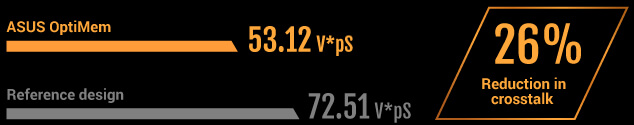

ASUS OptiMem advantage:
ASUS OptiMem benefits:
Improved memory stability and compatibility
Allows lower memory latencies at equivalent voltages
Improved memory frequency margin
Tested by using Synopsys HSPICE simulation software

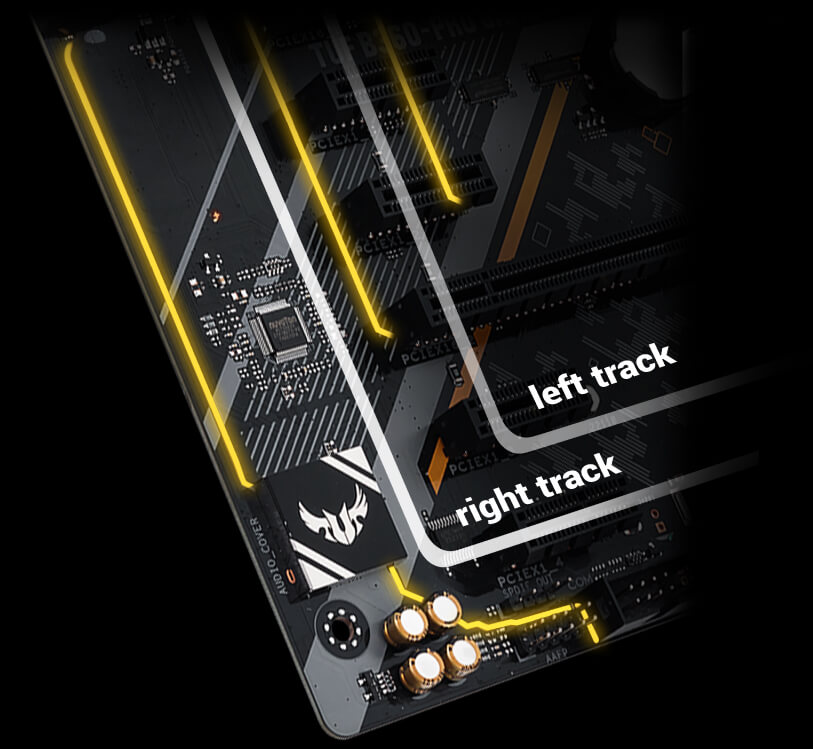

Shielded Audio, Superior Sound
Intelligent design and premium hardware create audio quality unlike anything you've ever experienced!
Separates analog/digital signal domains, significantly reducing multi-lateral interference.
Dedicated channel layouts
Separate layers for left and right channels to preserve the quality of the sensitive audio signals.

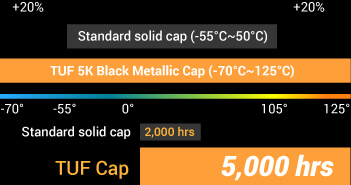

Premium Japanese audio capacitors provide warm, natural, and immersive sound with exceptional clarity and fidelity.
OUTSHINE THE COMPETITION
A well-tuned system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable hardware.Learn more about ASUS Aura Sync.
- Color cycle
- Flash & dash
- Glowing Yo Yo
- Starry night
- Music effect

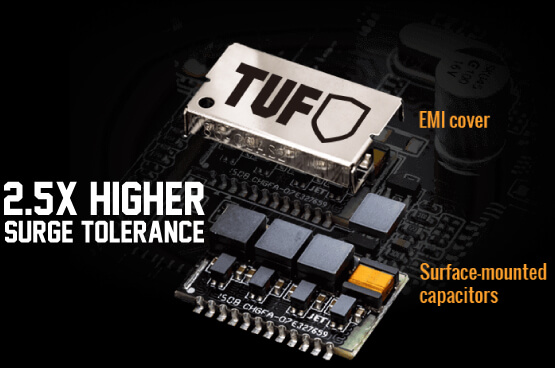

Best surge protection
TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity.
ULTRAFAST TRANSFER SPEED

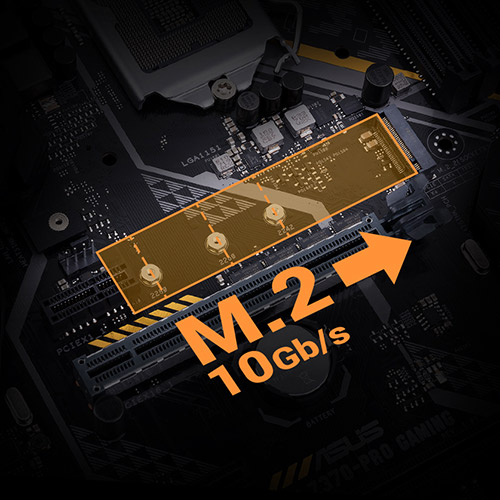

Speed Up with Onboard M.2
With x2 PCI Express® 2.0 bandwidth, M.2 supports up to 10Gbps data-transfer speeds. It's the perfect choice for an operating system or application drive, making your PC and apps work as fast as possible.
Intel CPU and Chipset features
INTEL CPU AND CHIPSET FEATURES
The Intel® H310 is a single-chipset design that supports 8th Generation Intel® Core™ LGA1151 processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, the H310 chipset provides a maximum of four USB 3.1 Gen 1 ports, four SATA 6Gbps ports, and 10Gbps M.2 and PCIe 2.0 lane-speed support, for faster data retrieval. Intel H310 also supports integrated-graphics, so you'll enjoy the very latest in graphics performance.
Ready for Socket 1151 for 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors
This motherboard supports Socket 1151 for 9th Gen and 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors, with integrated graphics, memory and PCI Express controllers to support onboard graphics output with dedicated chipsets, dual-channel (4-DIMM) DDR4 memory and 16 PCI Express 3.0/2.0 lanes for great performance.
