PRIME H270M-PLUS

  • Overview
  • Specifications
  • Review
  • Support
Intel LGA-1151 mATX motherboard with LED lighting, DDR4 2400MHz, dual M.2, Intel Optane Memory Ready, HDMI, SATA 6Gb/s, USB 3.0
  • 5X Protection III: Multiple hardware safeguards for all-round protection
  • Fan Xpert 4 Core: Flexible controls for ultimate cooling and quietness
  • Dual native M.2 support: lightning-fast storage speeds
  • USB Type-C: Convenient reversible connectivity
  • Intel®Optane™ memory ready: Exploit the latest high-speed storage technology
Win11
OP product mainImage
Reliable Stability and Compatibility
Superb Performance
Optimized Cooling
Game in Your Way
All-round Energy Saving
Ultrafast Transfer Speed
Easy PC DIY
One-Stop Controls
1 VGA Port
2 DVI-D Port
3 5Gb/s USB Type-C
4 HDMI
5 USB 3.0 Ports
6 LAN
7 USB 2.0 Ports
8 Audio
9 PCI Express 3.0(GEN3)
CFX Support
ASUS SafeSlot Core Support
10

Audio Features

  • Audio Shielding
  • Dedicated audio PCB Layers
  • Premium Japanese Audio Capacitors
11 DIGI+VRM & EPU
12 TPM Header
13 DDR4 2400/2133 Support
14 Support 14nm CPU
Intel® LGA 1151 Socket
15 2 x Front USB 3.0
16 32Gb/s M.2 x 4 Support
Intel® OptaneTM Memory Ready
17 Intel® H270 Chipset
18 16Gb/s M.2 x2 support
19 SATA 6.0Gb/s Ports

ASUS Prime is the next evolution of the ASUS motherboard, born of a pedigree that stretches back to 1989. Our team of world-class engineers are passionate about empowering everyone to enjoy the benefits of customization and tuning, and the driving force behind the development of Prime is to make advanced enthusiast controls easily accessible — maximizing performance, stability and compatibility for the very best DIY PC experiences. Simply stated: it's time for Prime.

Reliable Stability and Compatibility
Built to Last
ASUS is the world's foremost motherboard manufacturer, renowned for our unique Design Thinking approach. Our exhaustive testing exceeds industry standards, supported by high-quality components for exceptional real-world protection. Our motherboards are proven to be compatible with more than 1,000 components and devices, and each new model undergoes a minimum of 8,000 hours of strict validation. ASUS gives you the peace of mind of knowing that your motherboard is fit for all environments and applications. By choosing ASUS, you also gain the freedom to select outstanding component options, for trouble-free DIY experiences.

5X

Protection III

Hardware safeguards to ensure long-term durability.

520+

DDR4 Compatibility

Industry-leading DDR4 memory compatibility for best flexibility and reassurance.

1000+

Compatible Devices

Compatibility with a range of CPUs, memory modules, graphics cards and more.

8000+

Validation Hours

Extensive testing with latest components for enhanced reliability, compatibility and safety.

Prime 200 motherboards are engineered with industry-leading 5X Protection III, employing the finest components, excellent circuit design, and exacting standards to guarantee the quality and long-term durability of your motherboard. That means exceptional protection and stability for your build — thanks to decades of engineering experience from the world's leading motherboard brand.

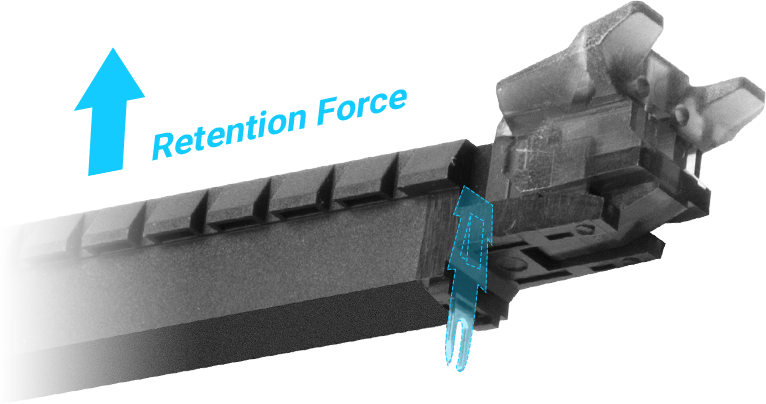

SafeSlot Core
Fortified PCIe slot prevents damage
SafeSlot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design that's anchored to the motherboard by a special hook, Safeslot Core provides 1.6x stronger retention and 1.3x greater shearing resistance than standard expansion slots.

ASUS Prime motherboards have strengthened solder points around both the PCIe and DIMM pins.

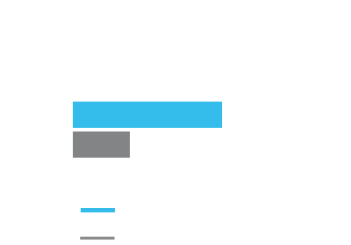

LANGuard
Pumped-up throughput. 2.5x higher surge tolerance.
ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors to ensure a more reliable connection and better throughput, plus electrostatically guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges.
* ESD result is undertaken by individual LANGaurd

EMI cover

Anti-EMI
surface-mounted
capacitors

Overvoltage Protection
World-class circuit-protecting power design
An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies.
* Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.

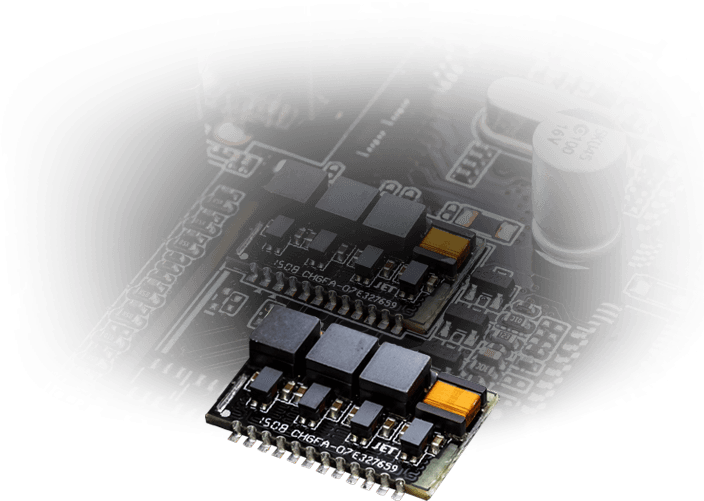

DIGI+ VRM

Precision control for stable power
ASUS-exclusive DIGI+ VRM intelligently delivers power to the processor based on real-time demands, reducing energy waste and improving system stability.

DRAM Overcurrent Protection

Short-circuit damage prevention
Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.

Stainless-Steel Back I/O

3x corrosion-resistance for greater durability
Corrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.

* Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.

ESD Guards
Electrostatic discharge protection
ASUS ESD Guards prevent damage from electrostatic discharge, up to +/- 10kV for air discharge and +/- 6kV for contact discharge, arranged in an active-protective-circuit design that prolongs the life of components.
1
LAN port
ESD TVS diode protection on the LAN circuit.
2
USB connectors
TVS diodes for surface-mount and dual-inline packages.
3
VGA connectors
Additional on-circuit ESD TVS diodes to protect D-Sub functionality.
4
Keyboard and mouse connectors
Additional on-circuit ESD transient-voltage-suppression diodes.

* Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.

Proven Compatibility
Tested to be compatible with 1,000+ CPUs, DDR4 memory modules, graphics cards and more
Having the freedom to pick and choose the parts that go into your machine is at the heart of PC DIY. Our extensive certification program focuses on providing the very best compatibility with the widest range of components and devices, giving you the freedom to build and upgrade without frustration. Compatible today and compatible far into the future – that's the ASUS way.
Extensive List of Supported Devices
View supported devices and Qualified Vendor List for compatible memory
The superior compatibility of Prime 200 series is evidenced by our extensive list of supported devices — which includes thousands of compatible components — and our Qualified Vendor List that identifies memory compatibility. That means more choices for worry-free PC-building experiences.
Great Compatibility
with ASUS Products
ASUS offers a suite of proprietary components — graphics cards, sound cards, optical drives — that perfectly complement the Prime 200 series, so you can complete your custom motherboard build with confidence!

* Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.

Top-to-bottom Reliability
ASUS motherboards have superb endurance. We verify this by subjecting every board to more than 8,000 hours of stringent tests. A barrage of burn-in, environmental, compatibility, software and safety tests confirm that our motherboards are exceptionally robust. It also shows that ASUS reliability surpasses industry standards, ensuring that every component is designed to function flawlessly in any environment.
8000+
VALIDATION HOURS
Temperature and Humidity Test
Ensures components withstand extreme conditions.
Thermal Measurement Test
Ensures that the system remains cool and stable under the heaviest loads.
Insertion Test
Every port and connector is put through repeated installation cycles.
Aging Test
Up to 48-hour aging test ensures reliability.
Power Consumption Test
Checked for world-class energy efficiency.
Temperature and DC Margin Test
Ensures that the motherboard is capable of coping with Voltage fluctuations caused by varying temperatures.
Thermal Shock Test
Ensures ability to survive temperature changes during transportation.
Non-Operation Shock Test
Built to withstand jolts that may occur during shipping.
Burn-In Test
Every component is checked to ensure flawless operation in any environment.
Installation Test
Connector placement is double-checked to ensure hassle-free installation.
Drop Test
Drop tests from various heights ensure durability.
Salt and Spray Test
Tested for I/O reliability, prolonged lifespan and rust-resistance.
Superb Performance
DDR4 Support
With DDR4, you'll accelerate memory frequencies up to an incredible to 2400MHz! And ASUS works with almost every DDR4 memory vendor, so you're assured the best compatibility.

Enjoy the DDR4 benefits with Prime 200 series. (DDR4 vs DDR3)

2X

faster write
read speeds

2X

larger
capacity

20%

lower power
consumption

* Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.

Native M.2/NVMe PCIe RAID Support for
Lightning Fast Storage Speed
Not satisfied with single-storage device read/write speeds? Then join the fast lane and build a RAID 0 array using two PCIe storage drives to enjoy data transfers at lightning speeds

M.2+M.2
via
Hyper M.2 x 4 Mini*

M.2+PCIe

PCIe+U.2
via
Hyper Kit*

*Purchase separately
Optimized Cooling
Advanced Controls for Ultimate Cooling and Quietness
ASUS Prime 200 series motherboards feature best-ever cooling capability, controllable from Fan Xpert 4 Core and from the UEFI.

  • Multiple temperature sources

    Each header can monitor and react to dedicated thermal sensors.

  • 4-pin PWM/DC fan

    Every onboard header supports auto-detection of PWM or DC fans.

  • Smart protection

    A dedicated integrated circuit that protects each fan header from both over-temperature and over-current.

* Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.

  • Auto-Tuning mode

    Scans fan parameters and all fans with a single click.

  • Extreme Quite mode

    Reduces the CPU fan speed to below the default minimum, for extra-quiet operation and power savings during light loads.
Game in Your Way

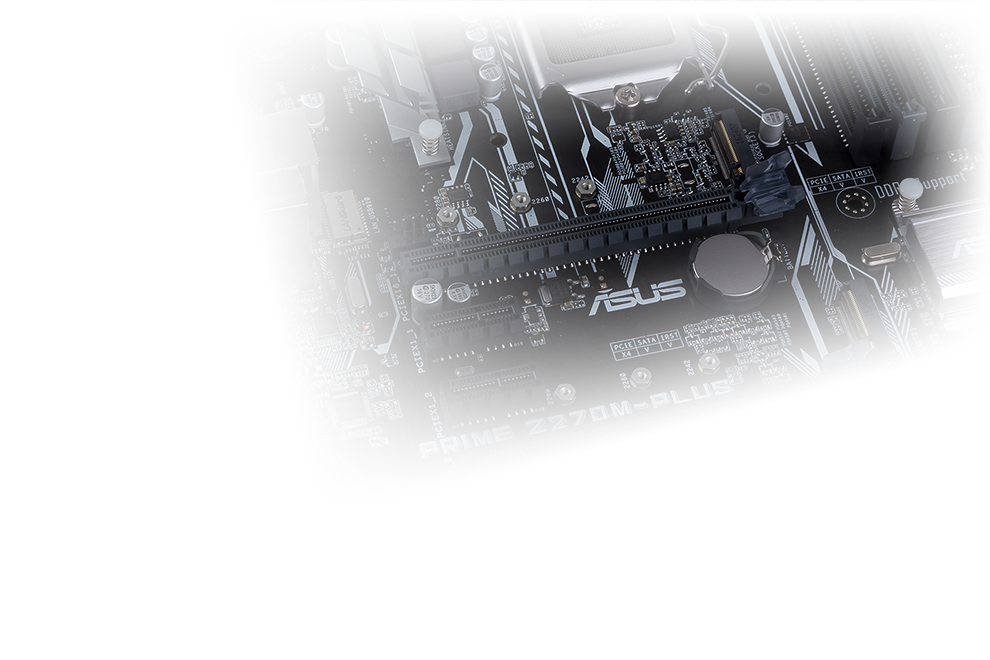

Brighten Up Your Build
LED-illuminated control for PCIe slot
Built-in LED lighting options illuminate your build in a variety of eye-catching styles.

* Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.

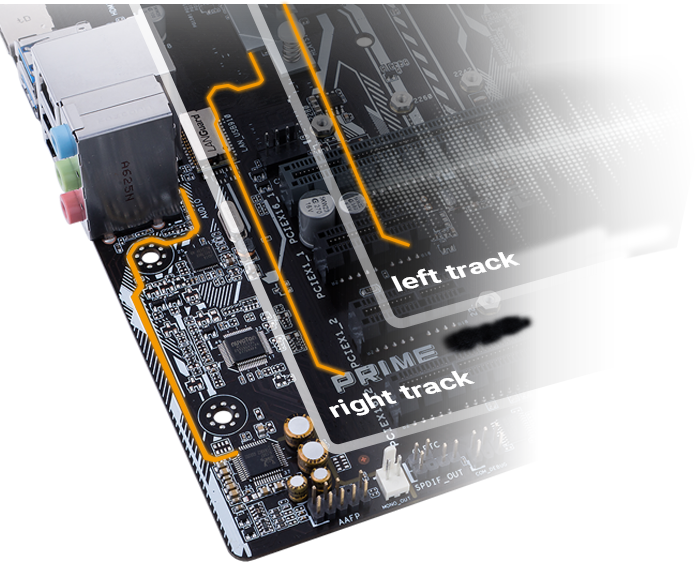

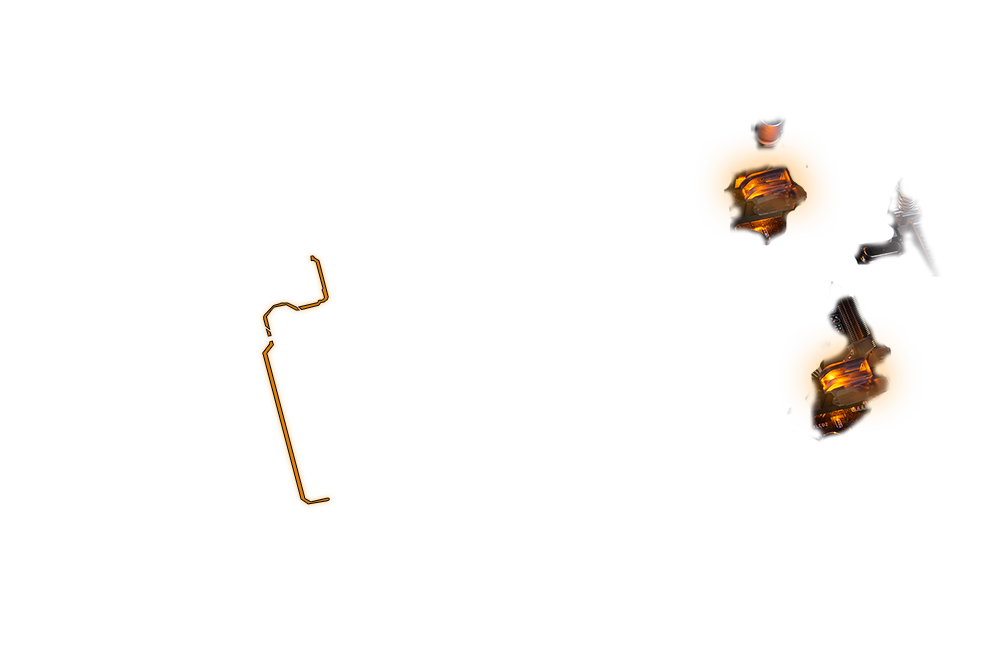

Gaming Audio
Combined onboard features deliver elevated audio
Intelligent design and premium hardware create audio quality unlike anything you've ever experienced!
1
Noise isolation

Audio shielding ensures precision analog/digital separation and greatly reduced multi-lateral interference.

2

Separate layers for left and right tracks ensures both channels deliver consistent, equal quality.

3
Audio Enjoyment

Premium Japanese audio capacitors provide warm, natural, and immersive sound with exceptional clarity and fidelity.

* Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.

All-round Energy Saving
Energy Efficient Design

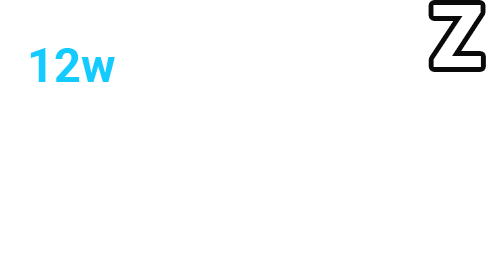

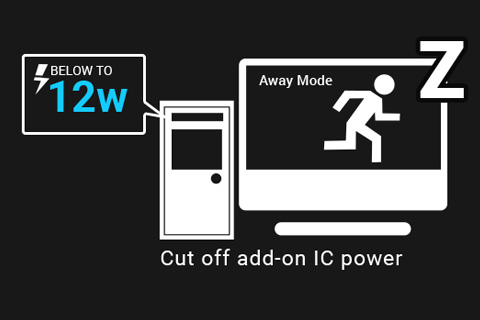

EPU

With the Energy Processing Unit you'll enjoy system-wide power savings — with CPU-wattage reductions of up to 12W*! The EPU automatically optimizes power consumption and maximizes savings with Away mode: A setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers and reducing power to the graphics cards while you're away.

*Intel LGA1151 i5-7400T, 35W | PRIME Z270-A | DRAM: Samsung 2133MHz 8GB*2 | PSU : Seasonic 400W (SS-400FL, efficiency 90% @ 20% loading) | Fan:  VETTE Cooler  | HDD : Samsung SSD 840 PRO 256GB| Display Output: HDMI | Windows 10

Ultrafast Transfer Speeds

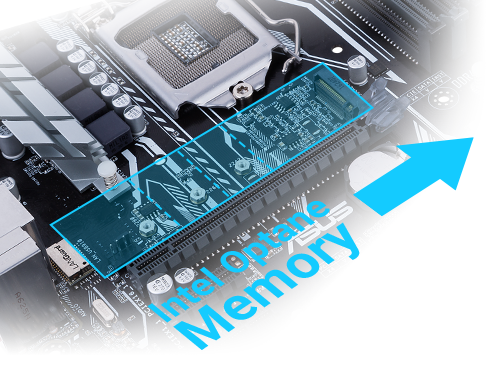

Intel Optane Memory Ready
Intel® Optane™ Memory* is a revolutionary (non-volatile memory) technology supported by Prime 200-series motherboards. Intel Optane Memory modules accelerate attached storage to reduce boot and load times, so everything feels faster and more responsive.
*Supports 7th Generation Intel® processors. Requires driver and BIOS update.

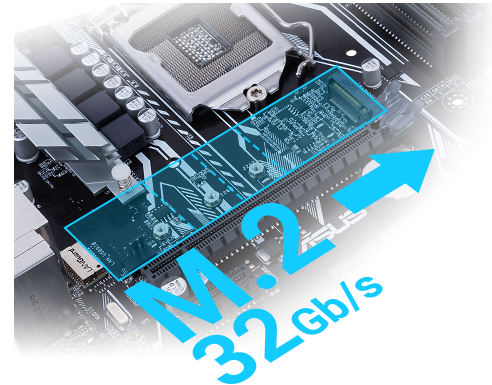

Speed Up with Onboard M.2 Up to 32Gb/s
With x4 PCI Express 3.0/2.0 bandwidth, M.2 supports up to 32Gb/s data-transfer speeds. It is the perfect choice for an operating system or application drive, making your whole PC or professional apps work as fast as possible.

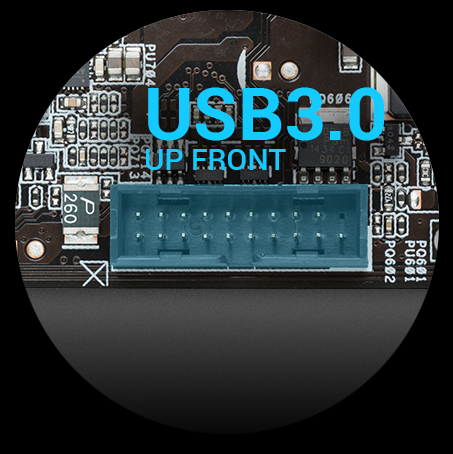

Instant front-panel USB 3.0 Experience
We've put USB 3.0 right where you need it - four super-speed ports on the front panel. Experience data-transfer speeds up to 10X faster than USB 2.0 with instant plug-and-play connectivity, so no more back-breaking contortions in the hunt for hard-to-reach rear ports!

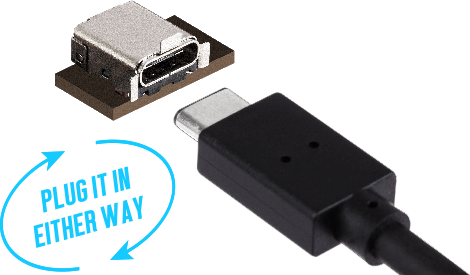

USB Type-C for convenient connectivity

USB Type-C delivers futureproof device compatibility and high-speed connectivity, enabling data rates of up to 5Gb/s. Along with being 33% narrower and nearly 50% slimmer than traditional USB Type-A ports, the USB-C features a fully reversible port design — so connections are made the first time, every time.


* Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.

Easy PC DIY

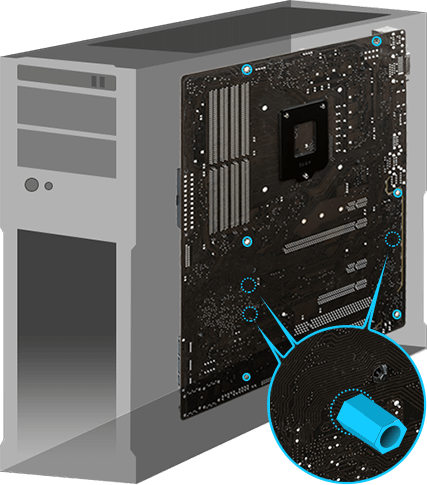

Safe Motherboard Mounting
Component-free areas to minimize damage risk
Fitting your ASUS motherboard is now safer than ever. The comprehensive component-free ‘safe zones' around every case-mounting hole minimizes the risk of damage and short circuits caused by contact — so you'll assemble your PC with total confidence!

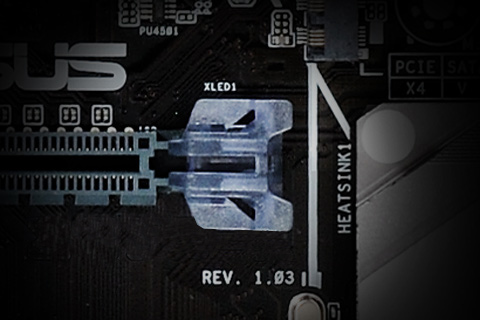

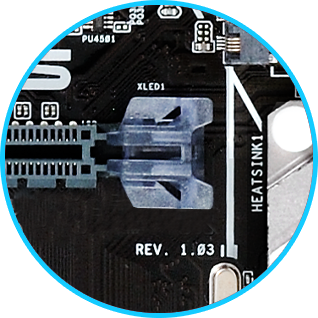

Q-Slot
Effortless PCI Express component removal
The large winged clip is easy to reach and easy to operate. Just press the Q-Slot clip lightly, and the graphics card pops out. Installing or removing even the biggest graphics cards is no sweat!

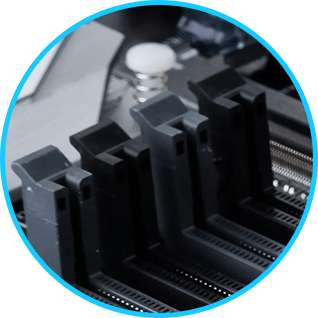

Q-DIMM
Easy memory removal
Even if you work with a smaller case, just push down on the one-sided clip and push or pull RAM modules in or out — removing memory is that simple!
One-Stop Controls

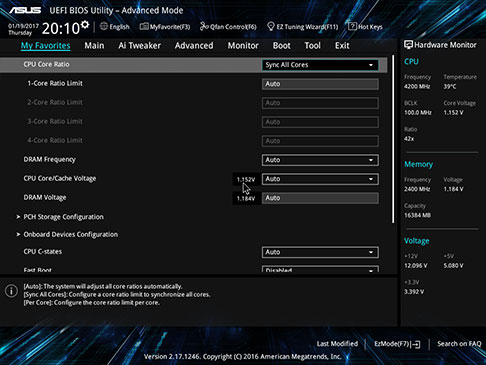

Media-acclaimed UEFI BIOS
The smoothest, slickest mouse-controlled graphical BIOS has been improved to make it even more appealing. Whether you're a PC novice or a seasoned overclocker, EZ and Advanced modes help you find your way, quickly and easily.

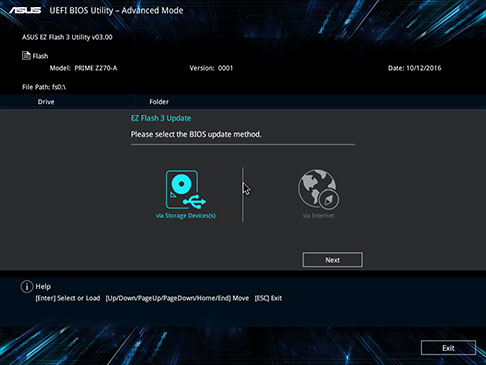

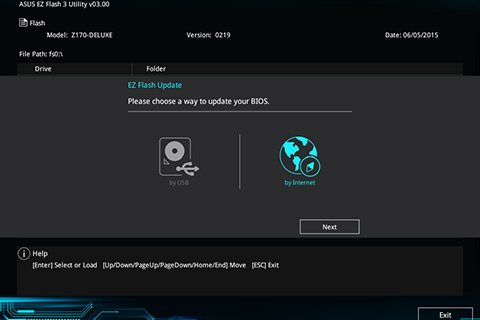

EZ Flash 3
Update the BIOS via the internet, without leaving the BIOS interface.

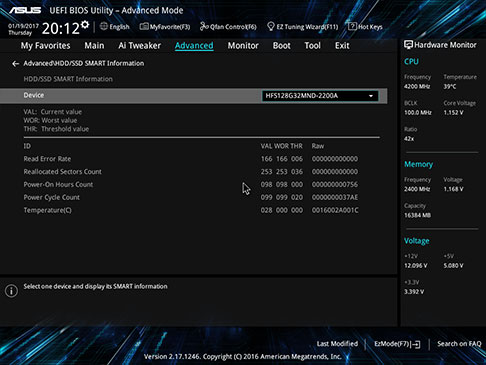

S.M.A.R.T
Check your storage device Self-Monitoring, Analysis, and Reporting Technology logs to gauge reliability and possibly to determine potential failures.

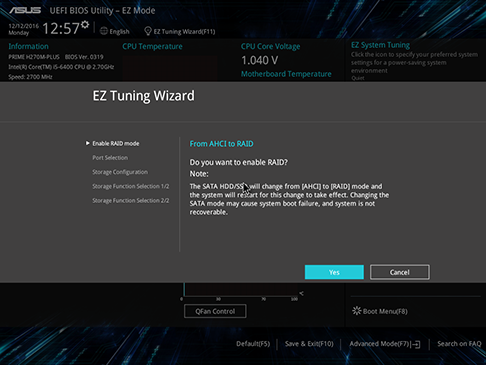

EZ Tuning Wizard
Streamline your RAID configuration for faster data retrieval and backups.
My Favorite
Quickly find tuning options and add preferred tools to the list.
EZ mode
  • Intuitive graphical fan control Fine-tune individual fans simply by dragging a curve with the mouse.
  • EZ XMP Improve DRAM performance with a click.
  • SATA information Easily display SATA port details for device identification.
  • Fast clock adjustment Use mouse controls to quickly change time and date settings.
Advanced mode
  • Last modified log Track last change and save preferred profiles onto a USB drive.
  • SATA port renaming Rename SATA ports for easy identification.

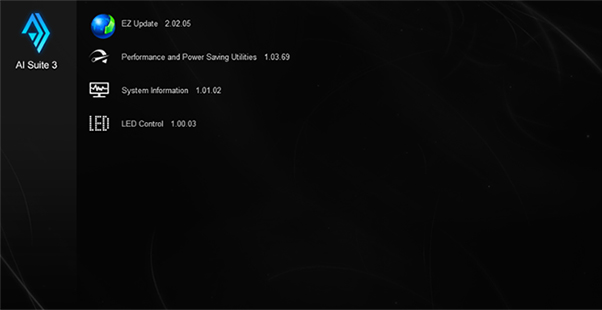

AI Suite 3
One-stop access to innovative ASUS features
ASUS AI Suite 3 offers a brand-new user experience through a clearer and more attractive interface with support for larger monitors. It consolidates all exclusive ASUS features into one simple-to-use package, allowing you to supervise overclocking, energy consumption, fan speeds, voltages and more. This all-in-one app offers diverse and easy-to-use functionality, with no need to switch back and forth between different utilities.

Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.

Intel CPU and Chipset Features
Intel® H270 Chipset
Intel® H270 is a single-chipset design that supports 7th & 6th generation Intel LGA1151 Core™ i7 / Core i5 / Core i3 / Pentium® / Celeron® processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, H270 provides a maximum eight USB 3.0 ports, six SATA 6Gbit/s ports, 32Gbit/s M.2 and PCIe 3.0 lane speed support for faster data retrieval. Intel H270 also supports integrated-graphics (iGPU) functions, so you'll enjoy the very latest Intel integrated graphics performance.
Ready for 7th Generation and 6th Generation Intel LGA1151 Core i7/Core i5/Core i3/Pentium/Celeron processors
The ASUS Prime 200 series motherboard supports 7th Generation and 6th Generation Intel Core™ i7/Core i5/Core i3/Pentium®/Celeron® processors in the LGA1151 package. Integrated graphics, memory and PCI Express controllers support onboard graphics output with dedicated chipsets, two-channel (4-DIMM) DDR4 memory and 16 PCI Express 3.0/2.0 lanes for great performance.
