[Motherboard] Kompatibilitas bifurkasi PCIE antara Kartu seri Hyper M.2 dan Kartu Grafis Add-On
Dukungan maksimum SSD M.2 akan bervariasi tergantung pada CPU yang berbeda.
Batasan dan Konfigurasi untuk instalasi SSD M.2
Restriksi
1. Perbarui ke BIOS terbaru sebelum menggunakan fungsi RAID pada CPU.

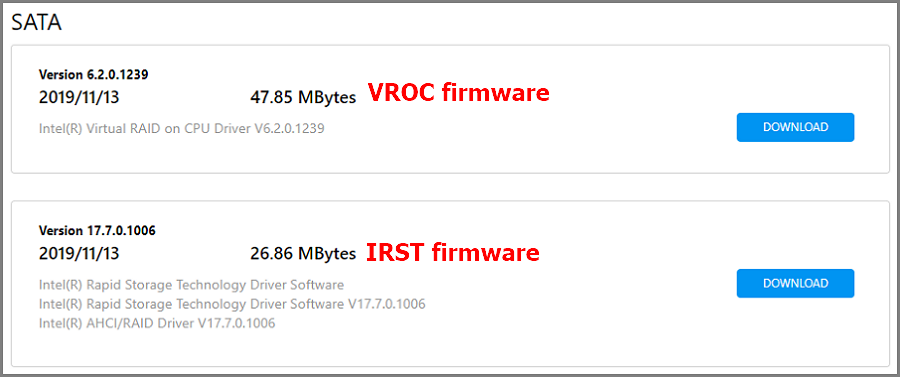

2. Untuk motherboard seri Z590, Z490, Z390 dan Z370, instal IRST versi 16 atau lebih tinggi untuk menggunakan RAID pada fungsi CPU. Hanya Intel SSD yang dapat mengaktifkan Intel RAID pada fungsi CPU di platform Intel.
3. Untuk motherboard seri X299, instal firmware VROC untuk menggunakan fungsi VROC. Hanya Intel SSD yang dapat mengaktifkan fungsi Intel VROC di platform Intel.
(Silakan merujuk ke Tanya Jawab ke-4 di bagian FAQ di bawah ini untuk mengunduh firmware)
4. Untuk ROG STRIX Z590-I GAMING WIFI, pastikan untuk menggunakan iGPU (Integrated Graphics Processing Unit) jika Anda akan menggunakan kartu Hyper M.2 series pada motherboard Anda.
Konfigurasi
Dukungan maksimum SSD M.2 akan bervariasi tergantung pada CPU dan motherboard yang berbeda. Ikuti petunjuk untuk memasang SSD M.2 Anda.

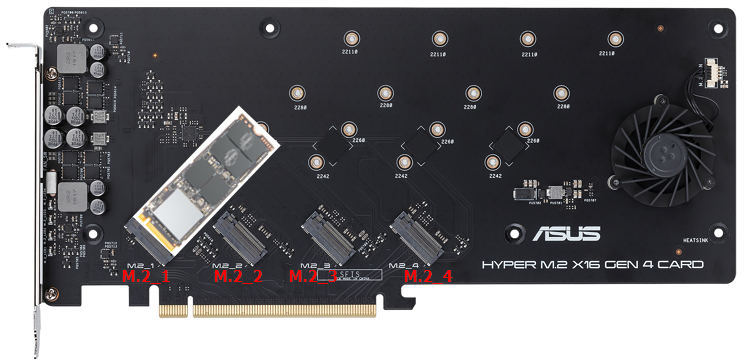

Satu SSD M.2
Dua SSD M.2
Tiga SSD M.2 (Ikuti gambar di bawah ini untuk memasang SSD jika Anda hanya akan memasang tiga SSD pada slot PCIe yang dapat membaca hingga empat SSD)

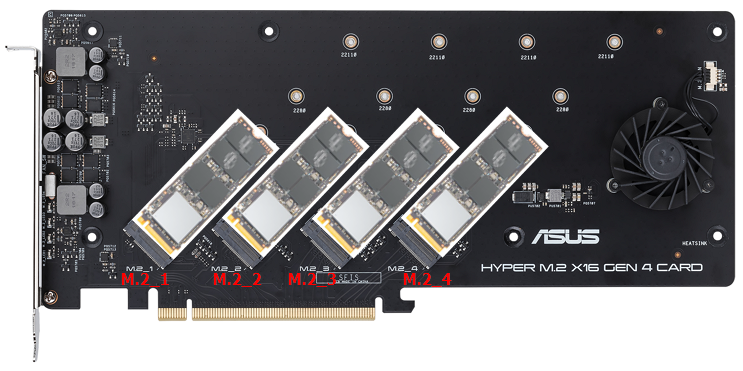

Empat SSD M.2
*Ikuti langkah-langkah di bawah ini untuk memasang SSD M.2 Anda jika slot PCIe motherboard Anda hanya dapat membaca tiga SSD M.2 pada daftar model.
Satu SSD M.2
Dua SSD M.2
Tiga SSD M.2
Tentukan jumlah SSD M.2 yang akan digunakan pada motherboard saat menggunakan Kartu Seri Hyper M.2.

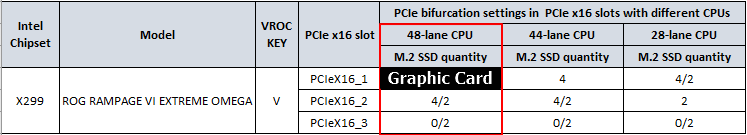

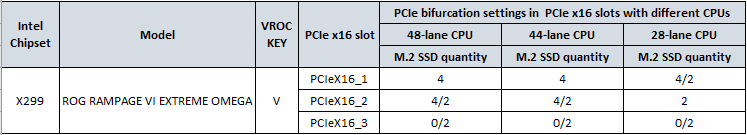

Langkah 1. Temukan nama motherboard Anda di daftar model. Ambil ROG RAMPAGE VI EXTREME OMEGA misalnya.
Langkah 2. Periksa CPU yang Anda gunakan. Untuk seri Intel, silakan periksa jalur PCI Express; Untuk seri AMD, silakan periksa nama model CPU.

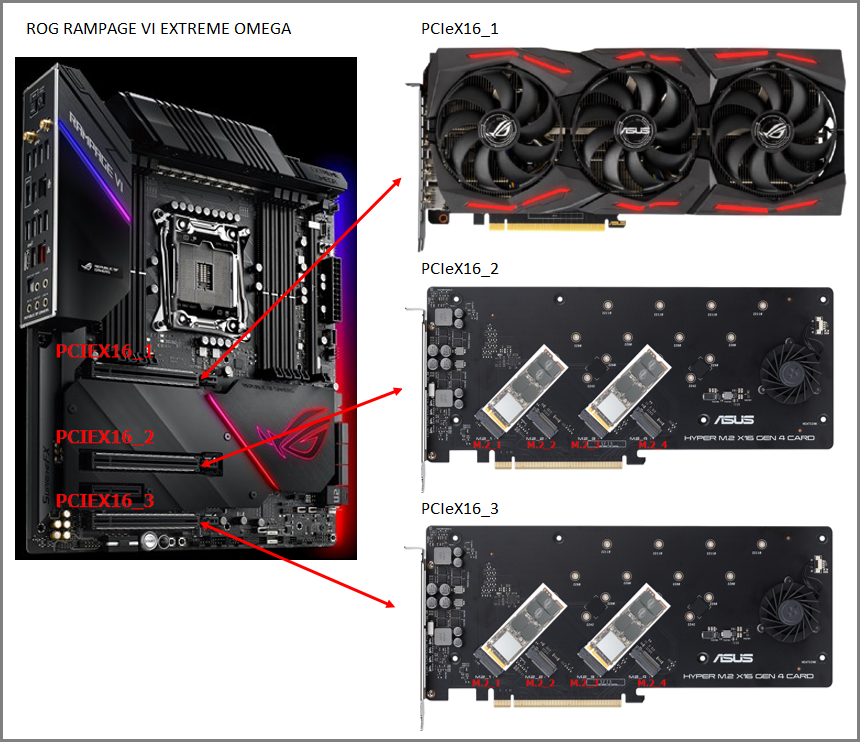

Langkah 3. Periksa slot PCIE yang akan Anda instal Add-On Graphic Cards. Contoh: CPU 48 jalur, memasang kartu grafis add-on di PCIEX16_1.

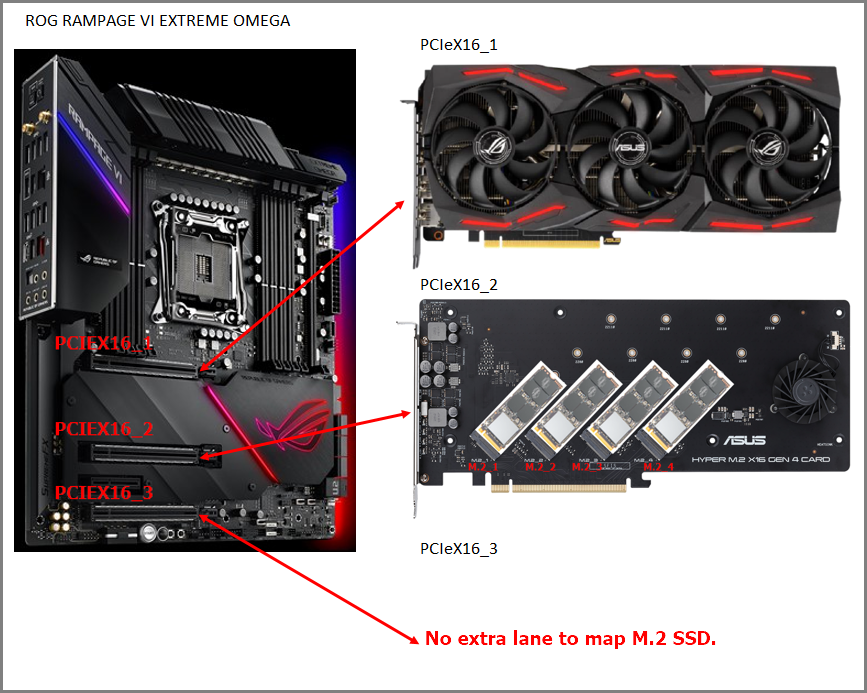

Langkah 4. Saat memasang empat SSD M.2 di PCIEX16_2, tidak ada lagi jalur tambahan untuk memetakan SSD M.2 di PCIEX16_3. Saat memasang dua SSD M.2 di PCIEX16_2, tersedia jalur tambahan untuk memetakan dua SSD M.2 di PCIEX16_3.
Model list (Diupdate pada Mei 2023)
INTEL
| Intel Chipset | Model | VROC KEY | PCIe x16 slot | PCIe bifurcation settings in PCIe x16 slots with different CPUs | ||
| 48-lane CPU | 44-lane CPU | 28-lane CPU | ||||
| M.2 SSD quantity | M.2 SSD quantity | M.2 SSD quantity | ||||
| X299 | ROG RAMPAGE VI EXTREME Encore | V | PCIeX16_1 | 4 | 4 | 4 |
| PCIeX16_2 | 4 | 4 | 2 | |||
| PCIeX16_3 | 2 | 2 | 1 | |||
| ROG STRIX X299-E GAMING II | V | PCIeX16_1 | 4 | 4 | 4 | |
| PCIeX16_2 | 4 | 4 | 2 | |||
| PCIeX16_3 | 2 | 1 | 1 | |||
| PRIME X299 EDITION 30 | V | PCIeX16_1 | 4 | 4 | 4 | |
| PRIME X299-DELUXE II | ||||||
| PRIME X299-A II | ||||||
| ROG STRIX X299-XE GAMING | ||||||
| ROG STRIX X299-E GAMING | ||||||
| PRIME X299-A | ||||||
| TUF X299 MARK 1 | PCIeX16_2 | 4 | 4 | 2 | ||
| TUF X299 MARK 2 | PCIeX16_3 | 2 | 2 | No support | ||
| PRIME X299-DELUXE | V | PCIeX16_1 | 4 | 4 | 4 | |
| PCIeX16_3 | 4 | 4 | 2 | |||
| PCIeX16_4 | 2 | 2 | No support | |||
| ROG RAMPAGE VI EXTREME OMEGA | V | PCIeX16_1 | 4 | 4 | 4/2 | |
| PCIeX16_2 | 4/2 | 4/2 | 2 | |||
| PCIeX16_3 | 0/2 | 0/2 | 0/2 | |||
| WS X299 PRO/SE WS X299 PRO | V | PCIeX16_1 | 4 | 4 | 4 | |
| PCIeX16_2 | 4 | 4 | 2 | |||
| PCIeX16_3 | 2 | 2 | No support | |||
| PCIeX16_4 | 1 | 1 | 1 | |||
| ROG RAMPAGE VI EXTREME | V | PCIeX16_1 | 4 | 4 | 4/2 | |
| PCIeX8_2 | 0/2 | 0/2 | 2 | |||
| PCIeX16_3 | 4/2 | 4/2 | 2 | |||
| PCIeX8_4 | 2 | 2 | No support | |||
| ROG RAMPAGE VI EXTREME OMEGA | V | PCIeX16_1 | 4 | 4 | 4/2 | |
| PCIeX16_2 | 4/2 | 4/2 | 2 | |||
| PCIeX16_3 | 0/2 | 0/2 | 0/2 | |||
| Intel Chipset | Model | VROC KEY | PCIe x16 slot | PCIe bifurcation settings in PCIe x16 slots with different CPUs | ||
| 48-lane CPU | ||||||
| M.2 SSD quantity | ||||||
| C422 | WS C422 PRO/SE | V | PCIeX16_1 | 4 | ||
| PCIeX16_2 | 4 | |||||
| PCIeX16_3 | 4 | |||||
| PCIeX16_4 | No support | |||||
| Pro WS C422-ACE | V | PCIeX16_1 | 4 | |||
| PCIeX16_2 | 4 | |||||
| PCIeX16_3 | 2 | |||||
| Intel Chipset | Model | VROC KEY | PCIe x16 slot | PCIe bifurcation settings in PCIe x16 slots with different CPUs | ||
| 64-lane CPU(Xeon-W) | 48-lane CPU(Xeon-SP) | |||||
| M.2 SSD quantity | M.2 SSD quantity | |||||
| C621 | Pro WS C621-64L SAGE Pro WS C621-64L SAGE/10G | V | PCIeX16_1 | 4 | 4 | |
| PCIeX16_2 | 4 | 4 | ||||
| PCIeX16_3 | 4 | 4 | ||||
| PCIeX16_4 | No support | No support | ||||
| WS C621E SAGE | V | PCIeX16_1 | No support | 4 from CPU2 | ||
| PCIeX16_2 | No support | 2 from CPU2 | ||||
| PCIeX16_3 | No support | 4 from CPU1 | ||||
| PCIeX16_4 | No support | No support | ||||
| PCIeX16_5 | No support | 4 from CPU1 | ||||
| PCIeX16_6 | No support | 2 from CPU2 | ||||
| PCIeX16_7 | No support | 4 from CPU2 | ||||
| Intel Chipset | Model | VROC KEY | PCIe x16 slot | PCIe bifurcation in PCIe x16 slot (Support PCIe Gen 4 SSDs) | ||
| Z390 | ROG MAXIMUS XI FORMULA ROG MAXIMUS XI CODE ROGMAXIMUS XI HERO (WI-FI) Call of Duty®: Black Ops 4 Edition ROG MAXIMUS XI HERO (WI-FI) ROG MAXIMUS XI HERO ROG STRIX Z390-E GAMING ROG STRIX Z390-F GAMING ROG STRIX Z390-H GAMING PRIME Z390-A TUF Z390-PRO GAMING TUF Z390M-PRO GAMING (WI-FI) TUF Z390M-PRO GAMING ROG ZENITH II EXTREME ALPHA | PCIeX16_1 | 3/1 | |||
| PCIeX16_2 | 0/2 | |||||
| ROG STRIX TRX40-XE GAMINGROG STRIX Z390-I GAMING PRIME Z390-P PRIME Z390M-PLUS TUF Z390-PLUS GAMING (WI-FI) TUF Z390-PLUS GAMING PRIME TRX40-PRO S | PCIeX16_1 | 3 | ||||
| Z370 | ROG MAXIMUS X FORMULA ROG MAXIMUS X CODE ROG MAXIMUS X HERO (WI-FI AC) ROG MAXIMUS X APEX | PCIeX16_2 | 2 | |||
| ROG STRIX Z370-E GAMING ROG STRIX Z370-F GAMING ROG STRIX Z370-H GAMING ROG STRIX Z370-G GAMING (WI-FI AC) ROG STRIX Z370-G GAMING PRIME Z370-A II PRIME Z370-A TUF Z370-PRO GAMING | PCIeX16_1 | 3/1 | ||||
| PCIeX16_2 | 0/2 | |||||
| ROG STRIX Z370-I GAMING PRIME Z370-P PRIME Z370-P II PRIME Z370M-PLUS II TUF Z370-PLUS GAMING II TUF Z370-PLUS GAMING | PCIeX16_1 | 3 | ||||
| Z490 | ROG MAXIMUS XII FORMULA ROG MAXIMUS XII APEX ROG STRIX Z490-E GAMING ROG STRIX Z490-F GAMING PRIME Z490-A ProArt Z490-CREATOR 10G ROG MAXIMUS X CODE ROG MAXIMUS X HERO (WI-FI AC) ROG MAXIMUS X APEX | PCIeX16_1 | 3/1 | |||
| PCIeX16_2 | 0/2 | |||||
| ROG MAXIMUS XII HERO (WI-FI) ROG STRIX Z490-H GAMING ROG STRIX Z490-A GAMING | PCIeX16_1 | 3/1 | ||||
| PCIeX16_2 | 0/1 | |||||
| PCIeX16_3 | 0/2 | |||||
| ROG STRIX Z490-G GAMING (WI-FI) ROG STRIX Z490-G GAMING ROG STRIX Z490-I GAMING PRIME Z490-P PRIME Z490-V PRIME Z490M-PLUS TUF GAMING Z490-PLUS (WI-FI) TUF GAMING Z490-PLUS | PCIeX16_1 | 3 | ||||
| W480 | Pro WS W480-ACE | PCIEX16_1 | 3/1 | |||
| PCIEX16_2 | 0/2 | |||||
| Intel Chipset | Model | VROC KEY | PCIe x16 slot | PCIe bifurcation in PCIe x16 slot | ||
| M.2 SSD quantity | ||||||
| Z590 | ROG Maximus XIII Hero ROG Strix Z590-E Gaming | PCIEX16_1 | 3(X8+X4+X4)/1(X8) | |||
| PCIEX16_2 | 0/2(X4+X4) or 1(X4)* | |||||
| ROG STRIX Z590-F GAMING WIFI | PCIEX16_1 | 3(X8+X4+X4)/1(X8) | ||||
| PCIEX16_2 | 0/1(X4)* | |||||
| ROG Maximus XIII APEX | PCIEX16_1 | 2(x4+x4)/0** | ||||
| PCIEX16_2 | 0/2(x4+x4) or 1(x4)* | |||||
| PRIME Z590-A ROG STRIX Z590-A GAMING WIFI | PCIEX16_1 | 3(X8+X4+X4)/1(X8) | ||||
| PCIEX16_2 | 0/1(X4) | |||||
| PCIEX16_3 | 0/1(X4) | |||||
| PRIME Z590-P PRIME Z590-P WIFI PRIME Z590-V PRIME Z590M-PLUS TUF GAMING Z590-PLUS TUF GAMING Z590-PLUS WIFI | PCIEX16_1 | 3(X8+X4+X4) | ||||
| ROG STRIX Z590-I GAMING WIFI | PCIEX16 | 3(X8+X4+X4)*** | ||||
| Intel Chipset | Model | VROC KEY | PCIe x16 slot | PCIe bifurcation in PCIe x16 slot | ||
| M.2 SSD quantity | ||||||
| Z690 | ROG MAXIMUS Z690 EXTREME GLACIAL | PCIEX16(G5)_1 | 1(X8)*/ 2(X8+X8)** | |||
| ROG MAXIMUS Z690 EXTREME | ||||||
| ROG MAXIMUS Z690 FORMULA | ||||||
| ROG MAXIMUS Z690 APEX | PCIEX16(G5)_2 | 1(X8)*/ 0 | ||||
| ROG MAXIMUS Z690 HERO | PCIEX16(G5)_1 | 1(X16)* | ||||
| ProArt Z690-Creator WIFI | PCIEX16(G5)_2 | 1(X8)* | ||||
| ROG STRIX Z690-E GAMING WIFI | PCIEX16(G5)_1 | 2(X8+X8)** | ||||
| ROG STRIX Z690-F GAMING WIFI | ||||||
| ROG STRIX Z690-G GAMING WIFI | ||||||
| ROG STRIX Z690-A GAMING WIFI D4 | ||||||
| ROG STRIX Z690-I GAMING WIFI | ||||||
| PRIME Z690-A | ||||||
| PRIME Z690-P | ||||||
| PRIME Z690-P WIFI | ||||||
| PRIME Z690-P D4 | ||||||
| PRIME Z690-P WIFI D4 | ||||||
| PRIME Z690M-PLUS D4 | ||||||
| TUF GAMING Z690-PLUS WIFI D4 | ||||||
| TUF GAMING Z690-PLUS D4 | ||||||
| W680 | Pro WS W680-ACE IPMI | PCIEX16(G5)_1 | 1(X8)*/ 2(X8+X8)** | |||
| Pro WS W680-ACE | PCIEX16(G5)_2 | 1(X8)*/ 0 | ||||
*Pease menyesuaikan bifucration dalam pengaturan BIOS, ketika M.2_2 diaktifkan, PCIEX16_2 akan mendukung 1 SSD M.2. **Perlu menggunakan kartu grafis diskrit. ***Jika slot sudah ditempati oleh kartu grafis diskrit, maka slot ini tidak akan dapat mendukung Hyper M.2 X16 Card Series. | ||||||
| Intel Chipset | Model | VROC KEY | PCIe x16 slot | PCIe bifurcation in PCIe x16 slot | ||
| M.2 SSD quantity/speed | ||||||
| Z790 | ROG MAXIMUS Z790 HERO | PCIEX16(G5)_1 | 1(X16)/ 2(X8+X8) | |||
| PCIEX16(G5)_2 | 1(X8) /X0 | |||||
| ROG STRIX Z790-E GAMING WIFI | PCIEX16(G5)_1 | 1(X8)/ 1(X16)/ 2(X8+X8) | ||||
| ROG STRIX Z790-F GAMING WIFI | PCIEX16(G5) | 1(X16) / 2(X8+X8) | ||||
| ROG STRIX Z790-A GAMING WIFI | ||||||
| ROG STRIX Z790-A GAMING WIFI D4 | ||||||
| ROG STRIX Z790-H GAMING WIFI | ||||||
| ROG STRIX Z790-I GAMING WIFI | PCIEX16(G5)_1 | 1(X8) /1(X16) | ||||
| PROART Z790-CREATOR WIFI | PCIEX16(G5)_1 | 1(X16)/ 2(X8+X8) | ||||
| PCIEX16(G5)_2 | 1(X8)/X0 | |||||
| PRIME Z790M-PLUS D4 | PCIEX16(G5) | 2(/x8+x8) | ||||
| TUF GAMING Z790-PLUS WIFI D4 | PCIEX16(G5) | 1(X16)/ 2(X8+X8) | ||||
| TUF GAMING Z790-PLUS D4 | PCIEX16(G5) | 1(X16)/ 2(X8+X8) | ||||
| TUF GAMING Z790-PLUS WIFI | PCIEX16(G5) | 1(X16)/ 2(X8+X8) | ||||
| PRIME Z790-P WIFI | PCIEX16(G5) | 1(X16)/ 2(X8+X8) | ||||
| PRIME Z790-P | PCIEX16(G5) | 1(X16)/ 2(X8+X8) | ||||
| PRIME Z790-P D4 | PCIEX16(G5) | 1(X16)/ 2(X8+X8) | ||||
| PRIME Z790-P WIFI D4 | PCIEX16(G5) | 1(X16)/ 2(X8+X8) | ||||
| PRIME Z790-A WIFI | PCIEX16(G5) | 1(X16)/ 2(X8+X8) | ||||
| H770 | TUF GAMING H770-PRO WIFI | PCIEX16(G5) | 1(X16)/ 2(X8+X8) | |||
| PRIME H770-PLUS D4 | PCIEX16(G5) | 1(X16)/ 2(X8+X8) | ||||
| Intel Chipset | Model | PCIe x16 slot | PCIe bifurcation settings in PCIe x16 slots with different workstation CPUs | HYPER M.2 X16 GEN5 CARD PCIe GEN5/GEN4 Speed support | ||
| W-3400 processors (112-lane) | W-2400 processors (64-lane) | |||||
| M.2 SSD quantity | M.2 SSD quantity | |||||
| W790 | Pro WS W790E-SAGE SE | PCIEX16(G5)_1 | 4 (x4+ x4+ x4+ x4) | 4 (x4+ x4+ x4+ x4) | PCIe GEN5/GEN4 | |
| PCIEX16(G5)_2 | 4 (x4+ x4+ x4+ x4) | Not supported | PCIe GEN5/GEN4 | |||
| PCIEX16(G5)_3 | 4 (x4+ x4+ x4+ x4) | 4 (x4+ x4+ x4+ x4) | PCIe GEN5/GEN4 | |||
| PCIEX16(G5)_4 | 4 (x4+ x4+ x4+ x4) | Not supported | PCIe GEN4 | |||
| PCIEX16(G5)_5 | 4 (x4+ x4+ x4+ x4) | 4 (x4+ x4+ x4+ x4) | PCIe GEN4 | |||
| PCIEX16(G5)_6 | 2 (x4+ x4) | Not supported | PCIe GEN4 | |||
| PCIEX16(G5)_7 | 4 (x4+ x4+ x4+ x4) | 4 (x4+ x4+ x4+ x4) | PCIe GEN4 | |||
| Pro WS W790-ACE | PCIEX16(G5)_1 | 4 (x4+ x4+ x4+ x4) | 4 (x4+ x4+ x4+ x4) | PCIe GEN4 | ||
| PCIEX16(G5)_2 | 4 (x4+ x4+ x4+ x4) | 4 (x4+ x4+ x4+ x4) | PCIe GEN5/GEN4 | |||
| PCIEX16(G5)_3 | 4 (x4+ x4+ x4+ x4) | 4 (x4+ x4+ x4+ x4) | PCIe GEN4 | |||
| PCIEX16(G5)_4 | 0/2 (x4+ x4) | 0/2 (x4+ x4) | PCIe GEN5/GEN4 | |||
| PCIEX16(G5)_5 | 4 (x4+ x4+ x4+ x4)/2 (x4+ x4) | 4 (x4+ x4+ x4+ x4)/2 (x4+ x4) | PCIe GEN5/GEN4 | |||
Saat memasang KARTU HYPER M.2 X16 GEN5 ke slot PCIE GEN4 saja pada motherboard seri W790, pastikan untuk mengonfigurasi kecepatan PCIe ke Gen 4 untuk slot PCIe yang ingin Anda pasang KARTU HYPER M.2 X16 GEN5. Untuk detail lebih lanjut tentang konfigurasi PCIe, silakan periksa manual BIOS untuk motherboard seri W790.
AMD
| AMD Chipset | Model | PCIe x16 slot | PCIe bifurcation settings in PCIe x16 slots with different Ryzen™ CPUs | HYPER M.2 X16 GEN5 CARD PCIe GEN5/GEN4 Speed support |
| AMD Socket sTR5 for Ryzen™ Threadripper™ PRO 7000 WX-Series | ||||
| M.2 SSD quantity | ||||
| WRX90 | Pro WS WRX90E-SAGE SE | PCIEX16(G5)_1 | 4(X4+X4+X4+X4) | PCIe GEN5/GEN4 |
| PCIEX16(G5)_2 | 4(X4+X4+X4+X4) | PCIe GEN5/GEN4 | ||
| PCIEX16(G5)_3 | 4(X4+X4+X4+X4) | PCIe GEN4 | ||
| PCIEX16(G5)_4 | 4(X4+X4+X4+X4) | PCIe GEN4 | ||
| PCIEX16(G5)_5 | 4(X4+X4+X4+X4) | PCIe GEN4 | ||
| PCIEX16(G5)_6 | 2(X4+X4) | PCIe GEN4 | ||
| PCIEX16(G5)_7 | 4(X4+X4+X4+X4) | PCIe GEN4 | ||
| WRX80 | Pro WS WRX80-SAGE SE WIFI Pro WS WRX80-SAGE SE WIFI II | PCIEX16_1 | 4(X4+X4+X4+X4) | PCIe GEN4 |
| PCIEX16_2 | 4(X4+X4+X4+X4) | PCIe GEN4 | ||
| PCIEX16_3 | 4(X4+X4+X4+X4) | PCIe GEN4 | ||
| PCIEX16_4 | 4(X4+X4+X4+X4) | PCIe GEN4 | ||
| PCIEX16_5 | 4(X4+X4+X4+X4) | PCIe GEN4 | ||
| PCIEX16_6 | 4(X4+X4+X4+X4) | PCIe GEN4 | ||
| PCIEX16_7 | 4(X4+X4+X4+X4) | PCIe GEN4 | ||
| TRX50 | Pro WS TRX50-SAGE WIFI | PCIEX16_1 | 4(X4+X4+X4+X4) | PCIe GEN5/GEN4 |
| PCIEX16_2 | 4(X4+X4+X4+X4) | PCIe GEN4 | ||
| PCIEX16_3 | 2(X4+X4) | PCIe GEN4 | ||
| PCIEX16_4 | N/A | N/A | ||
| PCIEX16_5 | N/A | N/A | ||
| TRX40 | ROG ZENITH II EXTREME | PCIeX16_1 | 4(X4+X4+X4+X4) | PCIe GEN4 |
| ROG ZENITH II EXTREME ALPHA | PCIeX16_2 | 2(X4+X4) | PCIe GEN4 | |
| PCIeX16_3 | 4(X4+X4+X4+X4) | PCIe GEN4 | ||
| ROG STRIX TRX40-XE GAMING | PCIeX16_4 | 2(X4+X4) | PCIe GEN4 | |
| ROG STRIX TRX40-E GAMING | PCIeX16_1 | 4(X4+X4+X4+X4) | PCIe GEN4 | |
| PRIME TRX40-PRO | PCIeX16_2 | 4(X4+X4+X4+X4) | PCIe GEN4 | |
| PRIME TRX40-PRO S | PCIeX16_3 | 4(X4+X4+X4+X4) | PCIe GEN4 |
AMD Chipset | Model | PCIe x16 slots | 1st Gen AMD Ryzen™ Threadripper™ Processors (Support PCIe Gen 3 SSDs) | 2nd Gen AMD Ryzen™ Threadripper™ Processors (Support PCIe Gen 3 SSDs) | ||
X399 | ROG STRIX X399-E GAMING | PCIeX16_1 | 4 | 4 | ||
PCIeX16_2 | 2 | 2 | ||||
PCIeX16_3 | 4 | 4 | ||||
PCIeX16_4 | 2 | 2 | ||||
ROG ZENITH EXTREME | PCIeX16_1 | 4 | 4 | |||
PCIeX16_2 | 2 | 2 | ||||
PCIeX16_3 | 4 | 4 | ||||
PCIeX16_4 | 2 | 2 | ||||
PCIeX4 | 1 | 1 | ||||
AMD Chipset | Model | PCIe x16 slot | PCIe bifurcation settings in PCIe x16 slots with different Ryzen™ CPUs | |||
AMD Ryzen™ 1000 Series/ 2000 Series/ 3000 Series/5000 Series Processors | AMD Ryzen™ 5000 G-Series/ 4000 G-Series processors | AMD Ryzen™ 2000 G-Series/ 3000 G-Series/ 7th Generation A-Series/ Athlon X4 Series processors | ||||
M.2 SSD quantity | M.2 SSD quantity | M.2 SSD quantity | ||||
X470 | CROSSHAIR VII HERO | PCIEX16_1 | 4(X4+X4+X4+X4)/2(X4+X4) | 3(X8+X4+X4)/1(X8) | 2(X4+X4) | |
CROSSHAIR VII HERO (Wi-Fi) | ||||||
ROG STRIX X470-F GAMING | PCIEX16_2 | 0/2(X4+X4) | 0/2(X4+X4) | Not supported | ||
PRIME X470-PRO | ||||||
| PCIEX16_3 | 1(X4) | 1(X4) | 1(X4) | ||
TUF X470-PLUS GAMING | PCIEX16_1 | 4(X4+X4+X4+X4) | 3(X8+X4+X4) | 2(X4+X4) | ||
PCIEX16_2 | 1(X4) | 1(X4) | 1(X4) | |||
ROG STRIX X470-I GAMING | PCIEX16 | Not supported | 3(X8+X4+X4) | 2(X4+X4) | ||
AMD Chipset | Model | PCIe x16 slot | PCIe bifurcation settings in PCIe x16 slots with different Ryzen™ CPUs | |||
AMD Ryzen™ 1000 Series/ 2000 Series/ 3000 Series/ 5000 Series Processors | AMD Ryzen™ 5000 G-Series/ 4000 G-Series processors | AMD Ryzen™ 2000 G-Series/ 3000 G-Series processors | ||||
M.2 SSD quantity | M.2 SSD quantity | M.2 SSD quantity | ||||
B450 | ROG STRIX B450-E GAMING | PCIEX16_1 | 4(X4+X4+X4+X4)/2(X4+X4) | 3(X8+X4+X4)/1(X8) | 2(X4+X4) | |
ROG STRIX B450-F GAMING | PCIEX16_2 | 0/2(X4+X4) | 0/2(X4+X4) | Not supported | ||
ROG STRIX B450-F GAMING II | PCIEX16_3 | 1(X4) | 1(X4) | 1(X4) | ||
TUF GAMING B450-PLUS II | PCIEX16_1 | 4(X4+X4+X4+X4) | 3(X8+X4+X4) | 2(X4+X4) | ||
TUF B450-PRO GAMING | ||||||
TUF B450-PLUS GAMING | ||||||
TUF GAMING B450M-PRO S | ||||||
TUF GAMING B450M-PRO II | ||||||
TUF B450M-PRO GAMING | PCIEX16_2 | 1(X4) | 1(X4) | 1(X4) | ||
TUF GAMING B450M-PLUS II | ||||||
TUF B450M-PLUS GAMING | ||||||
PRIME B450-PLUS | ||||||
PRIME B450M-A II | PCIEX16 | Not supported | 3(X8+X4+X4) | 2(X4+X4) | ||
PRIME B450M-A | ||||||
PRIME B450M-K II | ||||||
PRIME B450M-K | ||||||
B450M-DRAGON | ||||||
ROG STRIX B450-I GAMING | ||||||
AMD Chipset | Model | PCIe x16 slot | PCIe bifurcation settings in PCIe x16 slots with different Ryzen™ CPUs or APUs | |||
AMD Ryzen™ 3000 Series/ 5000 Series Processors (Support PCIe Gen 4 SSDs) | AMD Ryzen™ 2000 Series processors (only support PCIe Gen 3 SSDs) | AMD Ryzen™ 5000 G-Series/ 4000 G-Series processors (only support PCIe Gen 3 SSDs) | AMD Ryzen™ 2000 G-Series/ 3000 G-Series processors (only support PCIe Gen 3 SSDs) | |||
M.2 SSD quantity | M.2 SSD quantity | M.2 SSD quantity | M.2 SSD quantity | |||
X570 | ROG Crosshair VIII Extreme | PCIEX16_1 | 4(X4+X4+X4+X4)/2(X4+X4) | 4(X4+X4+X4+X4)/2(X4+X4) | 3(X8+X4+X4)/1(X8) | 2(X4+X4) |
PCIEX16_2 | 0/2(X4+X4) | 0/2(X4+X4) | 0/2(X4+X4) | Not supported | ||
ROG Crosshair VIII Dark Hero | PCIEX16_1 | 4(X4+X4+X4+X4)/2(X4+X4) | 4(X4+X4+X4+X4)/2(X4+X4) | 3(X8+X4+X4)/1(X8) | 2(X4+X4) | |
ROG Crosshair VIII Formula | ||||||
ROG Crosshair VIII Hero | ||||||
ROG Crosshair VIII Hero (WI-FI) | PCIEX16_2 | 0/2(X4+X4) | 0/2(X4+X4) | 0/2(X4+X4) | Not supported | |
ROG STRIX X570-E GAMING II | ||||||
ROG STRIX X570-E GAMING | ||||||
ROG STRIX X570-F GAMING | ||||||
Pro WS X570-ACE | PCIEX16_3 | 1(X4) | 1(X4) | 1(X4) | 1(X4) | |
ProArt X570-Creator WIFI | ||||||
PRIME X570-PRO | ||||||
TUF GAMING X570-PLUS(WI-FI) | PCIEX16_1 | 4(X4+X4+X4+X4) | 4(X4+X4+X4+X4) | 3(X8+X4+X4) | 2(X4+X4) | |
TUF GAMING X570-PLUS | ||||||
TUF GAMING X570-PRO WIFI II | ||||||
TUF GAMING X570-PRO (WI-FI) | ||||||
PRIME X570-P | PCIEX16_2 | 1(X4) | 1(X4) | 1(X4) | 1(X4) | |
ROG Crosshair VIII Impact | PCIEX16 | Not supported | Not supported | 1(X4) | 1(X4) | |
ROG Strix X570-I Gaming | ||||||
AMD Chipset | Model | PCIe x16 slot | PCIe bifurcation settings in PCIe x16 slots with different Ryzen™ CPUs | |||
AMD Ryzen™ 7000 Series Desktop Processors | ||||||
M.2 SSD quantity | ||||||
A620 | TUF GAMING A620-PRO WIFI | PCIEX16_1 | 4(X4+X4+X4+X4) | |||
TUF GAMING A620M-PLUS WIFI | PCIEX16 | 4(X4+X4+X4+X4) | ||||
AMD Chipset | Model | PCIe x16 slot | PCIe bifurcation settings in PCIe x16 slots with different Ryzen™ CPUs | |||
AMD Ryzen™ 3000 Series/ 5000 Series Processors (Support PCIe Gen 4 SSDs) | AMD Ryzen™ 5000 G-Series/ 4000 G-Series processors (only support PCIe Gen 3 SSDs) | |||||
M.2 SSD quantity | M.2 SSD quantity | |||||
B550 | ROG STRIX B550-E GAMING | PCIEX16_1 | 4(X4+X4+X4+X4)/2(X4+X4) | 3(X8+X4+X4)/1(X8) | ||
ROG STRIX B550-XE GAMING WIFI | ||||||
ProArt B550-Creator | PCIEX16_2 | 0/2(X4+X4) | 0/2(X4+X4) | |||
| PCIEX16_3 | 1(X4) | 1(X4) | |||
ROG STRIX B550-F GAMING (WI-FI) | PCIEX16_1 | 4(X4+X4+X4+X4) | 3(X8+X4+X4) | |||
ROG STRIX B550-A GAMING | ||||||
TUF GAMING B550-PLUS WIFI II | ||||||
TUF GAMING B550-PLUS (WI-FI) | ||||||
TUF GAMING B550-PLUS II | ||||||
TUF GAMING B550-PLUS | ||||||
TUF GAMING B550-PRO | ||||||
PRIME B550-PLUS | PCIEX16_2 | 1(X4) | 1(X4) | |||
Pro B550M-C/CSM | ||||||
TUF GAMING B550M-ZAKU (WI-FI) | ||||||
TUF GAMING B550M-PLUS (WI-FI) | ||||||
TUF GAMING B550M-PLUS | ||||||
PRIME B550M-A (WI-FI) | PCIEX16 | Not supported | 3(X8+X4+X4) | |||
PRIME B550M-A AC | ||||||
PRIME B550M-A | ||||||
PRIME B550M-K | ||||||
ROG STRIX B550-I GAMING | ||||||
AMD Chipset | Model | PCIe x16 slot | PCIe bifurcation settings in PCIe x16 slots with different Ryzen™ CPUs | |||
AMD Ryzen™ 7000 Series Desktop Processors | ||||||
M.2 SSD quantity | ||||||
X670 | ROG CROSSHAIR X670E EXTREME | PCIEX16_1 | 4(X4+X4+X4+X4)/2(X4+X4) | |||
PCIEX16_2 | 0/2(X4+X4) /1(X4) | |||||
ROG CROSSHAIR X670E HERO | PCIEX16_1 | 4(X4+X4+X4+X4)/2(X4+X4) | ||||
PCIEX16_2 | 0/2(X4+X4) | |||||
ROG STRIX X670E-E GAMING WIFI | PCIEX16_1 | 4(X4+X4+X4+X4)/2(X4+X4) | ||||
PCIEX16_2 | 0/1(X4) | |||||
PCIEX16_3 | 1(X4) | |||||
ProArt X670E-CREATOR WIFI | PCIEX16_1 | 4(X4+X4+X4+X4)/2(X4+X4) | ||||
PCIEX16_2 | 0/2(X4+X4) | |||||
PCIEX16_3 | 1(X2) | |||||
ROG STRIX X670E-F GAMING WIFI | PCIEX16_1 | 4(X4+X4+X4+X4) | ||||
PCIEX16_2 | 1(X4) | |||||
ROG CROSSHAIR X670 GENE | PCIEX16 | 4(X4+X4+X4+X4) | ||||
PRIME X670-P WIFI | PCIEX16_1 | 4(X4+X4+X4+X4) | ||||
PCIEX16_2 | 1(X4) | |||||
PCIEX16_3 | 1(X4) | |||||
AMD Chipset | Model | PCIe x16 slot | PCIe bifurcation settings in PCIe x16 slots with different Ryzen™ CPUs | |||
AMD Ryzen™ 7000 Series Desktop Processors | ||||||
M.2 SSD quantity | ||||||
A620 | TUF GAMING A620-PRO WIFI | PCIEX16_1 | 4(X4+X4+X4+X4) | |||
TUF GAMING A620M-PLUS WIFI | PCIEX16 | 4(X4+X4+X4+X4) | ||||
AMD Chipset | Model | PCIe x16 slot | PCIe bifurcation settings in PCIe x16 slots with different Ryzen™ CPUs | |||
AMD Ryzen™ 7000 Series Desktop Processors | ||||||
M.2 SSD quantity | ||||||
B650 | ROG STRIX B650E-E GAMING WIFI | PCIEX16_1 | 4(X4+X4+X4+X4)/2(X4+X4) | |||
PCIEX16_2 | 0/1(X4) | |||||
PCIEX16_3 | 1(X4) | |||||
ProArt B650-CREATOR | PCIEX16_1 | 4(X4/X4/X4/X4)/2(X8/X8) | ||||
PCIEX16_2 | 0/2(X4/X4) | |||||
PCIEX16_3 | 1(X4) | |||||
ROG STRIX B650E-F GAMING WIFI | PCIEX16_1 | 4(X4+X4+X4+X4) | ||||
PCIEX16_2 | 1(X4) | |||||
PRIME B650M-A WIFI II | PCIEX16_1 | 4(X4+X4+X4+X4) | ||||
ROG STRIX B650E-I GAMING WIFI | 4(X4+X4+X4+X4) | |||||
AMD Chipset | Model | PCIe x16 slot | PCIe bifurcation settings in PCIe x16 slots with different Ryzen™ CPUs | |||
AMD Ryzen™ Threadripper™ PRO Series Processors | ||||||
M.2 SSD quantity | ||||||
WRX80 | Pro WS WRX80-SAGE SE WIFI | PCIEX16_1 | 4(X4+X4+X4+X4) | |||
PCIEX16_2 | 4(X4+X4+X4+X4) | |||||
PCIEX16_3 | 4(X4+X4+X4+X4) | |||||
PCIEX16_4 | 4(X4+X4+X4+X4) | |||||
PCIEX16_5 | 4(X4+X4+X4+X4) | |||||
PCIEX16_6 | 4(X4+X4+X4+X4) | |||||
PCIEX16_7 | 4(X4+X4+X4+X4) | |||||
FAQ
Q1: Apa perbedaan antara HYPER M.2X16 CARD V2, HYPER M.2X16 GEN 4 CARD dan HYPER M.2 x16 GEN5 CARD?
A1: HYPER M.2X16 CARD V2 mendukung PCI Express 3.0 HYPER M.2X16 GEN 4 mendukung PCI Express 3.0 dan PCI Express 4.0 HYPER M.2 x16 GEN5 CARD mendukung PCI Express 4.0 dan PCI Express 5.0
Q2: Bagaimana cara mengonfirmasi kapasitas jalur PCI Express prosesor Intel saya?
A2: Silakan kunjungi situs web Intel untuk memeriksa Jumlah maksimum jalur PCI Express.
https://ark.intel.com/content/www/us/en/ark.html#@Processors
Q3: Bagaimana cara menggunakan fungsi Intel®VROC pada motherboard seri X299?
A3: Instal kunci perangkat keras VROC untuk mengaktifkan fungsi RAID CPU tambahan. Karena perilaku CPU, fungsi RAID CPU hanya mendukung Intel® SSD.
*Kunci perangkat keras VROC dibeli secara terpisah.
* Lihat panduan pengguna untuk menghubungkan kunci perangkat keras VROC.
Q4: Bagaimana cara mengunduh firmware IRST atau VROC?
A4:
Langkah 1: Buka pusat unduhan ASUS. https://www.asus.com/support/Download-Center/
Langkah 2: Masukkan nama motherboard Anda.
Langkah 3: KlikDriver dan utilitas.
Langkah 4: Pilih Sistem Operasi Anda.
Langkah 5: Klik untuk mengunduh firmware.
