PE1103N

Edge AI system with NVIDIA® Jetson™ Orin™ Nano™, supports up to eight GMSL2 cameras, designed for demanding AI applications such as autonomous vehicles, robotics, industrial automation, and video surveillance.

  • Intelligent Edge AI System: Powered by NVIDIA® Jetson Orin™ NX and Orin™ Nano.
  • Fanless Design: Compact form factor with a wide operating temperature range of -20 to 60 °C.
  • Flexible Connectivity: Ready to connect to Wi-Fi, 4G/5G, and GNSS with PPS via optional modules.
  • Wide-Range DC Input: Features built-in ignition power control for versatile power options.
  • Rugged Reliability: Withstands harsh environments, tested to MIL-STD-810H standards.
  • Comprehensive I/O Options: Includes 1 x 10 GbE with PTP, 1 GbE, 2 x RS232/422/485, and 1 x CAN bus.
Icon with note and Request a quote text
Preliminary
PE1103N

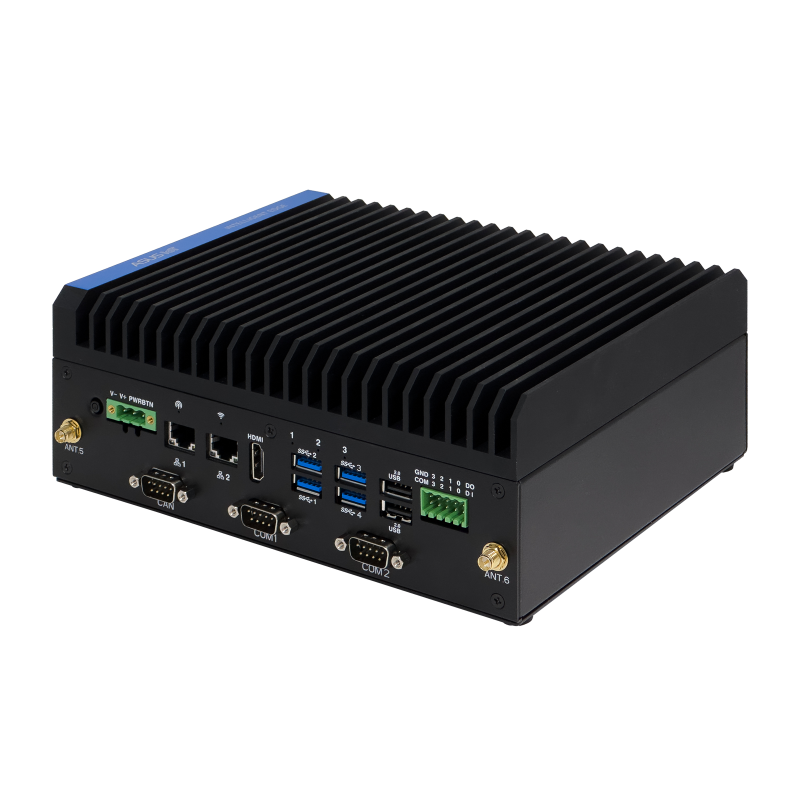

ASUS IoT PE1103N is a high-performance fanless edge AI computer powered by the NVIDIA® Jetson Orin™ NX/Nano, delivering up to 157 TOPS of AI inferencing within a 7–40W power envelope. It supports up to eight GMSL connections via FAKRA connector for real-time video transmission with integrated drivers by multi-vendor for easy development and flexible deployment. Along with extensive I/O and Out-of-Band (OOB) management for remote monitoring and control, PE1103N ensures seamless coordination and precise synchronization across sensors—including GNSS, LiDAR, and IMU—via Precision Time Protocol (PTP) for accurate and reliable performance. Additionally, built-in ignition power control, a wide operating voltage from 9-36V DC and temperature range from -20°C to 60°C provide robust power management for vehicle integration and system stability. PE1103N also benefits from MIL-STD 810H certification for shock and vibration resistance, making it ideal for AMRs, robotics, off-road autonomous vehicles, and smart city applications.

Revolutionize Computing with ASUS IoT Edge AI Computers

ASUS IoT Edge AI systems combine cutting-edge GPU computing with the potential of AIoT. These edge computers feature embedded MXM GPU modules and PCIe GPU cards from both NVIDIA® and Intel® to meet diverse market needs. Delivering unparalleled performance, ASUS IoT Edge AI systems enable real-time AI inferencing at the edge, transforming industries. Designed with a rugged, fanless, anti-vibration build, wide temperature support, and low power consumption, ASUS IoT Edge AI systems excel in demanding edge AI applications.

Full Spectrum of Edge AI Computers

This ASUS IoT Edge AI systems product portfolio lineup shows all 17 edge computers in this series in order of TOPS performance, size, power efficiency and high throughput.

Designed for Computer Vision Applications
