PE100A｜AIoT & Industrial Solutions｜ASUS Global

PE100A

Intelligent Edge computer with NXP^® i.MX 8M low power consumption and scalable processor

Intelligent Edge computer with NXP^® i.MX 8M low power consumption and scalable processor
32G on board eMMC and Micro-SD card for storage capacity
Support Linux Yocto OS and Ubuntu server
Wide Temperature Range: -20~60°C
Amazon AWS IoT Greengrass Certified

Icon with note and Request a quote text

PE100A

Compare

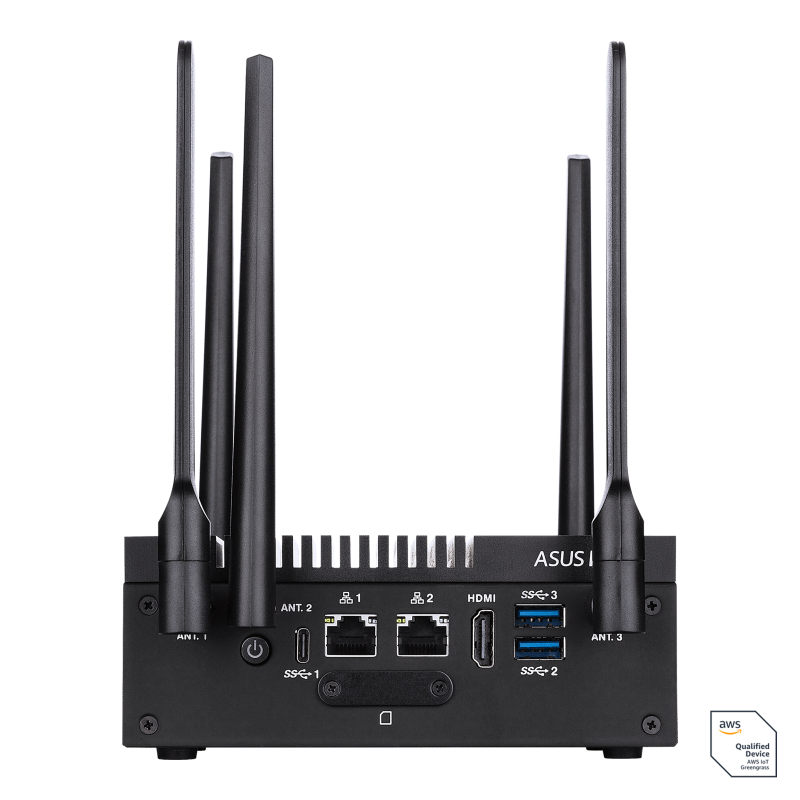

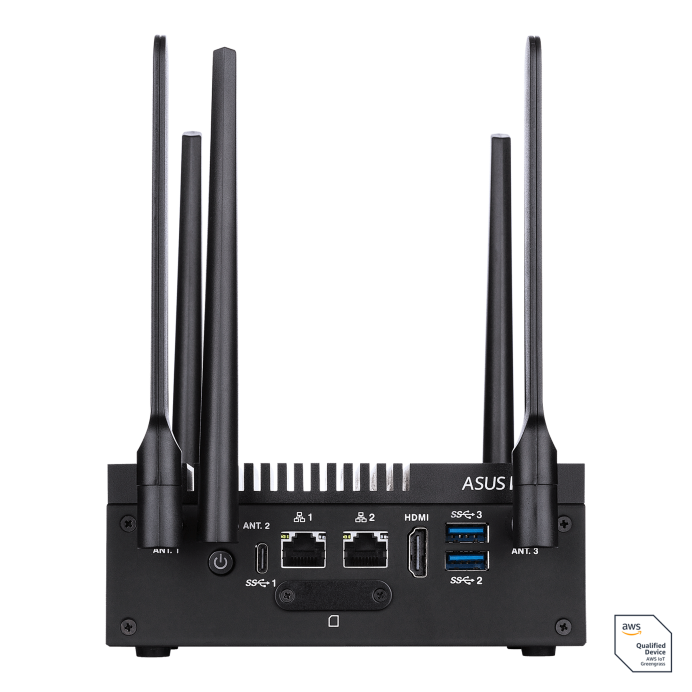

PE100A front view with antenna

PE100A Datasheet

PE100A is an edge computer based on a Pico-ITX motherboard that's optimized for TCO, supported by a secondary I/O board for extra functionality. It's powered by an NXP^® i.MX 8M system-on-a-chip (SoC) processor that's based on the Arm^® Cortex-A53 architecture with up to 1.3 GHz and delivers efficient performance with low power consumption. PE100A also features 4 GB LPDDR4 onboard memory and 32GB onboard eMMC, and includes two Ethernet ports, three USB ports and one HDMI on the front side. Two COM ports, with RS232/RS485 and one digital DI/DO are also available as optional interfaces at the rear. Inside, PE100A's mainboard also supports an M.2 E-key connector and micro SD card connector, while the I/O board offers Mini PCIe^®/mSATA and a Nano-SIM socket interface.

The new computer is also engineered with a wide range of power inputs (12~24V), operating temperatures (-20°~60°) to serve as an edge-to-cloud gateway device for data aggregation, processing and forwarding. The TCO-optimized SBC is ideal for embedded automation solutions and diverse smaller-scale IoT applications. ASUS Edge computer also secure for 24/7 stability and reliability, combined with our world-class after-sales service and guaranteed long-term availability to make sure your investment for the duration of the product lifecycle is maximized.

Full Spectrum of Fanless Rugged Edge Computers

ASUS IoT Fanless Rugged Edge series product roadmap

Designed for Computer Vision Applications

A robot arm is picking strawberry in the greenhouse

ASUS IoT Edge AI Systems

Download

5 ASUS IoT edge computers standing in line with AI blue lighting as background

ASUS IoT Brochure

Download

4 ASUS IoT Jetson series edge computers standing in group

Accelerate Digital Transformation with ASUS loT

Download

Get Engaged with us
Contact us
Learn More About ASUS IoT
Visit Website
Buy Now
Find a Partner
