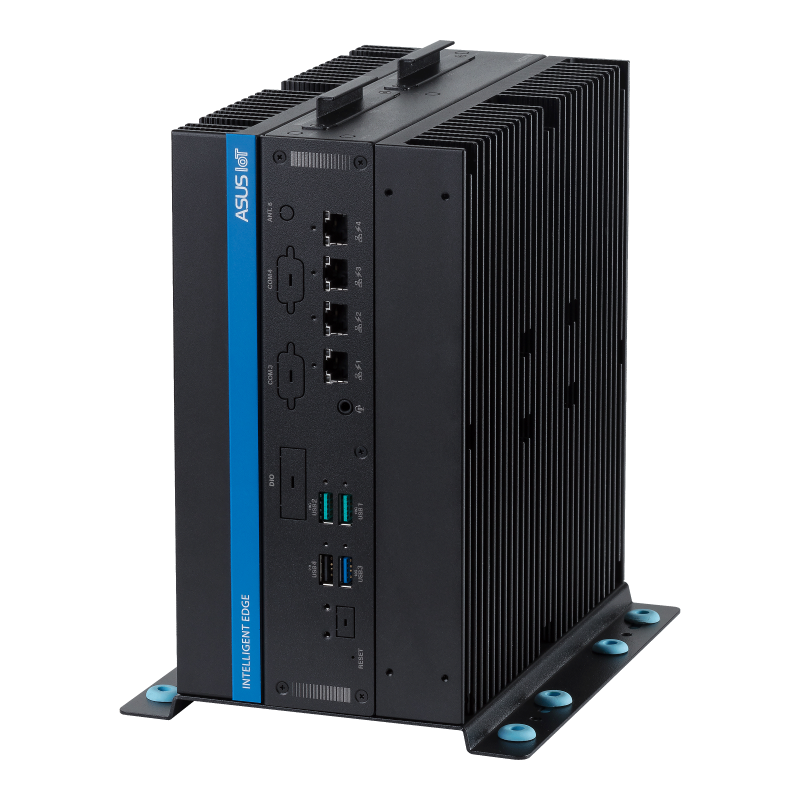

PE3000G
Rugged fanless edge AI computer supporting NVIDIA® or Intel® MXM GPU and 12th Gen Intel® Core™ processor
- Support NVIDIA® Ampere/Turing™ or Intel® Arc™ A-series MXM GPU, for varied edge AI computing
- 12th Gen Intel® Core™ (Alder Lake-P, H) 45W CPU, up to 64GB DDR5 4800 SDRAM
- Patented system architecture and thermal design to ensure -20°C to 60°C fanless operation*
- 3x 2.5 GbE and 1x GbE ports with optional PoE+ support
- 1x M.2 M key (NVMe), 1x M.2 B key (4G/ 5G NR), 1x M.2 E key (WiFi 6)
- 8-48V wide range DC input with built-in Ignition power control
- MIL-STD-810H and withstand 5 Grms vibration
*R.O.C Patent No. M638395
Compare
ASUS IoT PE3000G series is a rugged fanless edge AI computer designed for computer-vision applications. Supporting NVIDIA® Ampere/Turing™ or Intel® Arc™ A-series MXM GPU. Specifically, Intel® Arc™ A350M, A370M, A550M and A730M MXM GPUs are supported by ASUS IoT. This powerful edge AI computer accelerates AI inferencing, and provides high-performance computing and image-processing capabilities.
PE3000G series is driven by an up to 12th Gen Intel® Core™ i7 processor and offers three 2.5 GbE and one GbE ports with optional PoE+ providing a total power budget of 100 W for connected devices or sensors. Furthermore, with optional MXM GPUs, PE3000G series is able to drive up eight display outputs — making it a truly versatile option for industrial use.
Meeting the military-grade MIL-STD-810H standard for shock and vibration, PE3000G series is engineered to withstand the undulations caused by bumpy and uneven roads — ensuring it's suitable for use in autonomous vehicles. The dual-sided heatsink design ensures the heat generated from internal components is effectively dissipated, maintaining operating stability even in harsh conditions. The ingenious design, which is patent-pending, improves structure for rock-solid stability, solves mechanical tolerance, and provides an optimized thermal solution.
PE3000G series has also been designed to accept a wide range of power inputs, from 8-48V DC, includes built-in ignition power control, and offers a wide range of operating temperatures -20°C to 60°C with a 50 W MXM, so it's made to thrive in extreme environments and diverse scenarios.
In summary, PE3000G series is a powerful edge AI computer that accelerates local data analysis, speeds response times, decreases latency and realizes real-time AI inference for applications as intelligent video analytics, autonomous vehicles applications, intelligent transportation, smart healthcare, medical image processing and more.
PE3000G series is driven by an up to 12th Gen Intel® Core™ i7 processor and offers three 2.5 GbE and one GbE ports with optional PoE+ providing a total power budget of 100 W for connected devices or sensors. Furthermore, with optional MXM GPUs, PE3000G series is able to drive up eight display outputs — making it a truly versatile option for industrial use.
Meeting the military-grade MIL-STD-810H standard for shock and vibration, PE3000G series is engineered to withstand the undulations caused by bumpy and uneven roads — ensuring it's suitable for use in autonomous vehicles. The dual-sided heatsink design ensures the heat generated from internal components is effectively dissipated, maintaining operating stability even in harsh conditions. The ingenious design, which is patent-pending, improves structure for rock-solid stability, solves mechanical tolerance, and provides an optimized thermal solution.
PE3000G series has also been designed to accept a wide range of power inputs, from 8-48V DC, includes built-in ignition power control, and offers a wide range of operating temperatures -20°C to 60°C with a 50 W MXM, so it's made to thrive in extreme environments and diverse scenarios.
In summary, PE3000G series is a powerful edge AI computer that accelerates local data analysis, speeds response times, decreases latency and realizes real-time AI inference for applications as intelligent video analytics, autonomous vehicles applications, intelligent transportation, smart healthcare, medical image processing and more.
ASUS IoT PE3000G Series with Intel® EIV Development Kit
Deploying AI inference at the edge
In today's fast-evolving AIoT landscape and burgeoning edge AI applications, edge computing stands as a pivotal solution to address the pressing needs for real-time data processing, minimal latency, and rapid responses. The effectiveness of edge computing largely hinges on the computing capability and reliability of the edge device. Equally vital are user-friendly software tools that come pre-optimized for hardware compatibility, significantly expediting development, mitigating compatibility issues, and streamlining deployment.
The ASUS IoT PE3000G series with Intel® EIV Development Kit offers a potent combination that empowers the realization of efficient edge AI applications. This synergy brings forth a host of benefits, including seamless hardware and software compatibility, accelerated inference processing, and simplified deployment procedures. Ultimately, this synergy empowers developers to effortlessly deploy AI and computer vision applications that seamlessly operate at the edge, ensuring a smoother and more efficient edge computing experience.
The ASUS IoT PE3000G series with Intel® EIV Development Kit offers a potent combination that empowers the realization of efficient edge AI applications. This synergy brings forth a host of benefits, including seamless hardware and software compatibility, accelerated inference processing, and simplified deployment procedures. Ultimately, this synergy empowers developers to effortlessly deploy AI and computer vision applications that seamlessly operate at the edge, ensuring a smoother and more efficient edge computing experience.
Seamless integration with Intel® technologies
PE3000G series has been validated for seamless integration with Intel's Edge Insights for Vision, a comprehensive solution optimized for Intel® architecture that enables computer vision and deep-learning inference at the edge. This versatile package offers containerized or stand-alone runtime options and includes scripts for Intel® Graphics driver installation and OpenVINO™ inferencing setup on Intel® Processors and Graphics devices. With PE3000G series' support for CPU, Integrated GPU, and Intel® Arc™ Discrete GPU, all backed by Intel's Distribution of OpenVINO™ toolkit, developers can efficiently create and optimize AI and computer vision applications, such as this autonomous mobile robots in smart agriculture. OpenVINO™ maximizes performance across Intel hardware, including accelerators.
For more information and instructions, please visit Edge Insights for Vision from Intel.
For more information and instructions, please visit Edge Insights for Vision from Intel.
Flexible, resilient and ready to empower AI in diverse environments
ASUS IoT PE3000G series is a rugged, fanless edge AI computer designed for computer-vision applications, supporting NVIDIA® Ampere/Turing™ and Intel® Arc™ A-series MXM GPUs. Powered by up to a 12th Gen Intel® Core™ i7 processor, it features comprehensive I/O support, including three 2.5 GbE and one GbE port with optional PoE+, and can drive up to eight display outputs with optional MXM GPUs.
Engineered to meet military-grade MIL-STD-810H standards for shock and vibration, the PE3000G series is ideal for industrial use. Its dual-sided heatsink design ensures efficient heat dissipation, maintaining stability in harsh conditions. The product supports wide power inputs (8-48V DC), ignition power control, and operates in extreme temperatures (-20°C to 60°C with a TGP 60W type A MXM).
The PE3000G series accelerates local data analysis, reduces latency, and supports real-time AI inference for various applications, including intelligent video analytics, autonomous vehicles, intelligent transportation, smart healthcare, and medical image processing.
Engineered to meet military-grade MIL-STD-810H standards for shock and vibration, the PE3000G series is ideal for industrial use. Its dual-sided heatsink design ensures efficient heat dissipation, maintaining stability in harsh conditions. The product supports wide power inputs (8-48V DC), ignition power control, and operates in extreme temperatures (-20°C to 60°C with a TGP 60W type A MXM).
The PE3000G series accelerates local data analysis, reduces latency, and supports real-time AI inference for various applications, including intelligent video analytics, autonomous vehicles, intelligent transportation, smart healthcare, and medical image processing.
-
Dual-side Heatsink
-
Fanless Design
-
Rugged Design
-
Embedded Compact GPU Solution
-
Anti-vibration Design
Revolutionize Computing with ASUS IoT Edge AI Computers
ASUS IoT Edge AI systems combine cutting-edge GPU computing with the potential of AIoT. These edge computers feature embedded MXM GPU modules and PCIe GPU cards from both NVIDIA® and Intel® to meet diverse market needs. Delivering unparalleled performance, ASUS IoT Edge AI systems enable real-time AI inferencing at the edge, transforming industries. Designed with a rugged, fanless, anti-vibration build, wide temperature support, and low power consumption, ASUS IoT Edge AI systems excel in demanding edge AI applications.
Powerful and scalable GPU computing
ASUS IoT pioneered the industry's first edge AI system that supports up to dual 450 W TDP GPUs. Our systems also benefit from support for Intel Arc™ A-series MXM, NVIDIA PCIe® GPU cards, and Jetson SoM, offering a choice of power-efficient options through to extreme high-throughput solutions.
Latest computing platforms
ASUS IoT edge AI systems are available in a variety of form factors embedded with the latest Intel 14th/13th/12th Gen CPUs and NVIDIA Jetson Orin™ series, meeting the dynamic requirements of the market.
Exclusive thermal design
The patented system design effectively diffuses heat from the CPU, GPU and all peripherals, delivering extreme ruggedness with a fanless structure. This ensures stable operation while the fanless design further reduces dust throughput and build-up, enhancing durability.
Robust Power Design
Innovative high-current tolerance power design ensures extreme reliability under a wide range of DC inputs and power-hungry GPU computing. Support for ignition power control adds further stability.
Anti-vibration Design
With a robust mechanical design featuring structured support, GPU retainer, cable screw lock, and damping bracket, ASUS IoT edge AI systems excel at in-vehicle situations for smooth and uninterrupted operation.
Industrial Feature Set & Rich I/O
Supports PoE, isolated DIO, multiple COM ports, CAN bus, and more, enabling seamless connectivity for a wide range of applications.
Certification Compliance
Rest assured with our system-validated certification readiness. Our edge AI systems comply with MIL-STD 810H and offer vibration resistance up to 5 GRMS.
Software Support for Easy Integration
Simplify the integration process with comprehensive software support, including APIs, middleware, and device control toolkits tailored for various vertical applications.
Full Spectrum of Edge AI Computers
Designed for Computer Vision Applications
FAQ
-
Q1. Where are the business opportunities for embedded graphics?
In the modern world, the AI revolution brings opportunities in applications such as industrial automation, autonomous vehicles, video analytics, and more. All these operations rely heavily on graphics computing and matrix multiplication. GPU (Graphics Processing Unit) computing precisely fulfills these requirements, particularly when it comes to parallel processing and computationally intensive workloads. It serves as an AI engine in the field, where real-time operations take place. When computers are built ruggedized, it unlocks the possibility to process data locally, reducing latency and conserving bandwidth, making mission-critical calculations reliable and efficient. Thus, GPU computability and ruggedness are the two indispensable elements in edge AI. -
Q2. What makes ASUS IoT stand out from other brands?
Over the years, ASUS has earned a prestigious reputation for motherboard and graphics card design. Across a growing spectrum of products, ASUS continuously challenges itself to adapt and evolve. Having served various product categories on a global scale for three decades, ASUS has cultivated robust customer service capabilities and a strong supply chain management system. With this proven foundation of competency, ASUS IoT, a dedicated Business Unit focusing on industrial applications, builds industrial PC offerings with pride and confidence. -
Q3. What is the benefit of purchasing a GPU with an edge AI computer?
To start with, it spares you the effort of logistics, installation, and testing. Secondly, it addresses quality concerns such as compatibility and mechanical strength. When the deployment environment involves different levels of shock and vibration, the mechanical design of the GPU retainer becomes critical. Lastly, after a batch of equipment has been running for years, certain problems may arise. It's always better to reach out to a single vendor to sort it out, instead of contacting multiple vendors for different key components. The efforts can be substantial once you take a few more things into account. Unity of the whole system can be a solution for optimal TCO (Total Cost of Ownership).
