ProArt Z690-CREATOR WIFI

Intel® Z690 LGA 1700 ATX motherboard built for creators, with PCIe® 5.0, DDR5 support, Thunderbolt™ 4, 10 Gb and 2.5 Gb Ethernet, WiFi 6E, four PCIe 4.0 M.2 slots with heatsinks, plus a USB 3.2 Gen 2x2 front panel connector with Quick Charge 4+ support
  • Intel® Socket LGA 1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
  • Future-proofed connectivity: Two Thunderbolt™ 4 Type-C® ports, 10 Gb & 2.5 Gb onboard Ethernet, WiFi 6E, four PCIe® 4.0 M.2 slots and a USB 3.2 Gen 2x2 front panel connector with Quick Charge 4+
  • Next-gen performance: 16+1 power stages rated for 70 amps, PCIe 5.0 ready, and a DDR5 speed boost
  • Intelligent optimisation: ASUS-exclusive software and firmware that simplify setup and improve performance: AI Overclocking, AI Cooling, CreationFirst and Two-Way AI Noise-Cancellation

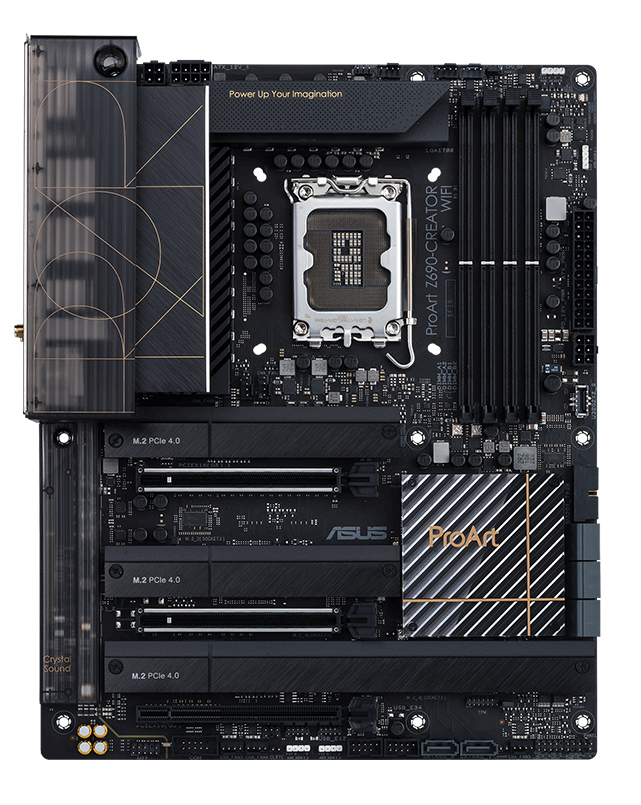

  • Comprehensive thermal design: A massive VRM and chipset heatsink, aluminum M.2 heatsinks, seven 4-pin PWM fan headers and an AIO pump header
  • Advanced security management: USB port management, software blacklisting and Regedit on/off controls via ASUS Control Center Express
  • Trusted stability: Tested for 24/7 operation, validated for extensive compatibility and equipped with SafeSlot and SafeDIMM for enhanced durability
Win11
OP product mainImage

Your Powerhouse for Creativity

ProArt Z690-Creator WiFi empowers creators of all levels by maximising the performance of 12th Gen Intel® Core™ processors with powerful hardware and software, efficient cooling and lightning-fast connectivity including Thunderbolt™ 4, onboard 10 Gb and 2.5 Gb Ethernet, plus WiFi 6E.

 RYZEN AMD, AMD SOCKET AM4 X570, Windows 11 Ready

Spec Overview

ProArt Z690-Creator WiFi motherboard connectivity features ProArt Z690-Creator WiFi motherboard connectivity features
  1. 2 x DisplayPort™ input port for Thunderbolt™ 4

  2. 1 x HDMI® 2.1 (4K @ 60 Hz )

  3. 10 Gb & 2.5 Gb Ethernet

  4. 2 x Thunderbolt 4
    USB Type-C® ports

  5. 6 x USB 3.2 Gen 2

  6. WiFi 6E

  7. BIOS Flashback™

  8. 5 x audio Jacks

  9. 1 x USB 3.2 Gen 2x2 Type-C front panel connector

    ∙ 60 W PD / QC 4+

  10. 1 x USB 3.2 Gen 1 header

  11. 8 x SATA 6 Gb/s

  12. 2 x USB 2.0 connectors

  13. 3 x Aura addressable gen 2 headers
    1 x Aura RGB header

Future-Proofed Connectivity

A comprehensive array of powerful I/O ports — including two Thunderbolt™ 4 ports plus 10 Gb and 2.5 Gb Ethernet ports— enables quick data transfers and extensive storage options with flexible, hassle-free connectivity.

ProArt Z690-Creator WiFi motherboard features two Thunderbolt 4 Type-C ports.

Each Thunderbolt 4 port delivers up to 40 Gbps of bidirectional bandwidth for the latest high-speed devices and drives. Thunderbolt 4 also supports up to two external 4K displays and extends PCIe® bandwidth to up to 32 Gbps.

  • Up to

    40Gbps
  • Supports

    Dual 4K or one 8K display
  • Thunderbolt

Next-Gen Performance

With tailored CPU power delivery and support for the latest high-performance memory, ProArt Z690-Creator WiFi easily handles the demands of the latest 12th Gen Intel® Core™ processors. It features an intelligent VRM design that’s rated for 70 amps, plus carefully selected components and memory layout optimisations for multithreaded tasks such as 3D animation, video rendering and software compiling.

Intelligent Optimisation

ProArt Z690-Creator WiFi offers simple and flexible tools that enhance almost every aspect of your content-creation system, giving you the fast, intuitive control needed for efficient workflow. It features dynamic automated tuning with AI overclocking and AI cooling. In addition, CreationFirst software prioritises and optimises your network traffic for faster, lag-free online performance.

AI Overclocking

ASUS AI Overclocking automatically tunes your system with onboard intelligence that monitors system vitals — such as temperatures, fan speeds and power draw — to estimate cooling and overclocking headroom and deliver optimal performance for content-creation workflows.

  • Designed by Experts
    Designed by Experts

    For each new motherboard platform, the ASUS R&D team painstakingly profile thousands of processors and system configurations to hone the highly advanced algorithm of AI Overclocking.

  • Predictive Edge
    Predictive Edge

    The algorithm analyzes your CPU and cooling system and, based on what it finds, predicts optimal settings. The software then uses these settings to automatically guide the clocking process, balancing frequency and voltage.

  • Real-time Adjustments
    Real-time Adjustments

    The software monitors workload, system temperature, fan speed and power draw every minute, and makes real-time adjustments to ensure ongoing optimal performance.

Comprehensive Cooling Design

Maintaining system stability under heavy loads is of paramount importance, so ProArt Z690-Creator WiFi features comprehensive cooling with large VRM and chipset heatsinks that strike the right balance between surface area and mass. Integrated premium components and multiple fan headers are also vital design elements that provide the best foundation for content creation systems.

ProArt Z690-Creator WiFi motherboard features compressive cooling design. ProArt Z690-Creator WiFi motherboard features compressive cooling design.
  1. VRM Heatsinks

    Two VRM heatsinks are placed above the MOSFETs and chokes to further increase surface area for heat dissipation.

  2. M.2 Heatsinks

    Three dedicated heatsinks keep the four M.2 SSDs at the optimal operating temperature for consistent performance and reliability.

  3. Chipset Heatsink

    A dedicated chipset heatsink draws heat away to help ensure that temperatures stay within an optimal range.

Perfect for Content Creation

ProArt exclusive software utilities deliver intuitive system monitoring and networking enhancements that enable a smoother workflow.

Advanced security management functions from ASUS Control Center Express protects the system and confidential data.

Learn more about ASUS Control Center Express >
  • ProArt Z690-Creator WiFi motherboard makes it easy to manage USB ports.
    USB Port Management

    Enable or disable the USB port or set it to Read Only to prevent data leaks.

  • ProArt Z690-Creator WiFi motherboard includes a software blacklist.
    Software Blacklist

    For added security, a software blacklist is available to help prevent the use of high-risk applications.

  • ProArt Z690-Creator WiFi motherboard can prevent unauthorized changes to system configuration.
    Registry Editor On/Off

    Remotely disable the Registry Editor on client devices to prevent unauthorised changes to system configurations.

Trusted Stability

ProArt Z690-Creator WiFi is engineered and rigorously tested to offer superior quality, stability and compatibility to ensure that it empowers creativity for years to come.

24/7
Reliability

  • 168 hr

    Durability Test

  • 45°C

    Temperature

  • 80%

    Relative Humidity

Extensive Compatibility Validation

  • 520+

    DDR5 / DDR4 Compatibility

  • 1000+

    Compatible Devices

  • 800+

    Validation Hours

Free 3 Months of Adobe Creative Cloud

Get complimentary membership with the purchase of selected ASUS products.* (Up to a $238.47 value)

Free 3 Months of Adobe Creative Cloud
20+ Adobe apps

Industry-leading apps including Photoshop, Illustrator, InDesign, Spark and XD.

Adobe Fonts

Access thousands of fonts right within your Creative Cloud apps.

Behance

Find inspiration in the world’s largest creative community.

Creative Cloud Libraries

Your team can share assets across their apps and devices, so everyone’s in sync.

1TB of cloud storage per user

Extra storage makes it easier for your team to share and manage creative assets.

* Terms and conditions apply. For more details, please read the event page.
