[NUC] Multiple Displays for  NUC Products NUC13RNG and NUC13SBB

This guide provides the most common multiple display configuration options for the Products NUC13RNG and NUC13SBB with 3 graphic ports:

  • One HDMI 2.1 port.
  • Two Thunderbolt™ 4 ports.
Note
  • NUC13RNGi[x] and NUC13SBBi[x] models with a "F" suffix (NUC13SBBi9F, NUC13SBBi7F, NUC13SBBi5F) don't have integrated graphics.
  • This article doesn't cover multiple display configurations for the discrete graphics card

























Before You Begin
We recommend you first update your NUC to the latest BIOS and graphics driver, using Driver & Support Assistant



Click or the topic for details:

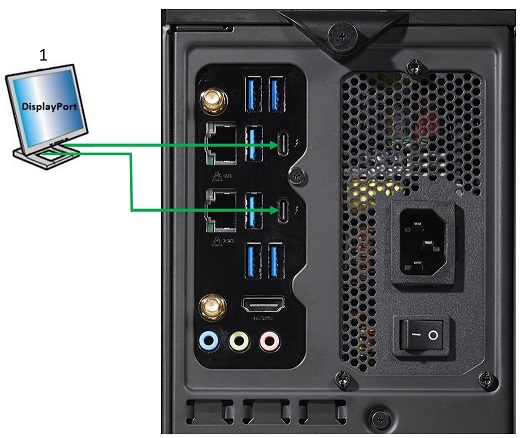

Single Display with 8K Resolution

DisplayNUC portTV/monitor portMaximum supported resolution
1Type C + Type CDisplayPort7680x4320 at 60Hz, 30 bpp
Two Displays

Two Displays (Option 1)

Two Displays Option 1

DisplayNUC portTV/monitor portMaximum supported resolution
1Type CDisplayPort5120x3200 at 60Hz, 24 bpp
2HDMIHDMI4096x2304 at 60Hz, 24bpp

Two Displays (Option 2)

Two Displays Option 2

DisplayNUC portTV/monitor portMaximum supported resolution
1Type CDisplayPort5120x3200 at 60Hz, 24 bpp
2Type CDisplayPort5120x3200 at 60Hz, 24 bpp
Three Displays

Three Displays

DisplayNUC portTV/monitor portMaximum supported resolution
1Type CDisplayPort5120x3200 at 60Hz, 24 bpp
2Type CDisplayPort5120x3200 at 60Hz, 24 bpp
3HDMIHDMI4096x2304 at 60Hz, 24 bpp
Four Displays

Four Displays (Option 1)

Four Displays Option 1

DisplayNUC portTV/monitor portMaximum supported resolution
1NADaisy-chain: from DisplayPort OUT on the first monitor to
the DisplayPort IN on the second monitor		4096x2304 at 60Hz, 24bpp
2Type CDisplayPort4096x2304 at 60Hz, 24bpp
3Type CDisplayPort5120x3200 at 60Hz, 24bpp
4HDMIHDMI5120x3200 at 60Hz, 24bpp

Four Displays (Option 2)

Four Displays Option 2

DisplayNUC portTV/monitor portMaximum supported resolution
1NADaisy-chain: from DisplayPort OUT on the first monitor to
the DisplayPort IN on the second monitor		34096x2304 at 60Hz, 24bpp
2Type CDisplayPort4096x2304 at 60Hz, 24bpp
3NADaisy-chain: from DisplayPort OUT on the first monitor to
the DisplayPort IN on the second monitor		4096x2304 at 60Hz, 24bpp
4Type CDisplayPort4096x2304 at 60Hz, 24bpp
