24-Port Rack-mountable Gigabit Switch

    Unmanaged Layer 2 Wired Switch
    • Simple to use
    • QoS for 4 Queues
    • Gigabit Ethernet
    • Jumbo Frame up to 9.6KB
    • Green Network - power-saving up to 44%
      Product Image


      • 24 RJ-45 10/100/1000 Mbps Ethernet ports with Auto MDI/MDIX
      • Complies with IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-TX), IEEE 802.3ab (1000Base-T) standards
      • Auto MDI/MDI-X function
      • Auto negotiation of speed (10/100/1000Mbps), and duplex mode. *Note that 1000Mbps supports only full duplex mode
      • Supports IEEE 802.3x flow control for Full Duplex mode
      • Back pressure support for Half Duplex mode
      • Up to 2Gbps in full-duplex mode
      • Supports IEEE 802.1p QoS Prioritization: 4 Queues
      • Supports Store & Forward architecture
      • 4K MAC Address with automatic address learning and aging
      • Supports 9.6KB Jumbo Frame

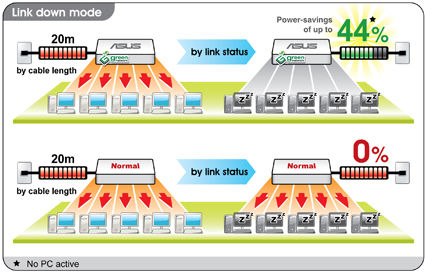

      Green Network Technology

      Link down mode & Cable length detection – power saving of up to 44%. Through Green Network feature, the GX-D1241 switches can detect when PCs is turned off and will respond accordingly by powering down into standby mode and power consumption can be significantly reduced.

      The switches send full power to cables regardless of the actual length. Through Asus Green Network Technology (GNT), the switches are able to detect the cable's length and adjust the power accordingly. By comparing the 20m cable lengths used, only need 18.9W power consumption.

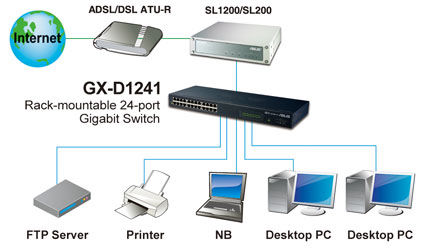

      GX Series Unmanaged Switch SOHO/SMB Solution Architectures
